European Single Conductors:

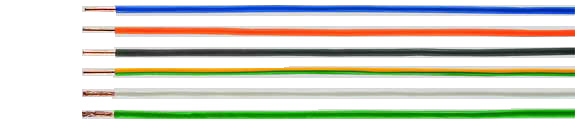

H05G-U / -K / H07G-U / -R / -K

Single Core, Heat Resistant

Hi-Tech Controls, Inc, European & Domestic cable

SiF / SiFF silicone single conductors, halogen-free, RoHS Compliant, RoHS Approved, Hi-Tech Controls, European  , Heat Resistant / Compensating Cables
H05G-U (single-wire)
European Part-No. Description & Cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
541__ H05G-U 0.5 1.9-2.4 4.8 10.0 20
542__ H05G-U .075 2.1-2.6 7.2 15.0 18
543__ H05G-U 1 2.2-2.8 9.6 16.0 17
H05G-K (fine-wire)
European Part-No. Description & Cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
550__ H05G-K 0.5 2.1-2.6 4.8 13.0 20
551__ H05G-K 0.75 2.2-2.8 7.2 16.0 18
552__ H05G-K 1 2.4-2.9 9.6 22.0 17
H07G-U (single-wire)
European Part-No. Description & Cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
544__ H07G-U 1.5 2.8-3.5 14.4 24.0 16
545__ H07G-U 2.5 34.-4.3 24.0 35.0 14
546__ H07G-U 4.0-5.0 38.0 53.0 12
H07G-K (fine-wire)
European Part-No. Description & Cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
553__ H07G-K 1.5 3.0-3.7 14.4 24.0 16
554__ H07G-K 2.5 3.6-4.5 24.0 42.0 14
555__ H07G-K 4 4.3-5.4 38.0 61.0 12
556__ H07G-K 6 4.8-6.0 58.0 78.0 10
557__ H07G-K 10 6.0-7.6 96.0 130.0 8
558__ H07G-K 16 7.1-8.9 154.0 212.0 6
559__ H07G-K 25 8.8-11.0 240.0 323.0 4
560__ H07G-K 35 10.0-12.6 336.0 422.0 2
561__ H07G-K 50 11.9-14.9 480.0 527.0 1
562__ H07G-K 70 13.6-17.0 672.0 726.0 2/0
563__ H07G-K 95 15.5-19.3 912.0 937.0 3/0
564__ H07G-K 120 17.1-21.4 1152.0 1192.0 4/0
H07G-R (multi-wire)
European Part-No. Description & Cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
547__ H07G-R 6 4.7-5.9 58.0 72.0 10
548__ H07G-R 10 6.0-7.4 96.0 123.0 8
549__ H07G-R 16 6.8-8.5 154.0 184.0 6
Technical Data European
  • Heat-resistant (+120C) rubber-insulated cable to DIN VDE 0282 part 7 and HD 22.7 S2
  • Operating Temperature
    Max. permissible
    at conductor +110°C
  • Lowest Ambient Temperatures
    flexing up to -25°C
    fixed installation up to -40°C
  • Nominal Voltage
    H05G U0/U 300/500 V
    H07G U0/U 450/750 V

  • Test Voltage
    H05G 2000 V
    H05G 2500 V

  • Minimum Bending Radius
    approx. 7x cable Ø
Approvals
RoHSCE
Cable Construction
  • Bare copper conductor to DIN VDE 0295 and IEC 60228, BS 6360 and HD 383
    single wire, solid: class 1
    multi stranded wires: class 2
    fine wires: class 5
  • Rubber conductor insulation, compound type EI3 (EVA) to DIN VDE 0282 part 7 (≙ DIN VDE 0207 part 20)
  • Separating layer over bare conductor (for tinned conductor is optional)
  • Core identification to DIN VDE 0293
  • Standard color black
Application
For inside wiring of switch boards and distributors as well as of operating parts such as in or on lights, for the connection of electric heaters with a nominal voltage up to 1000 V alternating voltage or up to 750 V direct voltage against ground.
The cables are all allowed for laying in tubes, on and under the plaster.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Advantages: High ignition or flash point
  • Resistant to high molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen
  • Halogen-free according to DIN VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Behavior in fire no flame propagation test according to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding +90°C/+194°F.
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Please quote the individual part-no. in your order with the codes for conductor colors of the key-positions. 00 = green; 01 = black; 02 = blue; 03 = brown;
    04 = gray; 05 = orange; 06 = pink; 07 = turquoise; 08 = white; 09 = violet;
    10 = yellow; 11 = green-yellow
Cable Accessories
  • Coming Soon!
