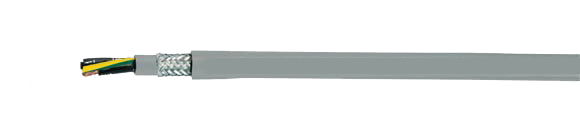

Control Cable: Y�-C-PUR�-JZ

Tear and Coolant Resistant, Copper-Shielded, With Inner Jacket, Increased Oil Resistance, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , Y�-C-PUR�-JZ, PUR Cables for Humid Areas, EMC (EMI Preferred Type), Tear resistant, Coolant resistant, Cu (Shielded), without Inner Jacket, Control Cable
AWG Selection
20
20
18
18
17
17
16
16
14
14 12 12 10 10 8 8
6
6
4
4
2
2
1
1
2/0
2/0
3/0
3/0
4/0
4/0
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
21400 Y�-C-PUR�-OZ 2X0.5  6.6 41.0 68.0 20
21401 Y�-C-PUR�-JZ 3G0.5 7.1 45.0 84.0 20
21402 Y�-C-PUR�-JZ 4G0.5 7.6 54.0 95.0 20
21403 Y�-C-PUR�-JZ 5G0.5 8.2 52.0 107.0 20
21405 Y�-C-PUR�-JZ 7G0.5 9.4 69.0 135.0 20
21407 Y�-C-PUR�-JZ 10G0.5 11.2 107.0 170.0 20
21408 Y�-C-PUR�-JZ 12G0.5 11.3 137.0 195.0 20
21409 Y�-C-PUR�-JZ 14G0.5 11.9 142.0 222.0 20
21411 Y�-C-PUR�-JZ 18G0.5 12.9 156.0 278.0 20
21413 Y�-C-PUR�-JZ 21G0.5 14.7 189.0 330.0 20
21415 Y�-C-PUR�-JZ 25G0.5 15.9 250.0 406.0 20
21416 Y�-C-PUR�-JZ 30G0.5 16.2 297.0 520.0 20
21419 Y�-C-PUR�-JZ 36G0.5 17.8 320.0 587.0 20
21420 Y�-C-PUR�-JZ 40G0.5 19.1 345.0 655.0 20
21421 Y�-C-PUR�-JZ 50G0.5 20.9 407.0 742.0 20
21425 Y�-C-PUR�-OZ 2X0.75  7.2 46.0 88.0 18
21426 Y�-C-PUR�-JZ 3G0.75 7.7 57.0 98.0 18
21427 Y�-C-PUR�-JZ 4G0.75 8.2 63.0 112.0 18
21428 Y�-C-PUR�-JZ 5G0.75 8.8 76.0 130.0 18
21430 Y�-C-PUR�-JZ 7G0.75 10.1 100.0 185.0 18
21432 Y�-C-PUR�-JZ 10G0.75 12.2 140.0 270.0 18
21433 Y�-C-PUR�-JZ 12G0.75 12.3 175.0 294.0 18
21434 Y�-C-PUR�-JZ 14G0.75 13.0 190.0 317.0 18
21436 Y�-C-PUR�-JZ 18G0.75 14.6 240.0 357.0 18
21438 Y�-C-PUR�-JZ 21G0.75 16.0 274.0 455.0 18
21440 Y�-C-PUR�-JZ 25G0.75 17.8 306.0 510.0 18
21443 Y�-C-PUR�-JZ 32G0.75 18.7 349.0 688.0 18
21446 Y�-C-PUR�-JZ 41G0.75 21.5 403.0 951.0 18
21447 Y�-C-PUR�-JZ 50G0.75 23.1 470.0 1100.0 18
21451 Y�-C-PUR�-OZ 2X1   7.7 54.0 98.0 17
21452 Y�-C-PUR�-JZ 3G1 8.0 64.0 102.0 17
21453 Y�-C-PUR�-JZ 4G1 8.6 76.0 145.0 17
21454 Y�-C-PUR�-JZ 5G1 9.1 89.0 170.0 17
21456 Y�-C-PUR�-JZ 7G1 11.0 114.0 220.0 17
21457 Y�-C-PUR�-JZ 8G1 11.6 130.0 270.0 17
21458 Y�-C-PUR�-JZ 10G1 12.6 156.0 330.0 17
21459 Y�-C-PUR�-JZ 12G1 13.1 186.0 350.0 17
21460 Y�-C-PUR�-JZ 14G1 13.8 198.0 402.0 17
21461 Y�-C-PUR�-JZ 16G1 14.6 214.0 420.0 17
21462 Y�-C-PUR�-JZ 18G1 15.6 284.0 515.0 17
21463 Y�-C-PUR�-JZ 20G1 16.4 325.0 545.0 17
21465 Y�-C-PUR�-JZ 25G1 18.9 387.0 690.0 17
21468 Y�-C-PUR�-JZ 34G1 20.9 500.0 912.0 17
21469 Y�-C-PUR�-JZ 41G1 22.3 578.0 1070.0 17
21470 Y�-C-PUR�-JZ 50G1 24.6 681.0 1318.0 17
21474 Y�-C-PUR�-OZ 2X1.5  8.2 64.0 130.0 16
21475 Y�-C-PUR�-JZ 3G1.5 8.6 82.0

152.0

16
21476 Y�-C-PUR�-JZ 4G1.5 9.3 99.0 167.0 16
21477 Y�-C-PUR�-JZ 5G1.5 10.4 123.0 203.0 16
21479 Y�-C-PUR�-JZ 7G1.5 12.0 148.0 305.0 16
21480 Y�-C-PUR�-JZ 8G1.5 12.9 172.0 335.0 16
21481 Y�-C-PUR�-JZ 10G1.5 14.2 198.0 422.0 16
21482 Y�-C-PUR�-JZ 12G1.5 14.6 274.0 435.0 16
21483 Y�-C-PUR�-JZ 14G1.5 15.4 294.0 480.0 16
21484 Y�-C-PUR�-JZ 16G1.5 16.1 318.0 525.0 16
21485 Y�-C-PUR�-JZ 18G1.5 17.2 386.0 642.0 16
21487 Y�-C-PUR�-JZ 21G1.5 19.0 447.0 722.0 16
21489 Y�-C-PUR�-JZ 25G1.5 20.8 531.0 803.0 16
21492 Y�-C-PUR�-JZ 34X1.5 23.2 671.0 1068.0 16
21494 Y�-C-PUR�-JZ 42X1.5 26.1 890.0 1370.0 16
21495 Y�-C-PUR�-JZ 50X1.5 27.4 997.0 1677.0 16
21499 Y�-C-PUR�-OZ 2X2.5  9.8 110.0 180.0 14
21500 Y�-C-PUR�-JZ 3X2.5 10.7 148.0 215.0 14
21501 Y�-C-PUR�-JZ 4X2.5 11.4 169.0 268.0 14
21502 Y�-C-PUR�-JZ 5X2.5 12.5 220.0 349.0 14
21503 Y�-C-PUR�-JZ 7X2.5 14.9 284.0 406.0 14
21504 Y�-C-PUR�-JZ 12X2.5 18.4 470.0 720.0 14
21507 Y�-C-PUR�-OZ 2X4  12.0 124.0 300.0 12
21508 Y�-C-PUR�-JZ 3X4 12.6 178.0 340.0 12
21509 Y�-C-PUR�-JZ 4X4 14.2 234.0 408.0 12
21510 Y�-C-PUR�-JZ 5X4 15.6 384.0 504.0 12
21511 Y�-C-PUR�-JZ 7X4 17.1 321.0 640.0 12
21512 Y�-C-PUR�-JZ 3X6   14.8 245.0 453.0 10
21513 Y�-C-PUR�-JZ 4X6 16.1 316.0 560.0 10
21514 Y�-C-PUR�-JZ 5X6 18.0 442.0 700.0 10
21515 Y�-C-PUR�-JZ 7X6 19.6 530.0 905.0 10
21516 Y�-C-PUR�-JZ 3X10  18.2 367.0 750.0 8
21517 Y�-C-PUR�-JZ 4X10 20.3 549.0 1023.0 8
21518 Y�-C-PUR�-JZ 5X10 22.4 604.0 1114.0 8
21519 Y�-C-PUR�-JZ 7X10 24.7 820.0 1505.0 8
21521 Y�-C-PUR�-JZ 4X16  23.4 807.0 1385.0 6
21522 Y�-C-PUR�-JZ 5X16 26.0 940.0 1550.0 6
21524 Y�-C-PUR�-JZ 4X25  29.7 1169.0 1894.0 4
21525 Y�-C-PUR�-JZ 5X25 33.0 1840.0 2272.0 4
21526 Y�-C-PUR�-JZ 4X35  33.9 1680.0 2395.0 2
21527 Y�-C-PUR�-JZ 5X35 37.5 2020.0 2890.0 2
21528 Y�-C-PUR�-JZ 4X50  39.0 2370.0 3312.0 1
21529 Y�-C-PUR�-JZ 5X50 43.4 2880.0 4100.0 1
21530 Y�-C-PUR�-JZ 4X70  46.6 3257.0 4605.0 2/0
21531 Y�-C-PUR�-JZ 5X70 51.1 4032.0 5710.0 2/0
21532 Y�-C-PUR�-JZ 4X95

50.9

4060.0 6055.0 3/0
21533 Y�-C-PUR�-JZ 5X95 55.9 5244.0 7520.0 3/0
21534 Y�-C-PUR�-JZ 4X120  55.5 5231.0 7318.0 4/0
Technical Data
  • Special polyurethane-jacketed multi conductor cable on the basis of E DIN VDE 0245 part 202/03.92 up to 1.5 mm�, on the basis of E DIN VDE 0281 part 13 as of 2.5 mm�
  • Temperature Range
    Flexing
    -5�C to +80�C (+23�F to +176�F)
    Fixed Installation
    -40�C to +80�C (-40�F to +176�F)
  • Nominal Voltage U0/U 300/500 V
    As of cross section 4 mm�
    U0/U 450/750 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Minimum Bending Radius
    Flexing 10x cable �
    Fixed Installation 5x cable �
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE PCT VDE
Cable Construction
  • Plain copper conductor, finely stranded according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Oil resistant PVC conductor insulation TI2, adapted to DIN VDE 0281 part 1, for better sliding abilities
  • Conductors black with sequential numbering imprinted in white according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Oil resistant PVC inner jacket
  • Shield of tinned copper braid, coverage approx. 85%
  • Fleece separator, ensures good dismantling ability
  • Special full-polyurethane outer jacket TMPU, to DIN VDE 0282 part 10, appendix A
  • Jacket color: Gray (RAL 7001)
Application

Extremely robust control cable characterized by high abrasion and notch resistance properties. Used for critical areas in such applications as machinery, tooling and plant construction, in rolling mills and steel works particularily because of the resistance to mineral oils and to coolant emulsions. The mechanical strength of the cable is increased by the additional oil-resistant inner jacket. The ideal interference-protected control cable for such applications as given above. Suitable for outdoor installation.
These shielded cables are particularly suitable for the interference-free transmission in instrumentation and control engineering applications.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Resistant to: UV-radiation, oxygen, ozone and hydrolysis, microbes
  • Self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    X = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent sizes. The actual cross-section is in mm2.
  • Unshielded Type: PUR-JZ
