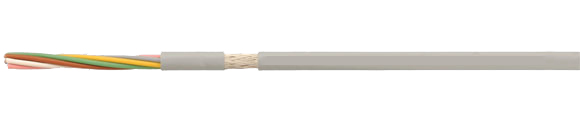

Control Cable: NANOFLEX® HC TRONIC-C

EMC, Flexible, Color Code to DIN 47100, Shielded, Meter Marking

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European   JZ-500 PUR, Tear and Coolant Resistant, PUR Control Cable, PUR Cable for Humid Areas, Number Coded, Control Cable
Part-No. Description & No. Conductors x cross-sec. mm2 Outer Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
27235 NANOFLEX® HC TRONIC-C 1X0.14 2.5 6.0 16.0
27236 NANOFLEX® HC TRONIC-C 2X0.14 3.7 12.0 20.0
27237 NANOFLEX® HC TRONIC-C 3X0.14 3.9 13.0 27.0
27238 NANOFLEX® HC TRONIC-C 4X0.14 4.1 15.0 32.0
27239 NANOFLEX® HC TRONIC-C 5X0.14 4.4 16.0 37.0
27240 NANOFLEX® HC TRONIC-C 6X0.14 4.9 18.0 42.0
27241 NANOFLEX® HC TRONIC-C 7X0.14 4.9 19.0 48.0
27242 NANOFLEX® HC TRONIC-C 8X0.14 5.2 21.0 55.0
27243 NANOFLEX® HC TRONIC-C 10X0.14 6.2 29.0 65.0
27244 NANOFLEX® HC TRONIC-C 12X0.14 6.2 31.0 77.0
27245 NANOFLEX® HC TRONIC-C 14X0.14 6.6 32.0 79.0
27246 NANOFLEX® HC TRONIC-C 16X0.14 6.9 43.0 89.0
27247 NANOFLEX® HC TRONIC-C 18X0.14 7.2 51.0 103.0
27248 NANOFLEX® HC TRONIC-C 20X0.14 7.7 55.0 116.0
27249 NANOFLEX® HC TRONIC-C 21X0.14 7.9 56.0 120.0
27250 NANOFLEX® HC TRONIC-C 24X0.14 8.3 62.0 131.0
27251 NANOFLEX® HC TRONIC-C 25X0.14 8.5 61.0 136.0
27252 NANOFLEX® HC TRONIC-C 1X0.25 2.9 7.0 27.0
27253 NANOFLEX® HC TRONIC-C 2X0.25 4.2 16.0 31.0
27254 NANOFLEX® HC TRONIC-C 3X0.25 4.3 19.0 36.0
27255 NANOFLEX® HC TRONIC-C 4X0.25 4.7 22.0 40.0
27256 NANOFLEX® HC TRONIC-C 5X0.25 5.3 27.0 51.0
27257 NANOFLEX® HC TRONIC-C 6X0.25 5.7 32.0 58.0
27258 NANOFLEX® HC TRONIC-C 7X0.25 5.7 35.0 64.0
27259 NANOFLEX® HC TRONIC-C 8X0.25 6.6 42.0 82.0
27260 NANOFLEX® HC TRONIC-C 10X0.25 7.2 50.0 85.0
27261 NANOFLEX® HC TRONIC-C 12X0.25 7.3 58.0 90.0
27262 NANOFLEX® HC TRONIC-C 14X0.25 7.9 62.0 144.0
27263 NANOFLEX® HC TRONIC-C 16X0.25 8.3 67.0 110.0
27264 NANOFLEX® HC TRONIC-C 18X0.25 8.9 78.0 142.0
27265 NANOFLEX® HC TRONIC-C 19X0.25 9.1 79.0 146.0
27266 NANOFLEX® HC TRONIC-C 20X0.25 9.4 88.0 152.0
27267 NANOFLEX® HC TRONIC-C 21X0.25 9.4 91.0 150.0
27268 NANOFLEX® HC TRONIC-C 24X0.25 10.0 96.0 163.0
27269 NANOFLEX® HC TRONIC-C 25X0.25 10.1 99.0 169.0
27270 NANOFLEX® HC TRONIC-C 1X0.34 3.2 13.0 24.0
27271 NANOFLEX® HC TRONIC-C 2X0.34 4.8 18.0 30.0
27272 NANOFLEX® HC TRONIC-C 3X0.34 5.2 22.0 37.0
27273 NANOFLEX® HC TRONIC-C 4X0.34 5.5 28.0 48.0
27274 NANOFLEX® HC TRONIC-C 5X0.34 6.0 31.0 54.0
27275 NANOFLEX® HC TRONIC-C 6X0.34 6.7 45.0 61.0
27276 NANOFLEX® HC TRONIC-C 7X0.34 6.7 51.0 67.0
27277 NANOFLEX® HC TRONIC-C 8X0.34 7.8 54.0 81.0
27278 NANOFLEX® HC TRONIC-C 10X0.34 8.4 65.0 103.0
27279 NANOFLEX® HC TRONIC-C 12X0.34 8.5 70.0 110.0
27280 NANOFLEX® HC TRONIC-C 14X0.34 9.0 81.0 153.0
27281 NANOFLEX® HC TRONIC-C 16X0.34 9.4 88.0 159.0
27282 NANOFLEX® HC TRONIC-C 18X0.34 9.8 103.0 172.0
27283 NANOFLEX® HC TRONIC-C 19X0.34 10.1 106.0 181.0
27284 NANOFLEX® HC TRONIC-C 20X0.34 10.1 112.0 191.0
27285 NANOFLEX® HC TRONIC-C 21X0.34

10.7

116.0 199.0
27286 NANOFLEX® HC TRONIC-C 24X0.34 10.7 129.0 229.0
27287 NANOFLEX® HC TRONIC-C 25X0.34 12.0 120.0 241.0
27288 NANOFLEX® HC TRONIC-C 1X0.5 3.4 15.0 40.0
27289 NANOFLEX® HC TRONIC-C 2X0.5 5.3 29.0 45.0
27290 NANOFLEX® HC TRONIC-C 3X0.5 5.6 39.0 55.0
27291 NANOFLEX® HC TRONIC-C 4X0.5 6.0 46.0 61.0
27292 NANOFLEX® HC TRONIC-C 5X0.5 6.7 52.0 76.0
27293 NANOFLEX® HC TRONIC-C 6X0.5 7.3 66.0 89.0
27294 NANOFLEX® HC TRONIC-C 7X0.5 7.3 68.0 98.0
27295 NANOFLEX® HC TRONIC-C 8X0.5 8.5 80.0 117.0
27296 NANOFLEX® HC TRONIC-C 10X0.5 9.2 93.0 135.0
27297 NANOFLEX® HC TRONIC-C 12X0.5 9.5 117.0 157.0
27298 NANOFLEX® HC TRONIC-C 14X0.5 10.0 122.0 190.0
27299 NANOFLEX® HC TRONIC-C 16X0.5 10.6 129.0 210.0
27300 NANOFLEX® HC TRONIC-C 18X0.5 10.7 152.0 217.0
27301 NANOFLEX® HC TRONIC-C 19X0.5 11.2 156.0 246.0
27302 NANOFLEX® HC TRONIC-C 20X0.5 11.9 173.0 275.0
27303 NANOFLEX® HC TRONIC-C 24X0.5 12.6 256.0 337.0
27304 NANOFLEX® HC TRONIC-C 25X0.5 12.7 250.0 351.0
27305 NANOFLEX® HC TRONIC-C 1X0.75 3.8 19.0 41.0
27306 NANOFLEX® HC TRONIC-C 1X0.75 6.0 38.0 59.0
27307 NANOFLEX® HC TRONIC-C 1X0.75 6.2 50.0 66.0
27308 NANOFLEX® HC TRONIC-C 1X0.75 6.7 57.0 77.0
27309 NANOFLEX® HC TRONIC-C 1X0.75 7.3 70.0 93.0
27310 NANOFLEX® HC TRONIC-C 1X0.75 8.1 87.0 113.0
27311 NANOFLEX® HC TRONIC-C 1X0.75 8.2 96.0 130.0
27312 NANOFLEX® HC TRONIC-C 1X0.75 9.0 110.0 145.0
27313 NANOFLEX® HC TRONIC-C 1X0.75 10.3 140.0 180.0
27314 NANOFLEX® HC TRONIC-C 1X0.75 10.4 151.0 202.0
27315 NANOFLEX® HC TRONIC-C 1X0.75 11.2 167.0 225.0
27316 NANOFLEX® HC TRONIC-C 1X0.75 11.8 183.0 275.0
27317 NANOFLEX® HC TRONIC-C 1X0.75 12.6 207.0 292.0
27318 NANOFLEX® HC TRONIC-C 1X0.75 12.6 221.0 322.0
27319 NANOFLEX® HC TRONIC-C 1X0.75 13.1 238.0 362.0
27320 NANOFLEX® HC TRONIC-C 1X0.75 14.1 270.0 435.0
27321 NANOFLEX® HC TRONIC-C 1X0.75 14.3 278.0 415.0
Technical Data
  • Special polyurethane data cables for electronic control according to DIN VDE 0245, 0812
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Peak Operating Voltage
    (not for purposes of high current and power installation)
    0.14 mm2 = 350 V
    > = 0.25 mm2 = 500 V
  • Test Voltage
    Conductor / Conductor 1200 V
    Conductor / Jacket 800 V
  • Breakdown Voltage min. 2400 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Operating Capacity
    (approx. value) at 800 Hz
    Conductor/Conductor-0.14 mm2=120pF/m
    Conductor/Conductor-0.25 mm2=150pF/m
    Conductor/Jacket-0.14 mm2=240pF/m
    Conductor/Jacket-0.25 mm2=270pF/m
  • Inductance approx. 0.65 mH/km
  • Impedance approx. 78 Ohm
  • Coupling Resistance
    Max. 250 Ohm/km
  • Minimum Bending Radius
    Flexing 10x cable Ř
    Fixed Installation 5x cable Ř
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, fine wire stranded from 0.5 mm2 according to DIN VDE 0295 cl. 5 or 0245 or IEC 60228
  • Wire make-up for:
    0.14 mm2 18x0.1 mm
    0.25 mm2 14x0.15 mm
    0.34 mm2 7x0.25 mm
  • Special PVC conductor insulation T12 according to DIN VDE 0281 Part 1
  • Core identification in accordance with DIN 47100, but without color repetition
  • Conductors stranded in layers with optimal lay-lengths
  • Foil wrapping
  • Drain strainded wire, tinned copper
  • Tinned copper braided shielding, coverage approx. 85%
  • Outer jacket made of special full polyurethane TMPU according to DIN EN 50363-10-2
  • Jacket color - Light Gray (RAL 7035)
  • With meter marking
Application

Special PUR cable for the food and beverage industry. Outer jacket with antimicrobial properties increases process reliability in all applications in which food and beverages are processed, unpacked and unsealed, e.g. processing of dairy products, meat, fish, production of convenience foods, brewery and beverage industry.
EMI = Electromagnetic compatability. To optimise EMI characteristics, we recommend a large contact area for the copper braiding around the entire circumference on both ends.
CE Approval = The product is conformed with the EG Low-Voltage Directive 2006/95/EG

Properties
  • Resistant to UV-Radiation, oxygen, ozone, hydrolysis and microbes
  • Self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (conforms to DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • Good cleaning properties
  • Resistant to all standard detergents
Note
  • Unshielded type: NANOFLEX® HC 500
  • Hygenic Cable
Cable Accessories
  • Coming Soon!
