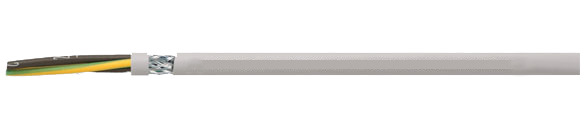

Control Cable: NANOFLEX® HC 500-C

EMC, Cut-Resistant, Shielded, No Inner Jacket, Meter Marking

Hi-Tech Controls, Inc, European & Domestic cable

Nanoflex HC 500-C, Nanoflex HC 500 C, Nanoflex, Hygenic Cable, 27105, 27106, 27107, 27108, 27109, 27110, 27111, 27112, 27113, 27114, 27115, 27116, 27117, 27118, 27119, 27120, 27121, 27122, 27123, 27124, 27125, 27126, 27127, 27128, 27129, 27130, 27131, 27132, 27133, 27134, 27135, 27136, 27137, 27138, 27139, 27140, 27141, 27142, 27143, 27144, 27145, 27146, 27147, 27148, 27149, 27150, 27151, 27152, 27153, 27154, 27155, 27156, 27157, 27158, 27159, 27160, 27161, 27162, 27163, Hi-Tech Controls, Hi Tech Controls,

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
27105 NANOFLEX® HC 500-C 2X0.5 5.3 35.0 47.0
27106 NANOFLEX® HC 500-C 3X0.5 5.6 42.0 57.0
27107 NANOFLEX® HC 500-C 3G0.5 5.6 42.0 57.0
27108 NANOFLEX® HC 500-C 4G0.5 6.2 47.0 60.0
27109 NANOFLEX® HC 500-C 4X0.5 6.2 47.0 60.0
27110 NANOFLEX® HC 500-C 5X0.5 6.5 56.0 75.0
27111 NANOFLEX® HC 500-C 5G0.5 6.5 56.0 75.0
27112 NANOFLEX® HC 500-C 7G0.5 7.5 69.0 97.0
27113 NANOFLEX® HC 500-C 7X0.5 7.5 69.0 97.0
27114 NANOFLEX® HC 500-C 10G0.5 9.0 94.0 133.0
27115 NANOFLEX® HC 500-C 12G0.5 9.2 108.0 158.0
27116 NANOFLEX® HC 500-C 18G0.5 10.9 145.0 218.0
27117 NANOFLEX® HC 500-C 25G0.5 13.3 240.0 315.0
27118 NANOFLEX® HC 500-C 2X0.75 5.8 40.0 60.0
27119 NANOFLEX® HC 500-C 3X0.75 6.1 52.0 67.0
27120 NANOFLEX® HC 500-C 3G0.75 6.1 52.0 67.0
27121 NANOFLEX® HC 500-C 4G0.75 6.5 60.0 76.0
27122 NANOFLEX® HC 500-C 4X0.75 6.5 60.0 76.0
27123 NANOFLEX® HC 500-C 5X0.75 7.1 71.0 92.0
27124 NANOFLEX® HC 500-C 5G0.75 7.1 71.0 92.0
27125 NANOFLEX® HC 500-C 7G0.75 8.3 91.0 131.0
27126 NANOFLEX® HC 500-C 7X0.75 8.3 91.0 131.0
27127 NANOFLEX® HC 500-C 10G0.75 10.1 137.0 180.0
27128 NANOFLEX® HC 500-C 12G0.75 10.3 142.0 204.0
27129 NANOFLEX® HC 500-C 18G0.75 12.1 212.0 290.0
27130 NANOFLEX® HC 500-C 25G0.75 14.9 281.0 413.0
27131 NANOFLEX® HC 500-C 2X1 6.1 50.0 66.0
27132 NANOFLEX® HC 500-C 3G1 6.3 60.0 82.0
27133 NANOFLEX® HC 500-C 3X1 6.3 60.0 82.0
27134 NANOFLEX® HC 500-C 4X1 6.9 71.0 100.0
27135 NANOFLEX® HC 500-C 4G1 6.9 71.0 100.0
27136 NANOFLEX® HC 500-C 5X1 7.5 88.0 128.0
27137 NANOFLEX® HC 500-C 5G1 7.5 88.0 128.0
27138 NANOFLEX® HC 500-C 7X1 8.9 111.0 157.0
27139 NANOFLEX® HC 500-C 7G1 8.9 111.0 157.0
27140 NANOFLEX® HC 500-C 10G1 10.7 150.0 230.0
27141 NANOFLEX® HC 500-C 12G1 10.9 184.0 262.0
27142 NANOFLEX® HC 500-C 18G1 13.0 260.0 381.0
27143 NANOFLEX® HC 500-C 25G1 15.9 349.0 535.0
27144 NANOFLEX® HC 500-C 2X1.5 6.6 63.0 87.0
27145 NANOFLEX® HC 500-C 3X1.5 6.9 80.0 102.0
27146 NANOFLEX® HC 500-C 3G1.5 6.9 80.0 102.0
27147 NANOFLEX® HC 500-C 4X1.5 7.5 97.0 127.0
27148 NANOFLEX® HC 500-C 4G1.5 7.5 97.0 127.0
27149 NANOFLEX® HC 500-C 5X1.5 8.4 119.0 159.0
27150 NANOFLEX® HC 500-C 5G1.5 8.4 119.0 159.0
27151 NANOFLEX® HC 500-C 7X1.5 10.0 147.0 207.0
27152 NANOFLEX® HC 500-C 7G1.5 10.0 147.0 207.0
27153 NANOFLEX® HC 500-C 12G1.5 12.1 267.0 340.0
27154 NANOFLEX® HC 500-C 18G1.5 14.6 374.0 480.0
27155 NANOFLEX® HC 500-C 25G1.5 17.9 526.0 704.0
27156 NANOFLEX® HC 500-C 2X2.5 8.2 96.0 131.0
27157 NANOFLEX® HC 500-C 3G2.5 8.6 144.0 168.0
27158 NANOFLEX® HC 500-C 4G2.5 9.6 148.0 194.0
27159 NANOFLEX® HC 500-C 5G2.5 10.6 181.0 222.0
27160 NANOFLEX® HC 500-C 7G2.5 12.6 255.0 345.0
27161 NANOFLEX® HC 500-C 12G2.5 15.5 441.0 570.0
27162 NANOFLEX® HC 500-C 4G4 11.0 230.0 310.0
27163 NANOFLEX® HC 500-C 5G5 12.3 273.0 386.0
Technical Data
  • Special polyurethane jacketed cable according to DIN VDE 0245 Part 201 to 1.5 mm2, according to DIN VDE 0245 Part 102 from 2.5 mm2
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Breakdown Voltage min. 6000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 10x cable Ř
    Fixed Installation 5x cable Ř
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, fine wire stranded according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2, according to DIN VDE 0281 part 1
  • Black conductors with sequential white numbering according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special full-polyurethane outer jacket TMPU, to DIN VDE 50363-10-2
  • Jacket color: Light Gray (RAL 7035)
  • With meter marking
Application

Special PUR cable for the food and beverage industry. Outer jacket with antimicrobial properties increases process reliability in all applications in which food and beverages are processed, unpacked and unsealed, e.g. processing of dairy products, meat, fish, production of convenience foods, brewery and beverage industry.
CE Approval = The product is conformed with the EG Low-Voltage Directive 2006/95/EG

Properties
  • Resistant to UV-Radiation, oxygen, ozone, hydrolysis and microbes
  • Self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (conforms to DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • Good cleaning properties
  • Resistant to all standard detergents
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • Unshielded type: NANOFLEX® HC 500
  • Hygenic Cable
Cable Accessories
  • Coming Soon!
