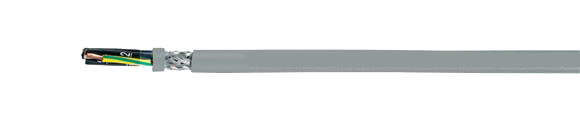

Control Cable: F-C-PURÍ-JZ

Tear and Coolant Resistant, Copper-Shielded, Without Inner Jacket, Increased Oil Resistant, EMI Preferred Type

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls, , F-C-PUR÷-JZ, PUR Cables for Humid Areas, EMC (EMI Preferred Type), Tear resistant, Coolant-resistant, Cu (Shielded), without Inner Jacket, Control Cable
AWG Selection
20
20
18
18
17
17
16
16
14
14
12
12
10
10
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
21200 F-C-PURÍ-OZ 2X0.5  5.7 35.0 44.0 20
21201 F-C-PURÍ-JZ 3G0.5 5.9 42.0 56.0 20
21202 F-C-PURÍ-JZ 4G0.5 6.4 47.0 60.0 20
21203 F-C-PURÍ-JZ 5G0.5 6.9 56.0 75.0 20
21205 F-C-PURÍ-JZ 7G0.5 7.6 69.0 97.0 20
21207 F-C-PURÍ-JZ 10G0.5 9.6 94.0 133.0 20
21208 F-C-PURÍ-JZ 12G0.5 9.7 108.0 158.0 20
21209 F-C-PURÍ-JZ 14G0.5 10.2 116.0 190.0 20
21211 F-C-PURÍ-JZ 18G0.5 11.5 145.0 218.0 20
21213 F-C-PURÍ-JZ 21G0.5 12.7 188.0 252.0 20
21215 F-C-PURÍ-JZ 25G0.5 13.6 240.0 315.0 20
21217 F-C-PURÍ-JZ 30G0.5 14.4 295.0 362.0 20
21220 F-C-PURÍ-JZ 36G0.5 15.6 318.0 447.0 20
21221 F-C-PURÍ-JZ 40G0.5 19.9 343.0 475.0 20
21224 F-C-PURÍ-JZ 50G0.5 18.5 406.0 572.0 20
21227 F-C-PURÍ-OZ 2X0.75  6.1 40.0 60.0 18
21228 F-C-PURÍ-JZ 3G0.75 6.3 52.0 67.0 18
21229 F-C-PURÍ-JZ 4G0.75 6.8 60.0 76.0 18
21230 F-C-PURÍ-JZ 5G0.75 7.4 71.0 92.0 18
21232 F-C-PURÍ-JZ 7G0.75 8.2 91.0 131.0 18
21234 F-C-PURÍ-JZ 10G0.75 10.3 137.0 180.0 18
21235 F-C-PURÍ-JZ 12G0.75 10.5 142.0 204.0 18
21236 F-C-PURÍ-JZ 14G0.75 11.3 180.0 226.0 18
21238 F-C-PURÍ-JZ 18G0.75 12.7 212.0 290.0 18
21240 F-C-PURÍ-JZ 21G0.75 14.0 246.0 376.0 18
21242 F-C-PURÍ-JZ 25G0.75 15.0 281.0 413.0 18
21245 F-C-PURÍ-JZ 32G0.75 16.7 342.0 485.0 18
21249 F-C-PURÍ-JZ 41G0.75 18.6 400.0 611.0 18
21251 F-C-PURÍ-JZ 50G0.75 20.3 461 775.0 18
21253 F-C-PURÍ-OZ 2X1   6.4 50.0 66.0 17
21254 F-C-PURÍ-JZ 3G1 6.7 60.0 82.0 17
21255 F-C-PURÍ-JZ 4G1 7.2 71.0 100.0 17
21256 F-C-PURÍ-JZ 5G1 8.0 88.0 128.0 17
21257 F-C-PURÍ-JZ 6G1 8.7 97.0 145.0 17
21258 F-C-PURÍ-JZ 7G1 8.7 111.0 157.0 17
21259 F-C-PURÍ-JZ 8G1 10.1 127.0 198.0 17
21261 F-C-PURÍ-JZ 10G1 11.2 150.0 230.0 17
21262 F-C-PURÍ-JZ 12G1 11.4 184.0 262.0 17
21263 F-C-PURÍ-JZ 14G1 12.0 196.0 302.0 17
21264 F-C-PURÍ-JZ 16G1 12.8 209.0 345.0 17
21265 F-C-PURÍ-JZ 18G1 13.5 260.0 381.0 17
21267 F-C-PURÍ-JZ 21G1 14.3 319.0 480.0 17
21268 F-C-PURÍ-JZ 25G1 16.2 349.0 535.0 17
21273 F-C-PURÍ-JZ 34G1 18.5 486.0 740.0 17
21276 F-C-PURÍ-JZ 41G1 19.9 531.0 855.0 17
21278 F-C-PURÍ-JZ 50G1 21.8 625.0 1027.0 17
21280 F-C-PURÍ-OZ 2X1.5  7.0 63.0 87.0 16
21281 F-C-PURÍ-JZ 3G1.5 7.4 80.0 102.0 16
21282 F-C-PURÍ-JZ 4G1.5 8.1 97.0 127.0 16
21283 F-C-PURÍ-JZ 5G1.5 9.0 119.0 159.0 16
21285 F-C-PURÍ-JZ 7G1.5 9.8 147.0 207.0 16
21286 F-C-PURÍ-JZ 8G1.5 10.5 170.0 245.0 16
21287 F-C-PURÍ-JZ 10G1.5 12.6 193.0 313.0 16
21288 F-C-PURÍ-JZ 12G1.5 12.8 267.0 340.0 16
21290 F-C-PURÍ-JZ 14G1.5 13.5 283.0 384.0 16
21291 F-C-PURÍ-JZ 16G1.5 14.4 315.0 425.0 16
21292 F-C-PURÍ-JZ 18G1.5 15.5 374.0 480.0 16
21295 F-C-PURÍ-JZ 21G1.5 16.4 425.0 563.0 16
21296 F-C-PURÍ-JZ 25G1.5 18.5 526.0 704.0 16
21297 F-C-PURÍ-JZ 34G1.5 21.2 629.0 870.0 16
21298 F-C-PURÍ-JZ 42G1.5 21.9 819.0 1040.0 16
21299 F-C-PURÍ-JZ 50G1.5 25.0 885.0 1292.0 16
21300 F-C-PURÍ-OZ 2X2.5  8.4 96.0 131.0 14
21301 F-C-PURÍ-JZ 3G2.5 8.8 144.0 168.0 14
21302 F-C-PURÍ-JZ 4G2.5 9.8 148.0 194.0 14
21303 F-C-PURÍ-JZ 5G2.5 10.8 181.0 222.0 14
21304 F-C-PURÍ-JZ 7G2.5 11.9 255.0 345.0 14
21305 F-C-PURÍ-JZ 10G2.5 15.2 340.0 462.0 14
21306 F-C-PURÍ-JZ 12G2.5 15.8 441.0 570.0 14
21313 F-C-PURÍ-OZ 2X4  10.0 120.0 187.0 12
21314 F-C-PURÍ-JZ 3G4 10.7 174.0 243.0 12
21315 F-C-PURÍ-JZ 4G4 11.6 230.0 310.0 12
21316 F-C-PURÍ-JZ 5G4 12.9 273.0 386.0 12
21317 F-C-PURÍ-JZ 7G4 14.2 316.0 498.0 12
21319 F-C-PURÍ-JZ 3G6   12.6 240.0 333.0 10
21320 F-C-PURÍ-JZ 4G6 13.8 305.0 414.0 10
21321 F-C-PURÍ-JZ 5G6 15.3 439.0 510.0 10
21322 F-C-PURÍ-JZ 7G6 16.9 505.0 673.0 10
Technical Data
  • Special polyurethane-jacketed multi conductor cable on the basis of E DIN VDE 0245 part 201 up to 1.5 mm▓, on the basis of E DIN VDE 0245 part 102 as of 2.5 mm▓
  • Temperature Range
    Flexing
    -5░C to +80░C (+23░F to +176░F)
    Fixed Installation
    -40░C to +80░C (-40░F to +176░F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Breakdown Voltage min. 6000 V
  • Minimum Bending Radius
    Flexing 10x cable ě
    Fixed Installation 5x cable ě
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE VDE PCT
Cable Construction
  • Plain copper conductor, finely stranded according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Oil resistant PVC conductor insulation TI2, in adapted to DIN VDE 0281 part 1, for better sliding abilities
  • Conductors black with sequential numbering imprinted in white according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Separating foil
  • Braided shielding of tinned copper wires, coverage approx. 85%
  • Fleece separator, ensure good dismantling ability
  • Special full-polyurethane outer jacket TMPU, to DIN VDE 0282 part 10, appendix A
  • Jacket color: Gray (RAL 7001)
  • Outer jacket also available in other colors
Application

Extremely robust control cable characterized by high abrasion and notch resistance properties. Used for critical areas in such applications as machinery, tooling and plant construction, in rolling mills and steel works because of the resistance to mineral oils and to coolant emulsions in particular. Rapid and safe installation assured by the good flexibility of the cable. Suitable for outdoor installation.
An interference-free transmission of signals and pulses is assured by the high shielding density. The ideal interference-protected control cable for such applications as given above
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Resistant to: UV-Radiation, oxygen, ozone and hydrolysis, microbes
  • Self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    X = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent sizes. The actual cross-section is in mm2.
  • Unshielded Type: PURÍ-JZ
Cable Accessories
  • Coming Soon!
