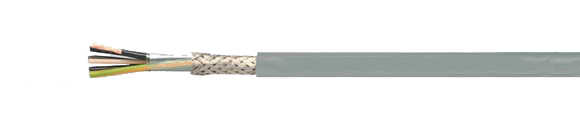

Control Cable: JZ 500-FC-PUR

EMI Preferred Type, Tear and Coolant Resistant, Shielded, Without Inner Jacket

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , JZ-500-FC-PUR, Tear and Coolant Resistant, shielded, without inner jacket, EMC (EMI) preferred type, PUR Control Cable, PUR Cable for Humid Areas, Number Coded, Control Cable
AWG Selection
20
20
18
18
17
17
16
16
14
14
12
12
10
10
8
8
6
6
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
23414 OZ-500-FC-PUR 2X0.5  5.7 35.0 47.0 20
23416 OZ-500-FC-PUR 3X0.5 5.9 42.0 57.0 20
23415 JZ-500-FC-PUR 3G0.5 5.9 42.0 57.0 20
23417 JZ-500-FC-PUR 4G0.5 6.4 47.0 60.0 20
23418 OZ-500-FC-PUR 4X0.5 6.4 47.0 60.0 20
23419 JZ-500-FC-PUR 5G0.5 6.9 56.0 75.0 20
23420 OZ-500-FC-PUR 5X0.5 6.9 56.0 75.0 20
23421 JZ-500-FC-PUR 7G0.5 7.6 69.0 97.0 20
23422 JZ-500-FC-PUR 7G0.5 7.6 69.0 97.0 20
23423 JZ-500-FC-PUR 10G0.5 9.6 94.0 133.0 20
23424 JZ-500-FC-PUR 12G0.5 9.2 118.0 158.0 20
23425 JZ-500-FC-PUR 18G0.5 11.5 145.0 218.0 20
23426 JZ-500-FC-PUR 25G0.5 13.3 240.0 315.0 20
23427 JZ-500-FC-PUR 34G0.5 15.6 312.0 420.0 20
23428 JZ-500-FC-PUR 42G0.5 17.0 355.0 487.0 20
23429 OZ-500-FC-PUR 2X0.75  6.1 40.0 60.0 18
23430 JZ-500-FC-PUR 3G0.75 6.1 50.0 67.0 18
23431 OZ-500-FC-PUR 3X0.75 6.1 50.0 67.0 18
23432 JZ-500-FC-PUR 4G0.75 6.8 60. 76.0 18
23433 OZ-500-FC-PUR 4X0.75 6.8 60.0 76.0 18
23434 JZ-500-FC-PUR 5G0.75 7.4 71.0 67.0 18
23435 OZ-500-FC-PUR 5X0.75 7.4 71.0 92.0 18
23436 JZ-500-FC-PUR 7G0.75 8.2 91.0 131.0 18
23437 OZ-500-FC-PUR 7X0.75 8.2 91.0 131.0 18
23438 JZ-500-FC-PUR 10G0.75 10.3 137.0 180.0 18
23439 JZ-500-FC-PUR 12G0.75 10.5 142.0 204.0 18
23440 JZ-500-FC-PUR 18G0.75 12.7 212.0 290.0 18
23441 JZ-500-FC-PUR 25G0.75 15.0 281.0 413.0 18
23442 JZ-500-FC-PUR 34G0.75 17.2 345.0 492.0 18
23443 JZ-500-FC-PUR 42G0.75 18.6 407.0 624.0 18
23444 OZ-500-FC-PUR 2X1  6.4 50.0 66.0 17
23445 JZ-500-FC-PUR 3G1 6.7 60.0 82.0 17
23446 OZ-500-FC-PUR 3X1 6.7 60.0 82.0 17
23448 OZ-500-FC-PUR 4X1 7.2 71.0 100.0 17
23447 JZ-500-FC-PUR 4G1 7.2 71.0 100.0 17
23449 JZ-500-FC-PUR 5G1 8.0 88.0 128.0 17
23450 OZ-500-FC-PUR 5X1 8.0 88.0 128.0 17
23451 JZ-500-FC-PUR 7G1 8.7 111.0 157.0 17
23452 OZ-500-FC-PUR 7X1 8.7 111.0 157.0 17
23453 JZ-500-FC-PUR 10G1 11.2 150.0 230.0 17
23454 JZ-500-FC-PUR 12G1 14.4 184.0 262.0 17
23455 JZ-500-FC-PUR 18G1 13.5 260.0 381.0 17
23456 JZ-500-FC-PUR 25G1 16.2 349.0 535.0 17
23457 JZ-500-FC-PUR 34G1 18.5 486.0 740.0 17
23458 JZ-500-FC-PUR 42G1 20.2 545.0 867.0 17
23459 JZ-500-FC-PUR 50G1 21.8 625.0 1027.0 17
23460 OZ-500-FC-PUR 2X1.5  7.0 63.0 87.0 16
23461 JZ-500-FC-PUR 3G1.5 7.4 80.0 102.0 16
23462 OZ-500-FC-PUR 3X1.5 7.4 80.0 102.0 16
23464 OZ-500-FC-PUR 4X1.5 8.1 97.0 127.0 16
23463 JZ-500-FC-PUR 4G1.5 8.1 97.0 127.0 16
23465 JZ-500-FC-PUR 5G1.5 9.0 119.0 159.0 16
23466 OZ-500-FC-PUR 5X1.5 9.0 119.0 159.0 16
23467 JZ-500-FC-PUR 7G1.5 9.8 147.0 207.0 16
23468 OZ-500-FC-PUR 7X1.5 9.8 147.0 207.0 16
23469 JZ-500-FC-PUR 12G1.5 12.8 267.0 340.0 16
23470 JZ-500-FC-PUR 18G1.5 15.0 374.0 480.0 16
23471 JZ-500-FC-PUR 25G1.5 18.5 526.0 704.0 16
23472 JZ-500-FC-PUR 30G1.5 19.6 555.0 817.0 16
23473 OZ-500-FC-PUR 2X2.5  8.4 96.0 131.0 14
23474 JZ-500-FC-PUR 3G2.5 8.8 144.0 168.0 14
23475 JZ-500-FC-PUR 4G2.5 9.8 1480 194.0 14
23476 JZ-500-FC-PUR 5G2.5 10.8 181.0 222.0 14
23477 JZ-500-FC-PUR 7G2.5 11.9 255.0 345.0 14
23478 JZ-500-FC-PUR12G2.5 15.8 441.0 570.0 14
23479 JZ-500-FC-PUR 4G4  11.6 230.0 310.0 12
23480 JZ-500-FC-PUR 5G4 12.9 273 386.0 12
23481 JZ-500-FC-PUR 7G4 14.2 316.0 498.0 12
23482 JZ-500-FC-PUR 4G6  13.8 305.0 414.0 10
23483 JZ-500-FC-PUR 5G6 15.3 439.0 510.0 10
23484 JZ-500-FC-PUR 7G6 16.9 505.0 673.0 10
23485 JZ-500-FC-PUR 4G10  17.1 535.0 591.0 8
23486 JZ-500-FC-PUR 5G10 19.1 592.0 768.0 8
23487 JZ-500-FC-PUR 7G10 21.2 810.0 976.0 8
23488 JZ-500-FC-PUR 4G16  20.0 740.0 1196.0 6
Technical Data
  • Special polyurethane jacketed cable
    adapted to DIN VDE 0245 part 201 to 1.5 mm, adapted to DIN VDE 0245 part 102 from 2.5 mm
  • Temperature Range
    Flexing
    -5C to +80C (+23F to +176F)
    Fixed Installation
    -40C to +80C (-40F to +176F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Breakdown Voltage
    Min. 6000 V
  • Minimum Bending Radius
    Flexing 10x cable
    Fixed Installation 5x cable
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper conductor, fine wire to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and/or IEC 60228 cl. 5
  • Conductor insulation of special PVC T12 to DIN VDE 0281, part 1
  • Black conductors with continuous white numbering according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Separating foil
  • Tinned copper braided shielding, coverage approx. 85%
  • Conductor wrapping from fleece guarantees good stripping capability
  • Outer jacket from special full polyurethane TMPU acc. to DIN VDE 0282 part 10, appendix A
  • Jacket color: Gray (RAL 7001)
  • Also available in other jacket colors
Application

Extremely robust cable noted for its good abrasion resistance and notch resistance. Due to its resistance to coolant emulsions, this cable is well suited for use in mechanical engineering, tool making and systems engineering, in steel mills and rolling mills in particularly critical areas. Good flexibility means that installation is quick and easy. Suitable for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms, and in open air (fixed installation). The dense shielding assures interference-free transmission of all signals and impulses. An ideal interference-free control cable for the above applications.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Resistant to UV-radiation, oxygen, ozone, hydrolyses, microbes
  • Self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 620332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • Unscreened type: JZ-500-PUR
Cable Accessories
  • Coming Soon!
