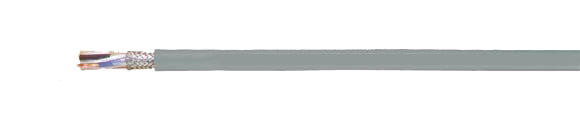

Control Cable: PUR-C-PUR

Copper-Shielded, Extreme Conditions, Halogen-Free, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European   PUR-C-PUR, Halogen-Free, Copper Shielded for use under Extreme Conditions, EMC (EMI Preferred Type), Halogen-Free, Shielded PUR Cable, Special Drag Chain Cable, Control Cable
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
22315 PUR-C-PUR-O 2X0.75, gray 6.8 40.0 65.0 18
22316 PUR-C-PUR 3G0.75, gray 7.4 52.0 80.0 18
22317 PUR-C-PUR 4G0.75, gray 8.0 60.0 95.0 18
22318 PUR-C-PUR 5G0.75, gray 8.8 71.0 126.0 18
22319 PUR-C-PUR 6G0.75, gray 9.5 80.0 150.0 18
22339 PUR-C-PUR-O 2X1, gray 7.3 50.0 80.0 17
22340 PUR-C-PUR 3G1, gray 7.7 60.0 95.0 17
22341 PUR-C-PUR 4G1, gray 8.3 71.1 106.0 17
22342 PUR-C-PUR 5G1, gray 9.2 88.0 149.0 17
22364 PUR-C-PUR-O 2X1.5, gray 8.8 63.0 101.0 16
22365 PUR-C-PUR 3G1.5, gray 9.3 80.0 125.0 16
22366 PUR-C-PUR 4G1.5, gray 10.3 97.0 150.0 16
22367 PUR-C-PUR 5G1.5, gray 11.2 119.0 210.0 16
22385 PUR-C-PUR-O 2X2.5, gray 10.2 96.0 142.0 14
22386 PUR-C-PUR 3G2.5, gray 10.8 144.0 169.0 14
22387 PUR-C-PUR 4G2.5, gray 12.0 148.0 225.0 14
22388 PUR-C-PUR 5G2.5, gray 132 181.0 275.0 14
Technical Data
  • Special PUR control cables, shielded, adapted to DIN VDE 0250
  • Temperature Range
    -40C to +80C (-40F to +176F)
  • Nominal Coltage
    U0/U 300/500 V until 1 mm
    U0/U 450/750 V from 1.5 mm
  • Test Coltage
    Until 1 mm 2000 V
    From 1.5 mm 2500 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Mutual Capacitance (800 Hz)
    Conductor/conductor approx. 150 pF/m
    Conductor/shielding approx. 320 pF/m
  • Minimum Bending Radius
    Flexing 10x cable
    Fixed Installation 5x cable
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PUR insulation
  • Conductor identification according to DIN VDE 0293-308
  • Green-yellow grounding (3 conductors and above)
  • Conductors stranded in layers with optimal lay length
  • Foil taped
  • Copper braided shielding with 80-85% coverage
  • PUR outer jacket
  • Color: gray (RAL 7032)
Application

PUR-C-PUR shielded cables are well suited as data transfer and connection cables for the machine and motor industries due to the good level of copper shielding which blocks strong electrical disturbances.
This cable type has proven to be especially suited to use in extreme weather and environmental conditions due to its good thermal and chemical properties. (Temperature range -40C to +80C / -40F to +176F). In addition to this, it also possesses excellent mechanical properties, e.g. pressure resistance and good abrasive resistant qualities, all of which go to guarantee a long life.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • High flexibility at low temperatures
  • High abrasion resistance
  • Break and cut resistant
  • Tear resistant
  • Resistant to: oils and fats, coolant and chemicals, non-alcoholic fuels and kerosene, atmospheric influences, UV-radiation, oxygen and ozone, microbes and rotting, sea and waste water, vibrations, acids and lye
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    X = without green-yellow earth conductor (OZ)
  • AWG sizes are approximate equivalent sizes. The actual cross-section is in mm2.
