CAMOZZI Valves
Manual, Mechanical & Air-Pilot

Series 4 - 1/8" & 1/4" Mechanically Operated Sensor Valves

Download & Save as PDF File PDF Download

Series 4 - 1/8" & 1/4" Mechanically Operated Sensor Valves (Cv = 0.68)

5-way/2-position, 1/8" ports, pilot / spring return, plunger sensor, spring return
Series 4 - 1/8" & 1/4" Mechanically Operated Sensor Valves

Part Number
458-015-194
Operating pressure = 2.5 - 8 bar (36 - 116 psi)
Flow rate = 650 Nl/min. (22.95 SCFM)
Actuating force at 6 bar = 6N (1.35 lbf)

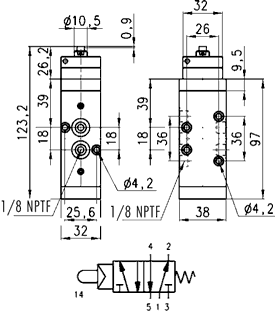

Technical Drawing
(Part Listed Is BSP - For NPT Sizes Add TF to Order Code)
Coding Example
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction spool-type (servocontrolled); internal pilot-pressure spool plunger
Valve Function 3-way/2-position, 5-way/2-position
Materials Anodized body, stainless steel spool, NBR seals
Ports 1/8", 1/4" NPTF
Operating Temperature 32° - 175°F (dry air necessary down to -4°F)
Pneumatic Data
Operating pressure 2.5 - 8 bar (36 - 116 psi) for single-pilot models
2 - 8 bar (29 - 116 psi) for double-pilot models
Nominal Flow (QN) 1/4" = 1250 NL/min. (44.1 SCFM) Cv = 1.31
1/8" = 650 NL/min. (22.95 SCFM) Cv = 0.68
