CAMOZZI Valves
Manual, Mechanical & Air-Pilot

Composite Right Angle Flow Control Valves

Download & Save as PDF File PDF Download

Composite Right Angle Flow Control Valves - NPTF/INCH

Needle Orifice Valves Series TMCO
Needle Orifice Valves Series TMCO

Part Number
TMCO 53-02
TMCO 04-02
TMCO 04-04
TMCO 05-04
TMCO 05-06
TMCO 06-06
TMCO 06-08
Technical Drawing

Meter-In Unidirectional flow controller for mounting on cylinders and valves. Knurled screw adjustment, with internal hex slot. Ports 1/8", 1/4", 3/8", 1/2" NTPF

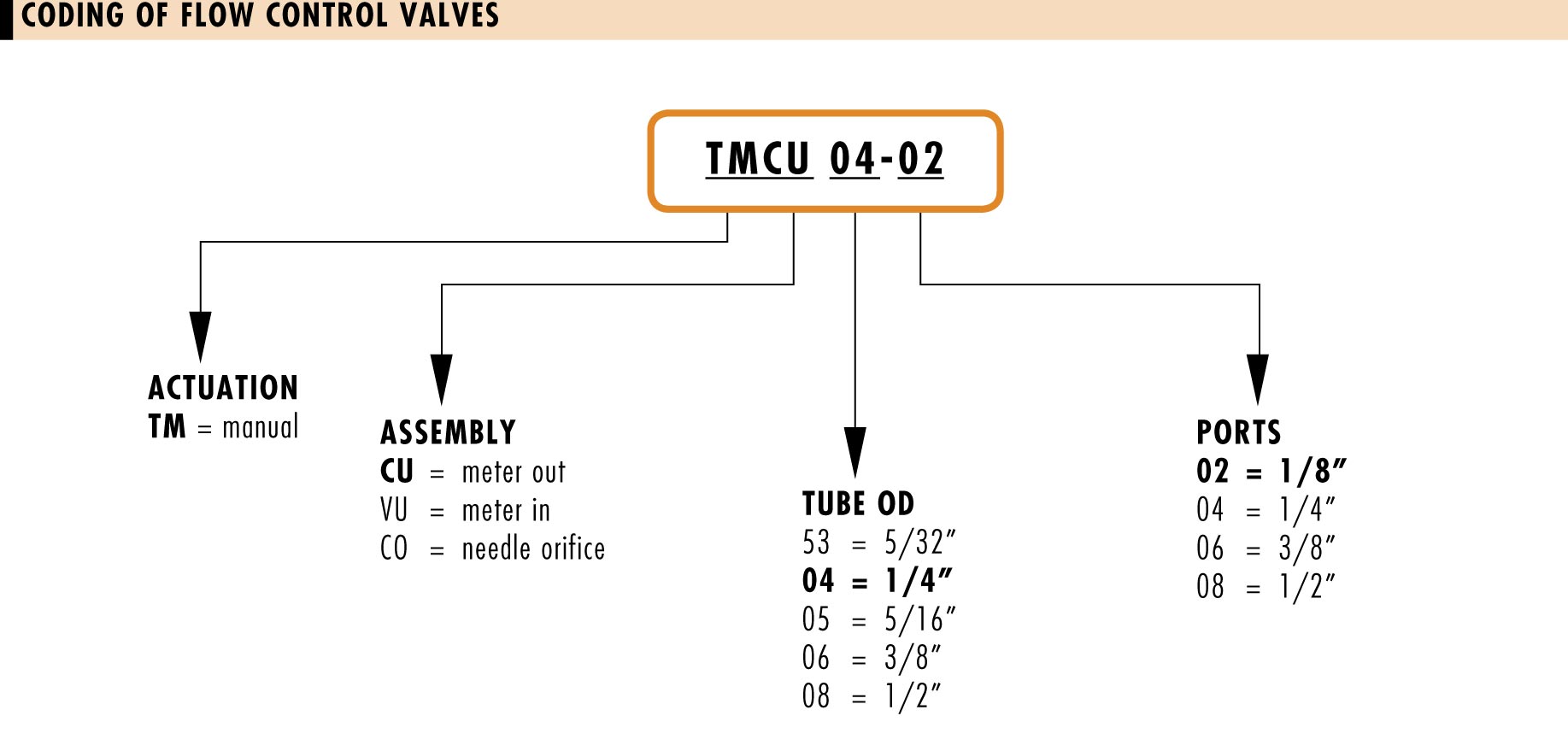

Coding Example
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction needle-type
Valve group Meter In, Meter Out, Needle Orifice flow controlle
Materials OT58 Nickel Plated Brass Threads and Collet - Technopolymer (Glass-Reinforced Nylon® 66 Resin) - BUNA-N Seals, PTFE thread seal
Mounting by male thread
Ports 1/8" , 1/4", 3/8", 1/2" NPTF
Position in any position
Operating temperature 0 - 60°C (with dry air -20°C) (32°F - 140°F, with dry air -4°F)
*If lubricated air is used, it is recommended to use ISOV G32 oil.
Once applied the lubrication should never be interrupted.
Pneumatic Data
Operating pressure 0.5 - 10 bar (7.25 - 145 psi)
Nominal pressure 6 bar (87 psi)
Nominal flow see graph
Nominal diam. Tube OD 5/32", 1/4", 5/16", 3/8", 1/2"
Fluid filtered air
