CAMOZZI Valves - Manual, Mechanical & Air-Pilot

Composite Right Angle Flow Control Valves - BSP/Metric

Download & Save as PDF File PDF Download

Composite Right Angle Flow Control Valves - BSP/Metric

Valves Series TMCO (Needle orfice)
Valves Series TMCO (Needle orfice)

Part Number
TMCO 972-1/8-4
TMCO 974-1/8-6
TMCO 974-1/4-6
TMCO 976-1/4-8
TMCO 976-3/8-8
TMCO 978-3/8-10
TMCO 978-1/2-10
Technical Drawing

Bidirectional flow controller for mounting on single-acting and double-acting cylinders and
valves. Knurled screw with internal hex slot. Ports G1/8, G1/4, G3/8, G1/2

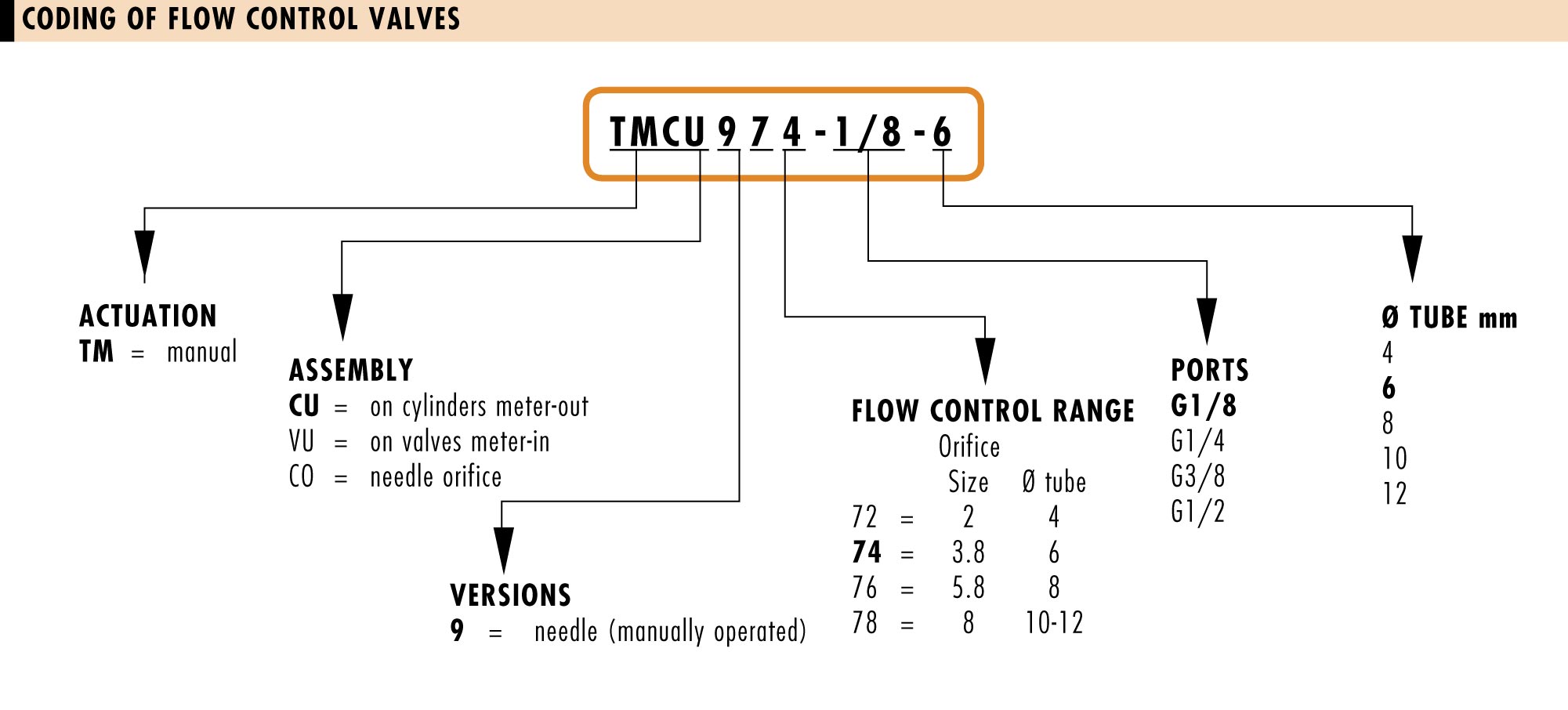

Coding Example
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction needle-type
Valve group Meter In, Meter Out, Needle Orifice flow controlle
Materials OT58 Nickel Plated Brass Threads and Collet - Technopolymer (Glass-Reinforced Nylon® 66 Resin) - BUNA-N Seals, PTFE thread seal
Mounting by male thread
Ports G1/8 , G1/4, G3/8, G1/2
Position in any position (spot face o-ring thread seal)
Operating temperature 0 - 60°C (with dry air -20°C) (32°F - 140°F, with dry air -4°F)
*If lubricated air is used, it is recommended to use ISOV G32 oil.
Once applied the lubrication should never be interrupted.
Pneumatic Data
Operating pressure 0.5 - 10 bar (7.25 - 145 psi)
Nominal pressure 6 bar (87 psi)
Nominal flow see graph
Nominal diam. Tube 4 Ø2 mm (.079") - Tube 6 Ø3.8 mm (.150") - Tube 8 Ø5.8 mm (.228") - Tube 10 and 12 Ø8 mm (.315")
Fluid filtered air
