CAMOZZI Valves
Manual, Mechanical & Air-Pilot

Air-Pilot Valves - Series 3

Download & Save as PDF File PDF Download

Manifold Segments for Series 3, 1/8" and 1/4" valves

(All mounting hardware & seals come with each manifold segment)
Manifold Segments
End plate for manifolds.
The following is supplied:
2x fixing nuts

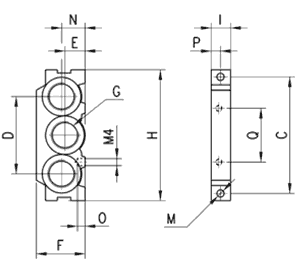

Technical Drawing
Dimensions
Part Number Series C D E F H I M N O P Q G
CNVL-3H 3 - 1/8" 69.5 46 12 29 78 11.5 4.3 14 5 6 32 3/8
CNVL-4H 3 - 1/4" 88 60 14 29 98 13 4.3 - 5 8 29 1/2
Technical Specifications
Valve group 3-way/2-position, 5-way/2-position, 5-way/3-position and dual 3-way/2-position
Construction Air-Pilot, in-line ported
Mounting through holes in valve body
Materials Anodized body, stainless steel spool, Buna-N seals
Threaded port sizes 1/4", 1/8" NPTF
Installation in any position
Operating temperature 0 - 80°C (with dry air at -20°C), 32°F - 176°F (with dry air at -4°F)
Fluid Filtered air (25 micron or less recommended)
Lubricant Not required; otherwise, oil compatible with Buna-N, (3° - 10°E); ISOVG32 grade, 32 centistrokes
Pneumatic Data
Operating pressure P = -.9 -10 bar (0-145 psi): (Down to 28" Hg possible)
Control pressure min. press. (see valve description)
Nominal pressure 6 bar (87 psi)
Nominal flow *Qn Series 3: 1/8" = 700 NL/min (24.7 SCFM), Cv= .73
1/4" = 1300 NL/min (45.9 SCFM), Cv = 1.37
Nominal diameter Ø1/8 = 5 mm, 1/4" = 7.5 mm
Fluid filtered air, without lubrication** (25 micron or less recommended)
*Qn = determined with supply pressure of 6 bar and with Dp = 1 bar.
**If lubricated air is used, it is recommended to use ISOVG32 oil and never interrupt the lubrication.
