CAMOZZI Valves
Manual, Mechanical & Air-Pilot

Air-Pilot Valves - Series 3

Download & Save as PDF File PDF Download

Series 3 Air-Pilot Operated Valve Cv= .73 - 1.37

3-way/2-position valve, 1/8" port Double Air-Pilot
Series 3 Air-Pilot Operated Valve
Valve with double Air-Pilot
Minimum pilot pressure: 2.5 bar. (29 psi)

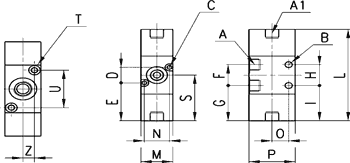

Technical DrawingTechnical Drawing
Part Number Mounting Function Flow Rate
NL/min
Cv Min. pil P
338-033 without base 3-way/2-position NC 700 .73 2.5 bar
338L-033 on manifold 3-way/2-position NC 700 .73 2.5 bar
334-033 without base 3-way/2-position NC 1300 1.37 2.5 bar

Dimensions (in Inches)
Part Number A A1 B C D E F G H I L M N O P S T U Z
338-033 1/8 1/8 5 - - - 18 30.4 18 30.4 78.8 22 - 11.5 32 41.7 - - -
338L-033 1/8 1/8 5 3.2 13.4 32.7 18 30.4 - 30.4 78.8 22 17.4 - 32 41.7 - - -
334-033 1/4 - 4.1 - - - 22 29.7 22 29.7 81.3 25 - 16 40 40.7 M5 - -
(Part Listed Is BSP - For NPT Sizes Add TF to Order Code)
Coding Example
Coding Example
(Click Image to Enlarge)
Technical Specifications
Valve group 3-way/2-position, 5-way/2-position, 5-way/3-position and dual 3-way/2-position
Construction Air-Pilot, in-line ported
Mounting through holes in valve body
Materials Anodized body, stainless steel spool, Buna-N seals
Threaded port sizes 1/4", 1/8" NPTF
Installation in any position
Operating temperature 0 - 80°C (with dry air at -20°C), 32°F - 176°F (with dry air at -4°F)
Fluid Filtered air (25 micron or less recommended)
Lubricant Not required; otherwise, oil compatible with Buna-N, (3° - 10°E); ISOVG32 grade, 32 centistrokes
Pneumatic Data
Operating pressure P = -.9 -10 bar (0-145 psi): (Down to 28" Hg possible)
Control pressure min. press. (see valve description)
Nominal pressure 6 bar (87 psi)
Nominal flow *Qn Series 3: 1/8" = 700 NL/min (24.7 SCFM), Cv= .73
1/4" = 1300 NL/min (45.9 SCFM), Cv = 1.37
Nominal diameter Ø1/8 = 5 mm, 1/4" = 7.5 mm
Fluid filtered air, without lubrication** (25 micron or less recommended)
*Qn = determined with supply pressure of 6 bar and with Dp = 1 bar.
**If lubricated air is used, it is recommended to use ISOVG32 oil and never interrupt the lubrication.
