FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download

Take-Off Blocks Series MX

Ports 1" NPTF
Modular
The Take-off blocks, when equipped with a check-valve, can be inserted before a lubricator to access non-lubricated air from its top and bottom distribution ports.
The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.

  • Compact design
  • Available with or without an internal check-valve after take-off ports, and before modular port 2 outlet
  • Pressure switches available on request

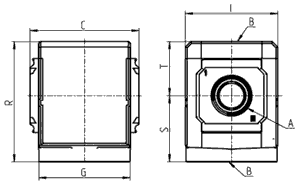

Take-Off Blocks Series MX Technical Drawing
Part Number A B C G I R S T
MX3-1-B00TF 1 1 3.524 2.953 2.992 3.898 2.146 1.752

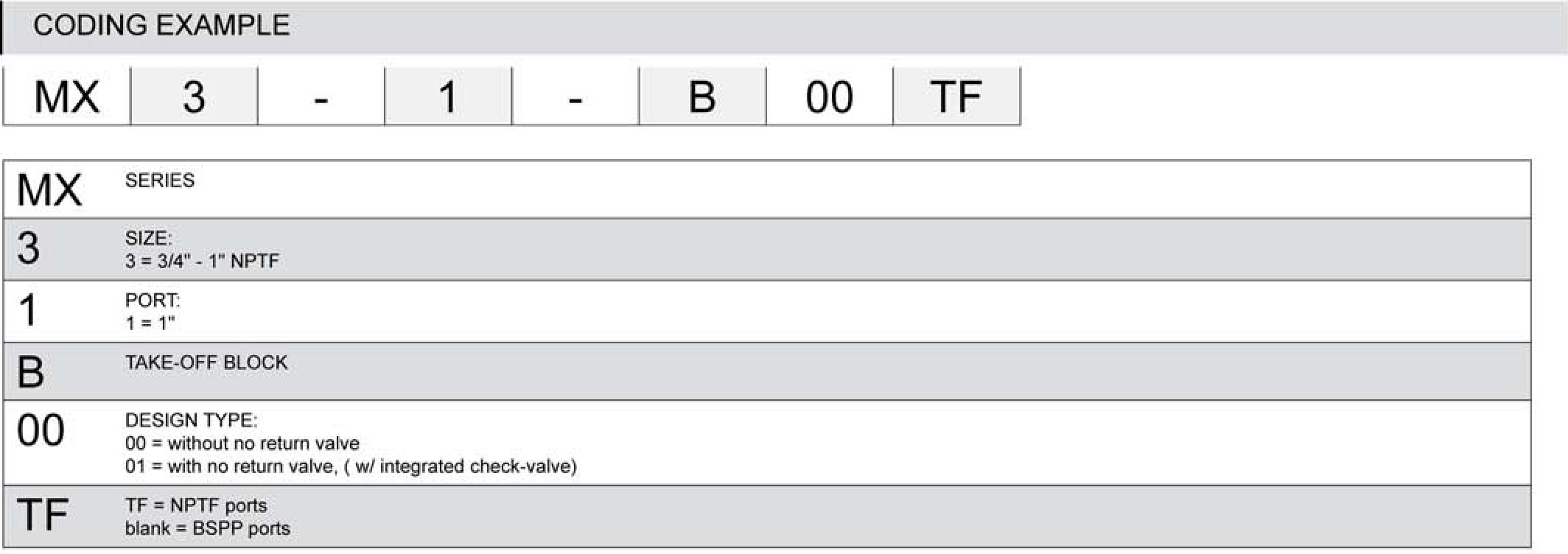

Coding Example
Coding Example
(Click Image to Enlarge)
Take-off blocks Series MX - Materials
Technical Drawing
Parts Materials
1 = Body Aluminium
2 = Covering Polyamide
Seals NBR
Technical Specifications
Construction modular, compact, diaphragm-type
Materials see TABLE OF MATERIALS
Ports 1"
Weight 0,55 kg (1.2 lbs)
Take-off ports 1"
Mounting in-line, wall-mounting (by means of clamps)
Operating temperature -5°C - 50°C at 16 bar (with the dew point of the fluid), (23°F - 122°F @ 232 psi, up to 140 F MAX at 145 psi)
50°C - 60°C at 10 bar (with the dew point of the fluid)
Operating pressure 0 - 16 bar (0 - 232 psi)
Nominal flow at 6 bar with Δp = 1 bar MX3-1-B00 = 14500 Nl/m (507 SCFM)
MX3-1-B01 = 10500 Nl/m (367 SCFM)
Fluid compressed air
