camozzi Index|FRL Units|Series MX

camozzi

FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download

Pressure Regulators Series MX

Ports 3/4" - 1" NPTF, Innovative modular clamping system
Available with built-in pressure gauges or with front & rear ports for gauges
Reliable and repeatable set-points of the secondary reduced pressure ensures performance optimization and energy saving. Available in 2 standard spring options for regulated pressure ranges. All regulators are equipped with an integrated locking system and built-in pressure gauges for a more compact product. The regulators Series MX are suitalbe also for panel mountings.
The Series MX appeals to a broad spectrum of markets and applications because of the savings realized in installation time, space requirements and total cost.

  • Low set-point variance, or hysteresis
  • Lockable knob with adjustment stop
  • Tamper-proof system via slots in handle offers a fully lockable regulator
  • Integral return exhaust (relieving)

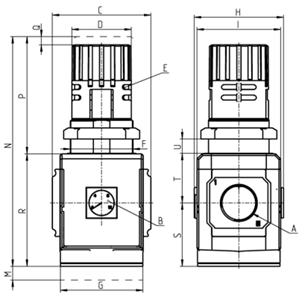

Pressure Regulators Series MX Technical Drawing
Part Number A B
(psi)
C D Ø
E
F G H I M N P Q R S T U
MX3-3/4-R004TF 3/4 0-175 3.524 2.126 .156 M57x1.5 2.953 3.189 2.992 1.772 8.110 4.094 .197 4.016 2.264 1.752 0-0.785
MX3-1-R004TF 1 0-175 3.524 2.126 .156 M57x1.5 2.953 3.189 2.992 1.772 8.110 4.094 .197 4.016 2.264 1.752 0-0.785

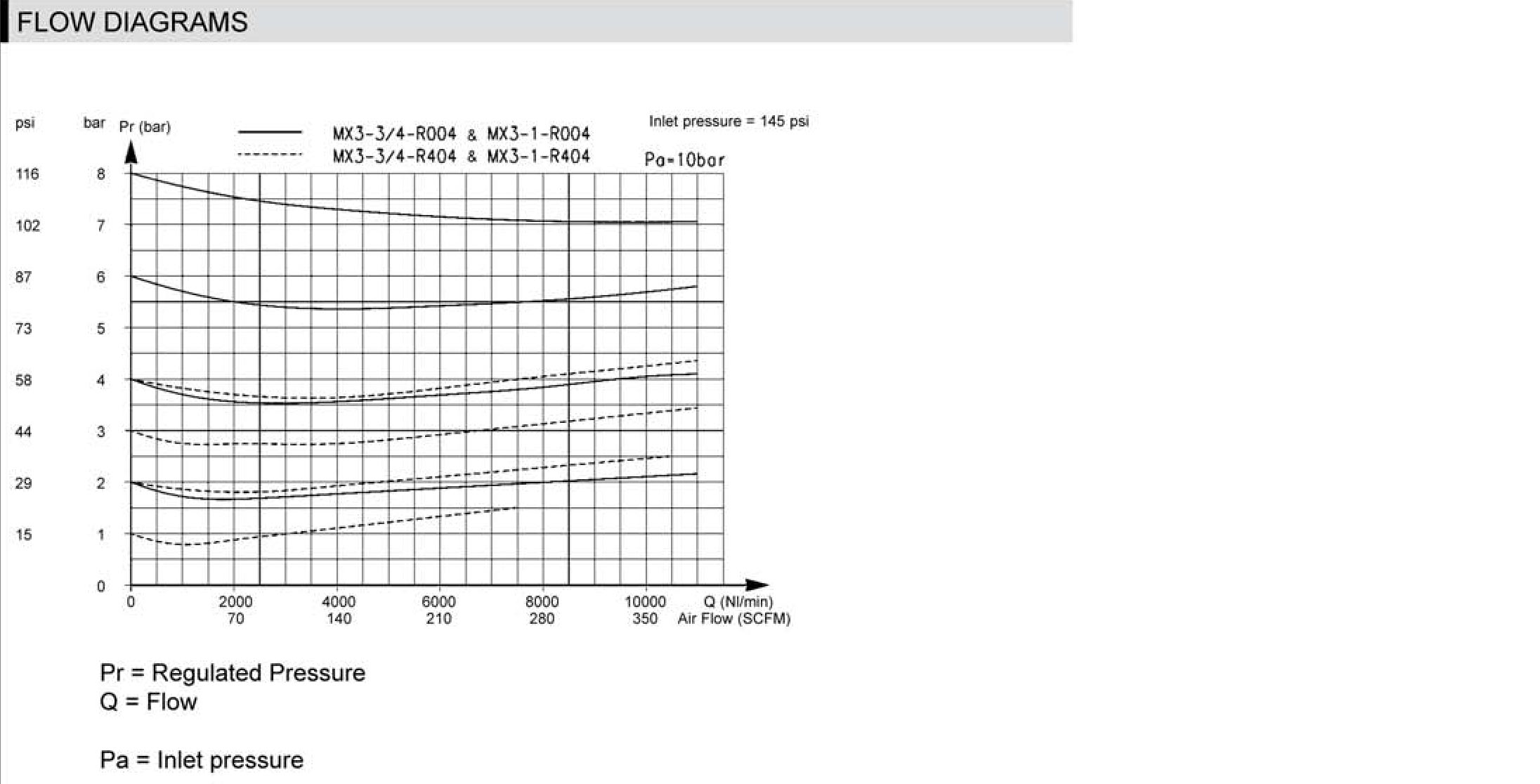

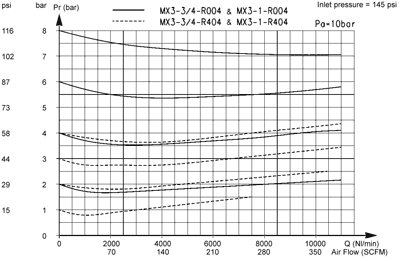

Coding Example & Flow Diagrams
Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Pressure regulators Series MX - Materials
Technical Drawing
Parts Materials
1 = Body Aluminium
2 = Covering Polyamide
3 = Valve holder plug Polyamide
4 = Regulator knob Polyamide
5 = Upper spring Zinc-plated steel
6 = Diaphragm NBR
7 = Lower spring Stainless steel
Seals NBR
Technical Specifications
Construction modular, compact, diaphragm type
Materials see TABLE OF MATERIALS
Ports 3/4" - 1" NPTF
Weight 1,05 kg (2.3 lbs )
Mounting vertical in-line, wall-mounting (by means of clamps), panel mouting
Operating temperature -5°C - 50°C at 16 bar (with the dew point of the fluid), (23°F - 122°F @ 232 psi, up to 140°F MAX at 145 psi )
50°C - 60°C at 10 bar (with the dew point of the fluid)
Inlet pressure 0 - 16 bar (0 - 232 psi)
Outlet pressure 0,5 - 10 bar, (7 - 145 psi) or 0 - 4 bar, (0 - 60 psi)
Overpressure exhaust with relieving or without relieving
Nominal flow see FLOW DIAGRAMS
Fluid compressed air
Pressure gauge version with built-in pressure gauge or version with ports for pressure gauge (1/4 ports) available standard on all units
