camozzi Index|FRL Units|Series MX

camozzi

FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download

Filters Series MX

Ports 3/4" - 1" NPTF
Innovative modular clamping system, Quick-Release, locking bayonet bowls
Series MX3 is the latest air treatment system offered by camozzi. This modular design is characterized by a modern, compact design, and high performance. The integration between metal alloys and technopolymers has allowed the realization of a reliable product, both light and strong at the same time. The unique and patented modular clamping system simplifies the mounting of components.
The Series MX appeals to a broad spectrum of markets and applications because of the savings realized in installation time, space requirements and total cost.

  • Removal of impurities and condensate
  • High flow with minimal pressure decreases
  • Cartridge filters of 25 or 5 µm
  • Manual or automatic condensate drain
  • Bowl locking mechanism reduces the risk of accidents

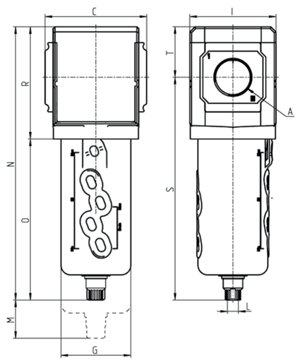

Filters Series MX Technical Drawing
Part Number A C G I L M N O R S T
MX3-3/4-F00TF 3/4 3.524 2.421 2.992 1/8 2.953 9.488 5.591 3.898 7.736 1.752
MX3-1-F00TF 1 3.524 2.421 2.992 1/8 2.953 9.488 5.591 3.898 7.736 1.752

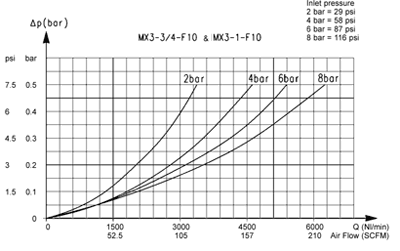

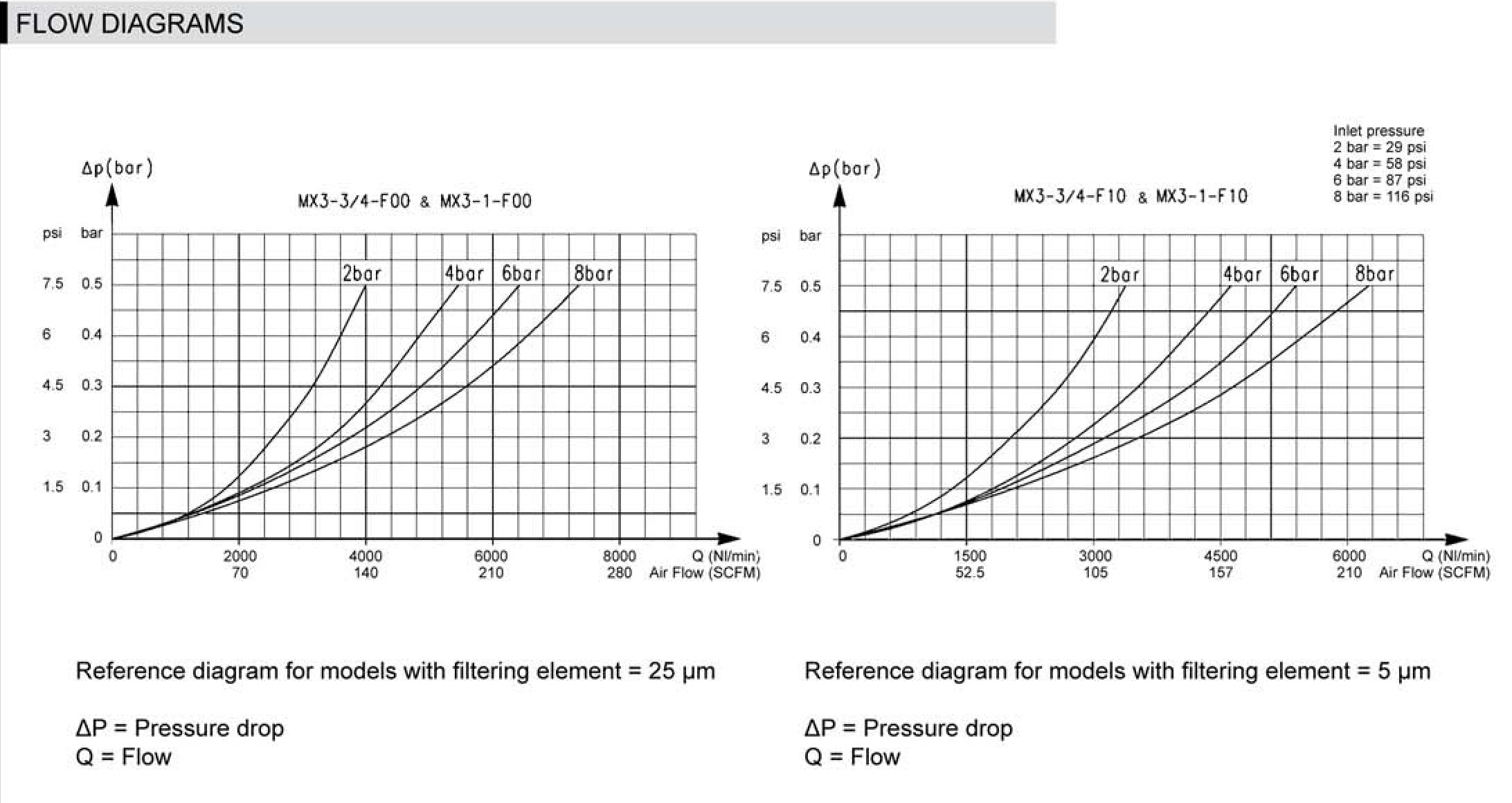

Coding Example & Flow Diagrams
Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Filters Series MX - Materials
Technical Drawing
Parts Materials
1 = Body Aluminium
2 = Covering Polyamide
3 = Composite Bowl with Nylon shroud Polycarbonate/Polyamide
4 = Valve-guide Polyacetal
5 = Filtering element Polyethylene
6 = Separation deflector Polyacetal
Seals NBR





Technical Specifications
Construction modular, compact with filtering element in HDPE
Materials see TABLE OF MATERIALS
Ports 3/4" - 1" NPTF
Condensate capacity 85 cc, (approx. 3 oz.)
Weight 0,720 kg, ( approx. 1.6 lbs.)
Mounting vertical in-line, wall-mounting (by means of clamps)
Operating temperature -5°C - 50°C at 16 bar (with the dew point of the fluid), (23°F - 122°F @ 232 psi, up to 140°F MAX at 145 psi )
50°C - 60°C at 10 bar (with the dew point of the fluid)
Porosity of filtering element 25 µm / 5 µm
Draining of condensate manual - semi automatic, automatic
Operating pressure 0,3 - 16 bar (with automatic drain 1,5 - 12 bar, (4.5 - 232 psi, 22 - 175 psi w/ automatic drain option)
Nominal flow see FLOW DIAGRAMS
Fluid compressed air
