FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download

Soft Start Valves Series MX

Ports 3/4" - 1" NPTF
Modular
These soft start valves allow a gradual increase of the pressure in pneumatic systems. The pressure increases slowly according to the screw-adjustable regulation until it reaches half of the set value, then it increases rapidly. The valve poppet shifts slowly and securely to the open position to prevent
sudden and unsafe movements of the pneumatic components in the system.
The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.

  • Allow for a safe, gradual pressurization of the pneumatic system from start-up
  • Screw adjustment of the timing delay which regulates inlet pressure to 50% of its value before full pressurization
  • Optional pressure switches are available on request

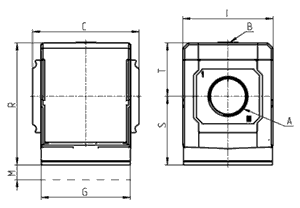

Soft Start Valves Series MX Technical Drawing
Part Number A B C G I M R S T
MX3-3/4-AVTF 3/4 1/8 3.524 2.953 2.992 1.772 4.016 2.264 1.752
MX3-1-AVTF 1 1/8 3.524 2.953 2.992 1.772 4.016 2.264 1.752

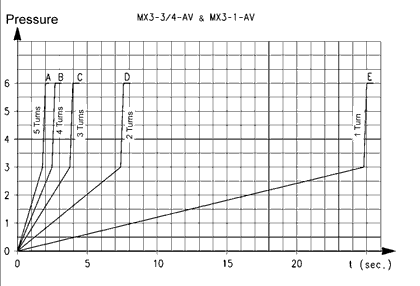

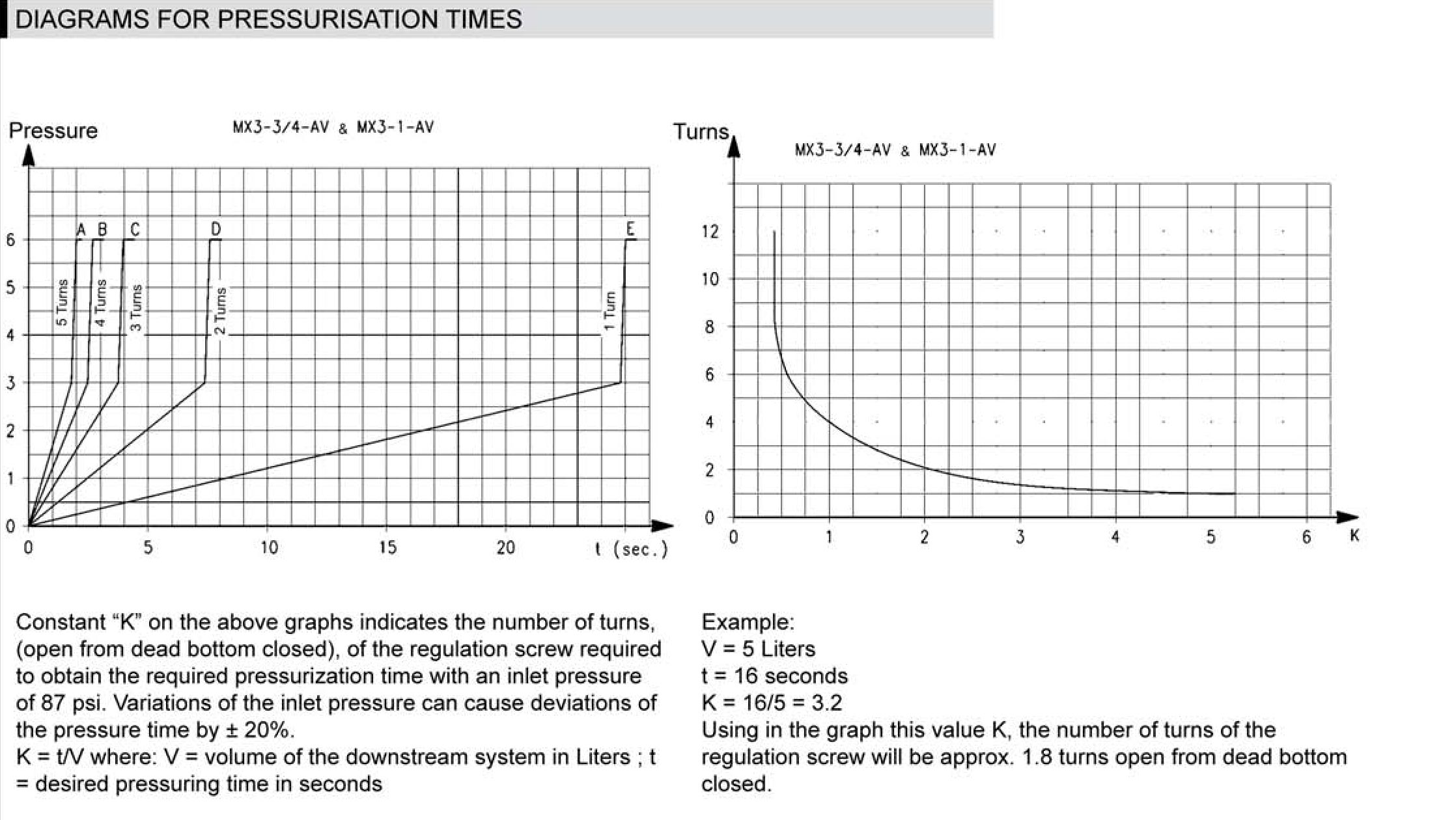

Coding Example & Flow Diagrams
Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Filters Series MX - Materials
Technical Drawing
Parts Materials
1 = Body Aluminium
2 = Covering Polyamide
3 = Valve holder plug Polyamide
4 = Lower spring Stainless steel
Seals NBR
Technical Specifications
Construction modular, compact, poppet-type
Materials see TABLE OF MATERIALS
Ports 3/4" - 1" NPTF
Weight 0,65 kg
Mounting in-line, wall-mounting (by means of clamps)
Operating temperature -5°C - 50°C at 16 bar (with the dew point of the fluid), (23°F - 122°F @ 232 psi, up to 140°F MAX at 145 psi)
50°C - 60°C at 10 bar (with the dew point of the fluid)
Operating pressure 2 - 10 bar
Nominal flow (at 6 bar with ΔP 1 bar) 8500 l/min, (298 SCFM)
Fluid compressed air
