FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download

Lubricators Series MX

Ports 3/4" - 1" NPTF
Innovative modular clamping system, Quick-Release, locking bayonet bowls
Series MX3 is the latest air treatment system offered by camozzi. This modular design is characterized by a modern, compact design, and high performance. The integration between metal alloys and technopolymers has allowed the realization of a reliable product, both light and strong at the same time. The unique and patented modular clamping system simplifies the mounting of components.
The Series MX appeals to a broad spectrum of markets and applications because of the savings realized in installation time, space requirements and total cost.

  • Oil adjustment screw in head cap
  • Ability to refill the oil even with system under pressure
  • High flow
  • Oil level visible through transparent slots in bowl shroud
  • Bowl locking mechanism
  • Enhanced safety features

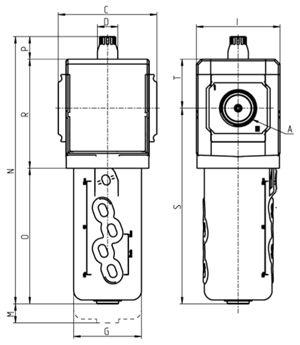

Lubricators Series MX Technical Drawing
Part Number A C D G I M N O P R S T
MX3-3/4-L00TF 3/4 3.524 0.728 2.421 2.992 3.937 9.567 4.843 0.827 3.898 7.008 1.752
MX3-1-L00TF 1 3.524 0.728 2.421 2.992 3.937 9.567 4.843 0.827 3.898 7.008 1.752

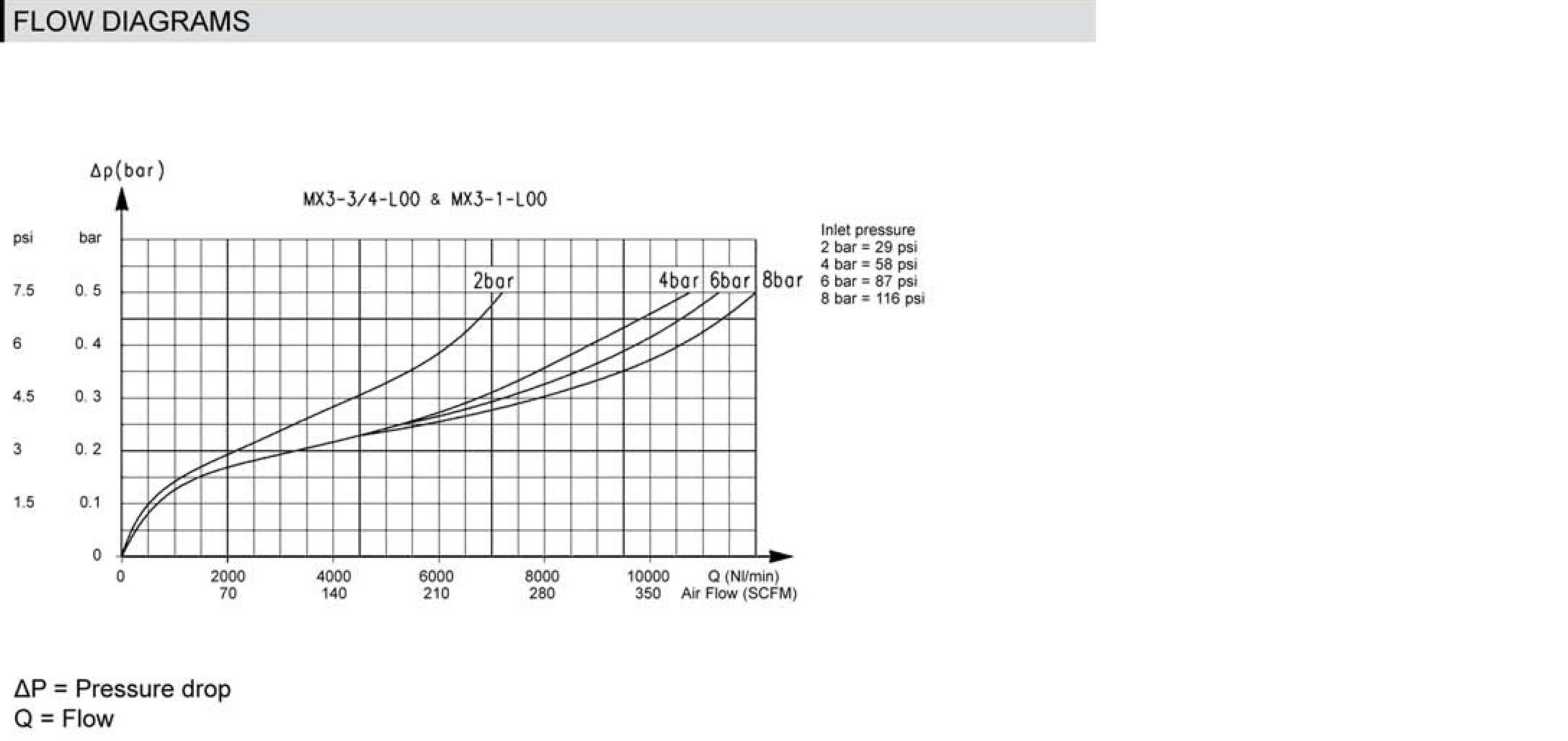

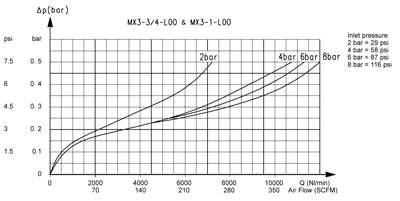

Coding Example & Flow Diagrams

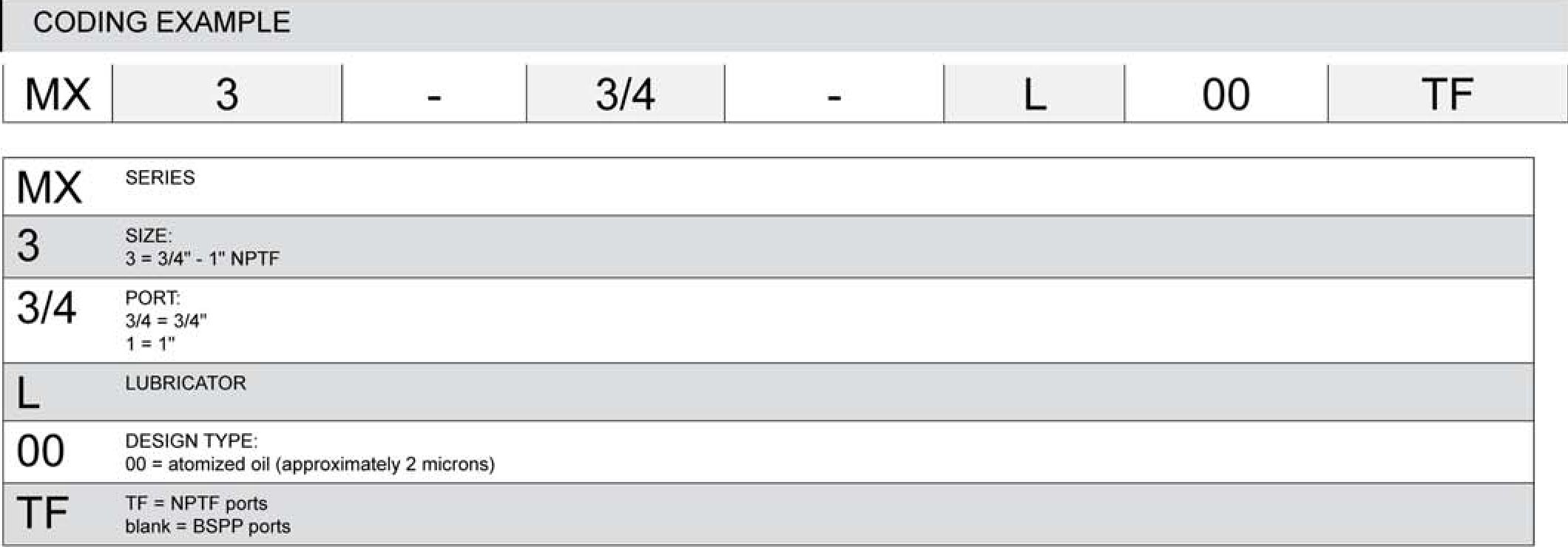

Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Lubricators Series MX - Materials

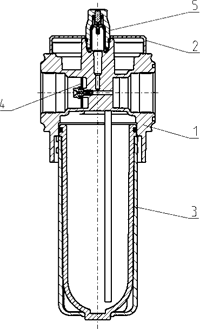

Technical Drawing
Parts Materials
1 = Body Aluminium
2 = Covering Polyamide
3 = Composite Bowl with Nylon shroud Polycarbonate/Polyamide
4 = Diaphragm NBR
5 = Viewer Polyamide
Seals NBR
Technical Specifications
Construction modular, compact
Materials see TABLE OF MATERIALS
Ports 3/4" - 1" NPTF
Oil capacity 170 cc (5.75 oz)
Weight 0,75 kg (1.65 lbs)
Oil refilling while under system pressure allowed by means of cap screw in head, or directly into bowl without pressure
Mounting vertical in-line, wall-mounting (by means of clamps)
Operating temperature -5°C - 50°C at 16 bar (with the dew point of the fluid), (23°F - 122°F @ 232 psi, up to 140°F MAX at 145 psi)
50°C - 60°C at 10 bar (with the dew point of the fluid)
Oil for lubrication 3°E - 10°E , Engler (approx 32 centistokes) recommendation 1 - 5 drops every 1000 Nl of air consumed (35 SCFM) (10 drops = 1cm³ = .061 in³ = 1 mL)
Droplet Size > 2 microns
Operating pressure 0 - 16 bar (0 - 232 psi)
Min. air consumption for lubrication at 1 bar 50 Nl/min (1.75 SCFM)
Min. air consumption for lubrication at 6 bar 95 Nl/min (3.3 SCFM)
Nominal flow see FLOW DIAGRAMS
