FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download

Activated Carbon Filters Series MX

Ports 3/4" - 1" NPTF
Innovative modular clamping system, Quick-Release, locking bayonet bowls
Series MX3 is the latest air treatment system offered by camozzi. This modular design is characterized by a modern, compact design, and high performance. The integration between metal alloys and technopolymers has allowed the realization of a reliable product, both light and strong at the same time. The unique and patented modular clamping system simplifies the mounting of components.
The Series MX appeals to a broad spectrum of markets and applications because of the savings realized in installation time, space requirements and total cost.

  • Removal of compressed air oil, liquid, and gas components through the active carbons
  • Air quality conforming to ISO 8573-1 standard, up to class 1.7.1
  • Bowl locking mechanism
  • reducing the risk of accidents

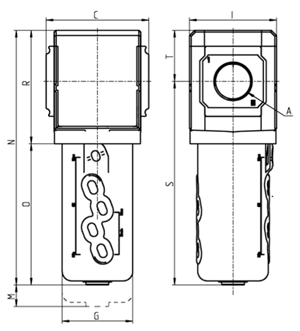

Activated Carbon Filters Series MX Technical Drawing
Part Number A C G I M N O R S T
MX3-3/4-FCATF 3/4 3.524 2.421 2.992 4.213 8.740 4.843 3.898 6.988 1.752
MX3-1-FCATF 1 3.524 2.421 2.992 4.213 8.740 4.843 3.898 6.988 1.752

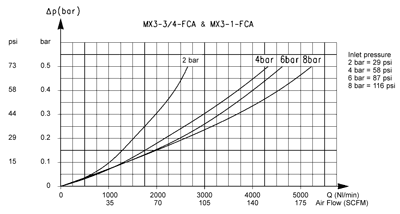

Coding Example & Flow Diagrams

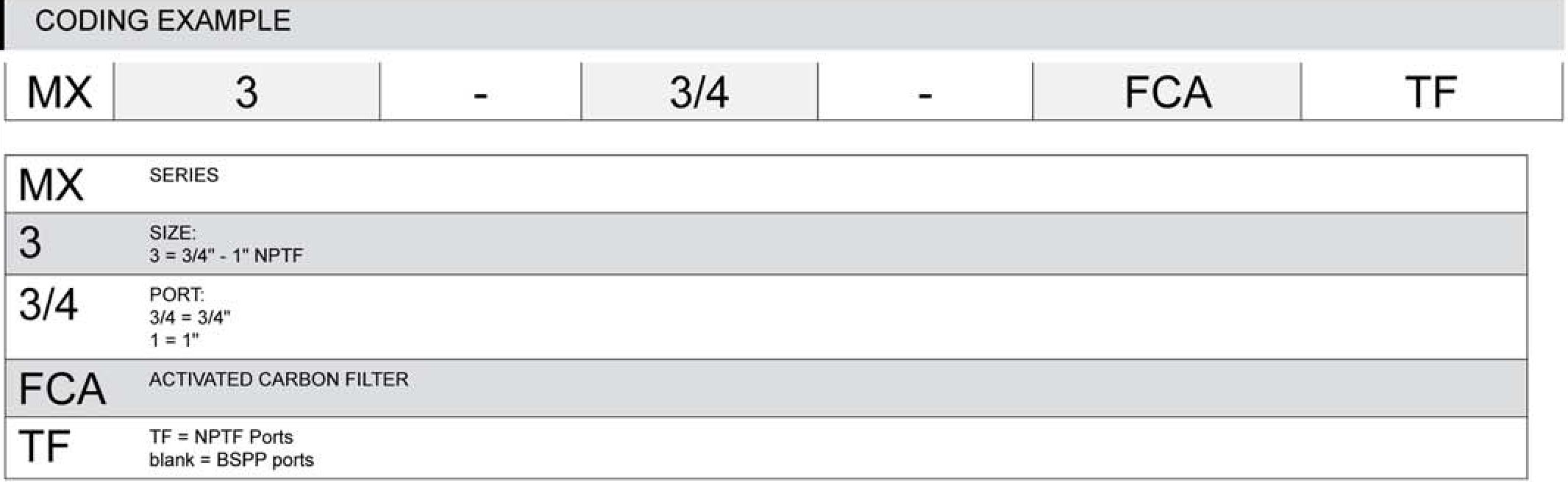

Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Activated carbon filters Series MX - Materials
Technical Drawing
Parts Materials
1 = Body Aluminium
2 = Covering Polyamide
3 = Composite Bowl with Nylon shroud Polycarbonate/Polyamide
4 = Filtering element Active carbon
Seals NBR
Technical Specifications
Construction modular, compact with filtering element in HDPE
Materials see TABLE OF MATERIALS
Ports 3/4" - 1" NPTF
Weight 0,8 kg (1.76 lbs)
Mounting vertical in-line, wall-mounting (by means of clamps)
Operating temperature 10°C - 40°C (t max = 60°C), (50°F - 105°F, max temp. 140°F)
Draining of condensate NO DRAINING
Operating pressure 0,3 - 16 bar
Nominal flow see FLOW DIAGRAMS
Filtering element active carbon
Residual oil content < 0,003 mg/m³
Fluid compressed air
Pre-filtering it is recommended to use a filter with residual oil of 0,01mg/m³
