FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download

Coalescing Filters Series MX

Ports 3/4" - 1" NPTF
Innovative modular clamping system, Quick-Release, locking bayonet bowls
Series MX3 is the latest air treatment system offered by camozzi. This modular design is characterized by a modern, compact design, and high performance. The integration between metal alloys and technopolymers has allowed the realization of a reliable product, both light and strong at the same time. The unique and patented modular clamping system simplifies the mounting of components.
The Series MX appeals to a broad spectrum of markets and applications because of the savings realized in installation time, space requirements and total cost.

  • High performance and compressed air purity
  • Air quality according to ISO 8573-1 standard
  • Cartridge filters 1 or 0,01 µm
  • Manual/automatic condensate drain
  • Bowl locking mechanism reducing the risk of accidents

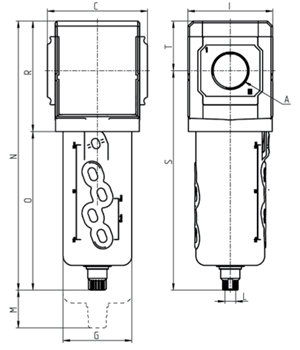

Coalescing Filters Series MX Technical Drawing
Part Number A C G I L M N O R S T
MX3-3/4-FC00TF 3/4 3.524 2.421 2.992 1/8 2.953 9.488 5.591 3.898 7.736 1.752
MX3-1-FC00TF 1 3.524 2.421 2.992 1/8 2.953 9.488 5.591 3.898 7.736 1.752

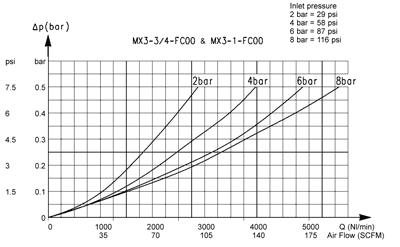

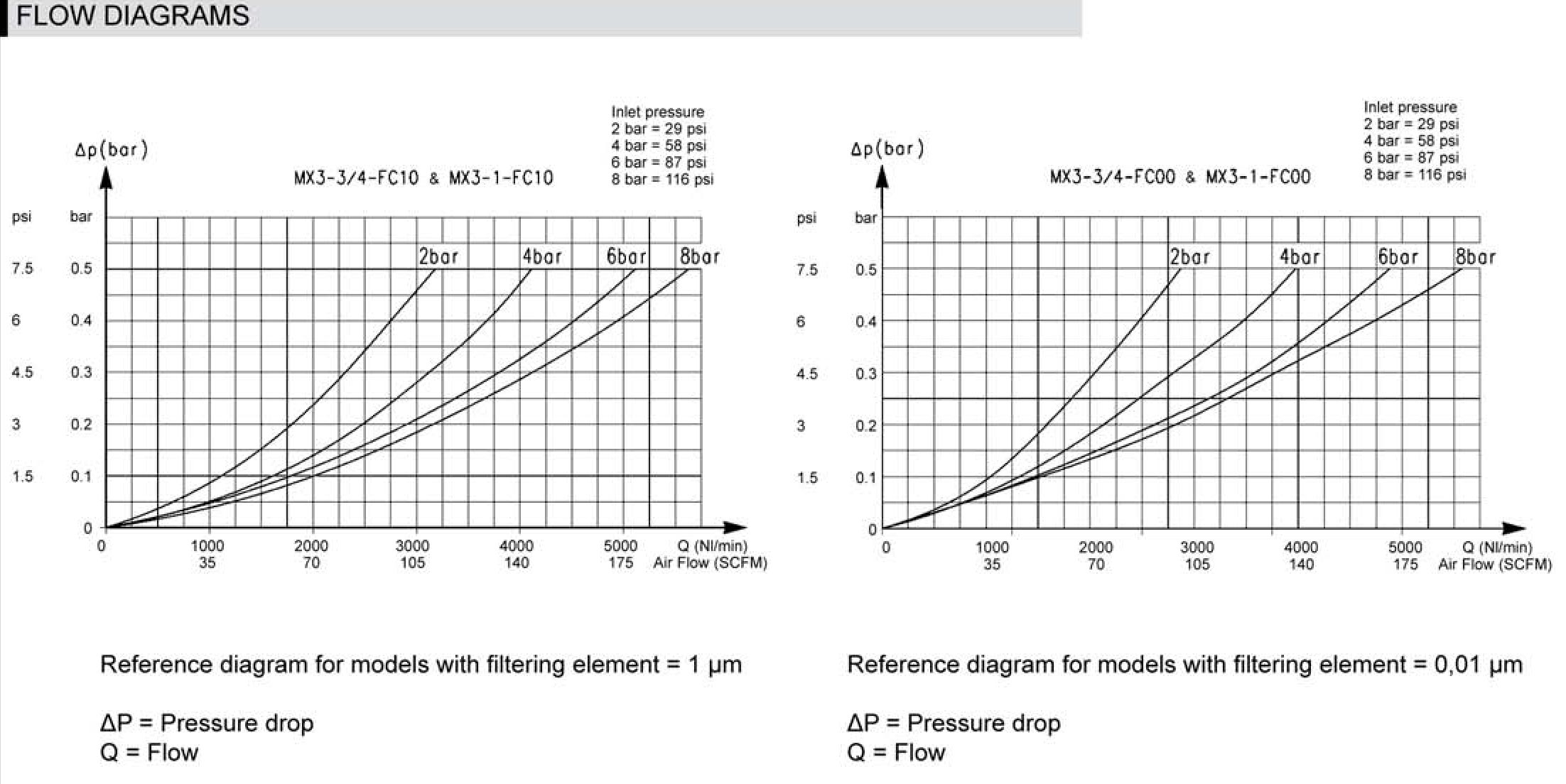

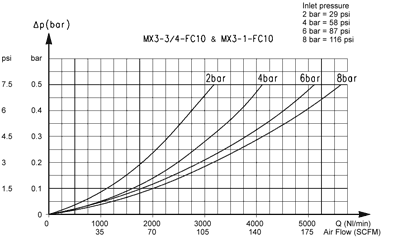

Coding Example & Flow Diagrams

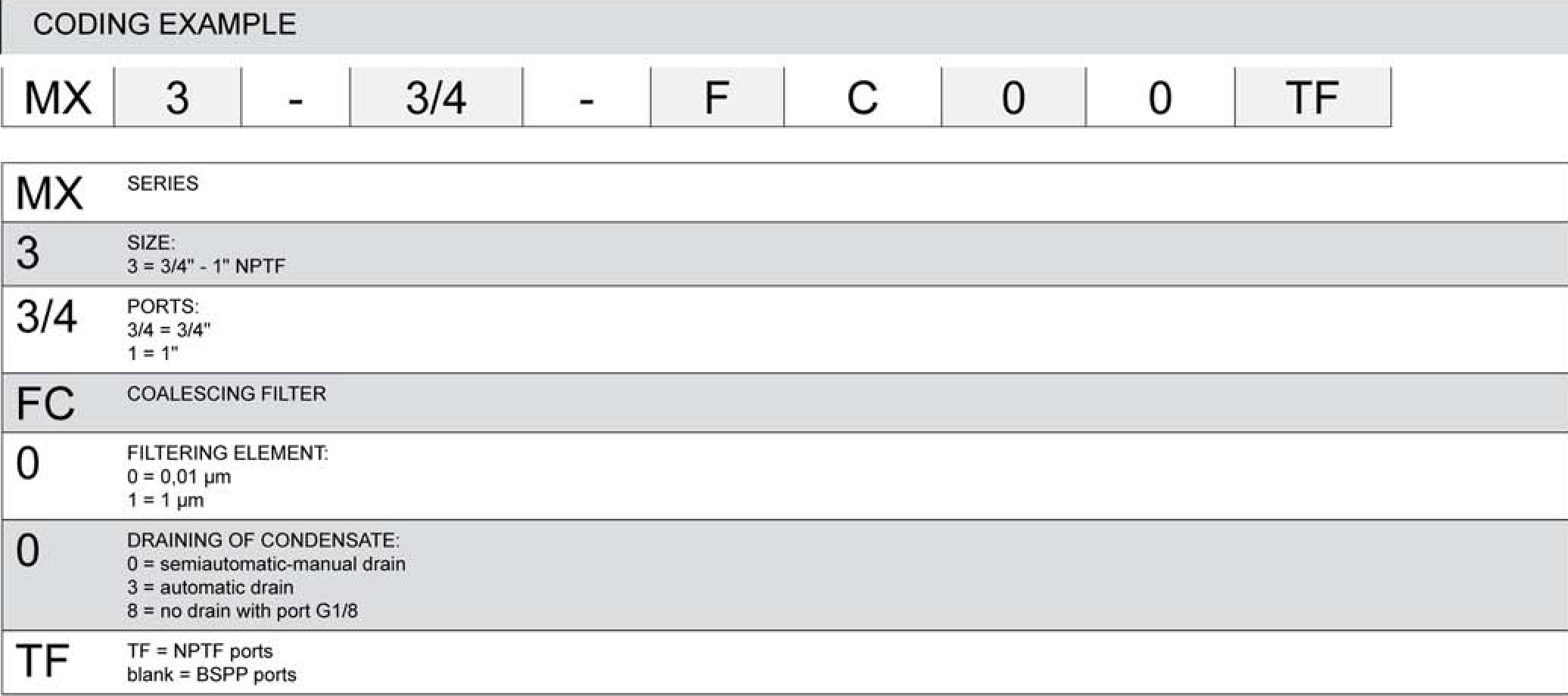

Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Coalescing Filters Series MX - Materials
Technical Drawing
Parts Materials
1 = Body Aluminium
2 = Covering Polyamide
3 = Composite Bowl with Nylon shroud Polycarbonate/Polyamide
4 = Filtering element Borosilicate
Seals NBR
Technical Specifications
Construction modular, compact
Ports 3/4" - 1" NPTF
Condensate capacity 85 cc, (approx. 3 oz.)
Weight 0,780 kg ( approx. 1.7 lbs.)
Mounting vertical in-line, wall-mounting (by means of clamps)
Operating temperature -5°C - 50°C at 16 bar (with the dew point of the fluid), (23°F - 122°F @ 232 psi, up to 140°F MAX at 145 psi)
50°C - 60°C at 10 bar (with the dew point of the fluid)
Draining of condensate manual - semiautomatic (standard), automatic
Operating pressure 0,3 - 16 bar (with automatic drain 1,5 - 12 bar)
Nominal flow see FLOW DIAGRAMS
Porosity of filtering element 0,01 µm 1 µm
Residual oil content with inlet at 3 mg/m³ < 0,01mg/m³ < 0,1mg/m³
Oil retain efficiency 99,80% 97%
Particles retain efficiency 99,99999% 99,999%
Fluid compressed air
Pre-filtering with filtering element of 1 µm it is recommended to use a filter of 5 µm
Pre-filtering with filtering element of 0,01 µm it is recommended to use a filter with residual oil of 0,1 mg/m³
