FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download

Filter-Regulators Series MX

Ports 3/4" - 1" NPTF
Innovative modular clamping system, Quick-Release, locking bayonet bowls
Filter-regulators Series MX integrate filter and pressure regulator in one unit. They are, therefore, compact and suitable for pre-filtering functions.
Available in relieving or non-relieving, they are equipped with a valve diaphragm for a direct pressure regulation and with an integrated condensate drain, manual or automatic. Moreover, they can be equipped with a built-in pressure gauge.
The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.

  • Filtering element options of 25 µm or 5 µm
  • Available versions: with built-in gauge or with ports for gauge
  • Lockable knob with mechanical stop and tamperproof lock-out features
  • Bowl locking mechanism
  • Enhanced safety features

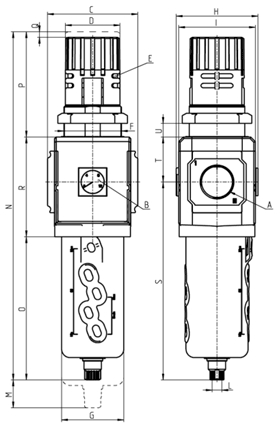

Filter-Regulators Series MX Technical Drawing
Part Number A B
(psi)
C D Ø
E
F G H I L M N O P Q R S T U
MX3-3/4-FR0004TF 3/4 0-175 3.524 2.126 .156 M57
x1.5
2.421 3.189 2.992 1/8 2.953 13.583 5.591 4.094 .197 3.898 7.736 1.752 0-.785
MX3-1-FR0004TF 1 0-175 3.524 2.126 .156 M57
x1.5
2.421 3.189 2.992 1/8 2.953 13.583 5.591 4.094 .197 3.898 7.736 1.752 0-.785

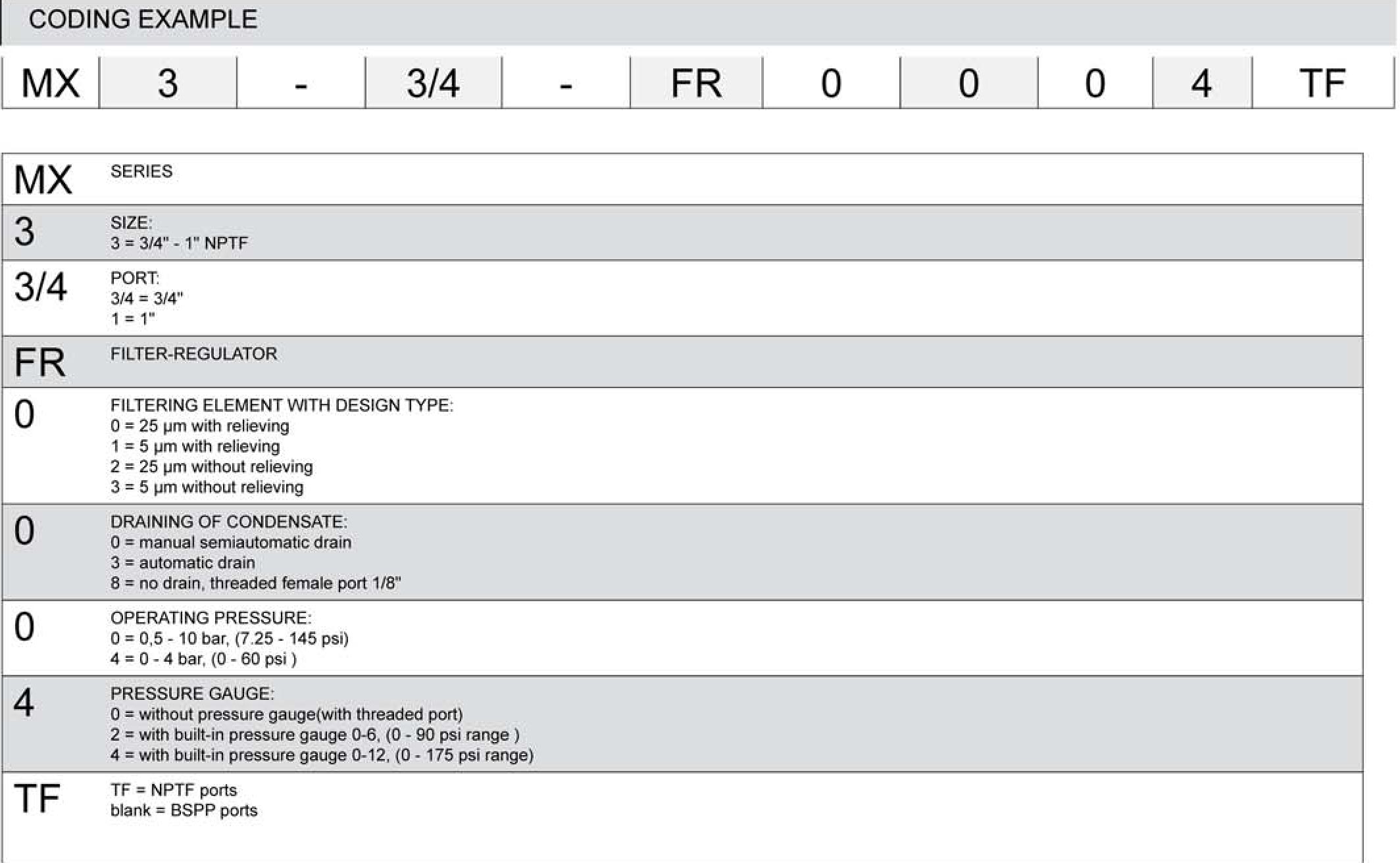

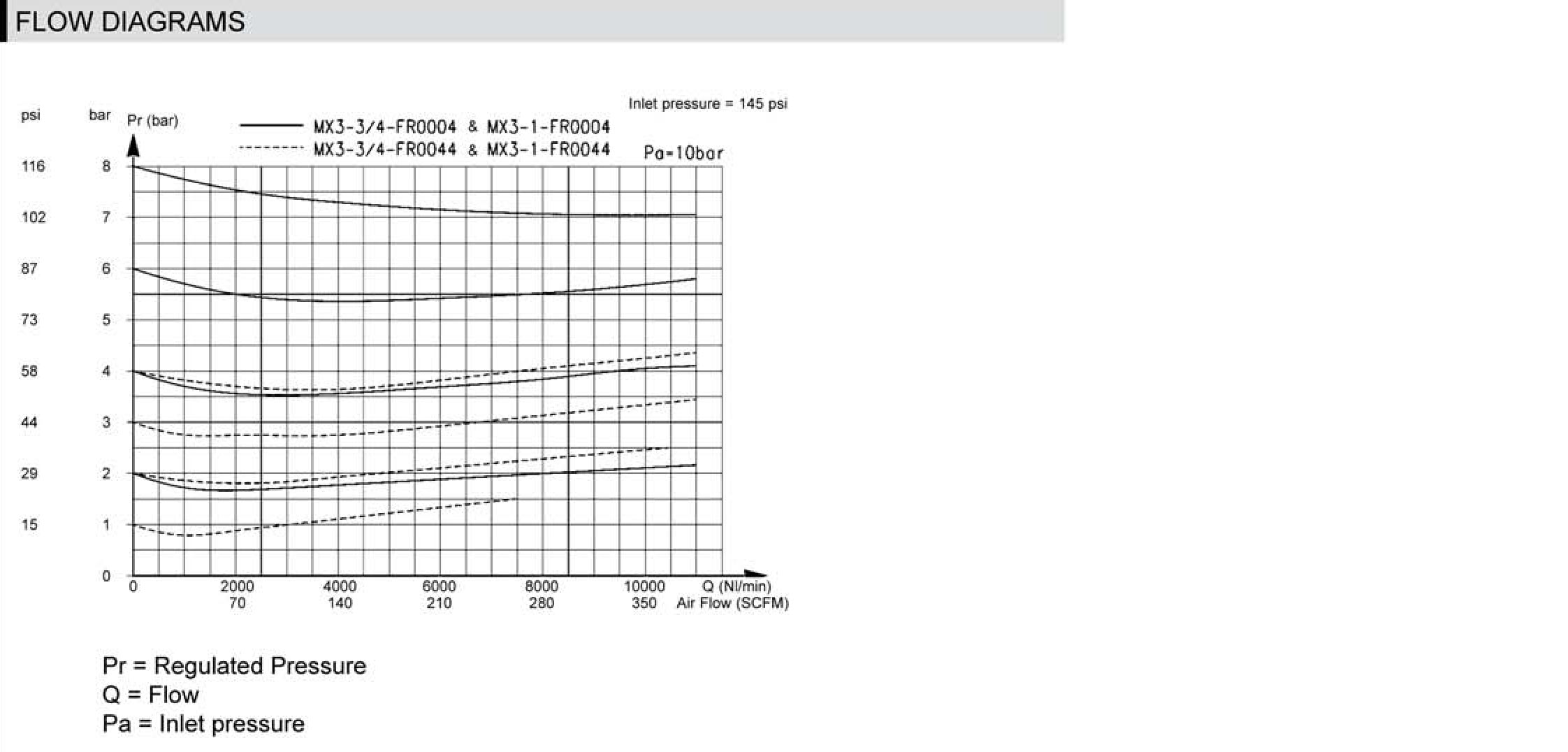

Coding Example & Flow Diagrams
Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Filter-Regulators Series MX - Materials
Technical Drawing
Parts Materials
1 = Body Aluminium
2 = Covering Polyamide
3 = Composite Bowl with Nylon shroud Polycarbonate/Polyamide
4 = Valve guide Polyacetal
5 = Filtering element Polyethylene
6 = Separation deflector Polyacetal
7 = Knob Polyamide
8 = Upper spring Zinc-plated steel
9 = Diaphragm NBR
10 = Lower spring Stainless steel
Seals NBR
Technical Specifications
Construction modular, compact with filtering element in HDPE
Materials see TABLE OF MATERIALS
Ports 3/4" - 1" NPTF
Condensate capacity 85 cc, (approx. 3 oz.)
Weight 1,250 kg ( 2.75 lbs )
Mounting vertical in-line, wall-mounting (by means of clamps), panel mounting
Operating temperature -5°C - 50°C at 16 bar (with the dew point of the fluid), (23°F - 122°F @ 232 psi, up to 140°F MAX at 145 psi)
50°C - 60°C at 10 bar (with the dew point of the fluid)
Porosity of filtering element 25 µm, 5 µm
Draining of condensate manual - semiautomatic drain options, see code key for selection
Operating pressure 0,3 - 16 bar (with automatic drain 1,5 - 12 bar, (4.5 - 232 psi, 22 - 175 psi w/ automatic drain option)
Nominal flow see FLOW DIAGRAMS
Fluid compressed air
Pressure gauge version with built-in pressure gauge or version with ports for pressure gauge (1/4 ports), available standard on all units
