camozzi Index|FRL Units|Series MC

camozzi

FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

Download & Save as PDF File PDF Download

Take-Off Blocks (Distribution-Block) Series MC

Ports 1/4", (3/8"), 1/2" NPTF
Modular, with or without internal Check-Valve
The take-off blocks when equipped with a check-valve, allow the use of non lubricated air from the vertical outlets if inserted between the regulator and the lubricator.
Otherwise, the check-valve prevents downstream lubrication from siphoning back upstream where non-lube components may be required.
If mounted as last component in a completed assembly, the distribution block requires the use of end-plates since its main horizontal flow path ports are non-threaded. Meaning, no direct threaded components can be assembled in the left-to-right flow path. ONLY end-plates can be used, unless otherwise in the middle of a typical FRL assembly.
Take-Off Blocks (Distribution-Block) Series MC Technical Drawing
Part Number C H E M N T U (NPTF)
Size
MC1-B 1.693 .157 .433 1.772 1.772 1.378 1/4" 1
MC1-B-VNR 1.693 .157 .433 1.772 1.772 1.378 1/4" 1
MC2-B 1.969 .197 .551 2.441 2.362 1.811 1/2" 2
MC2-B-VNR 1.969 .197 .551 2.441 2.362 1.811 1/2" 2

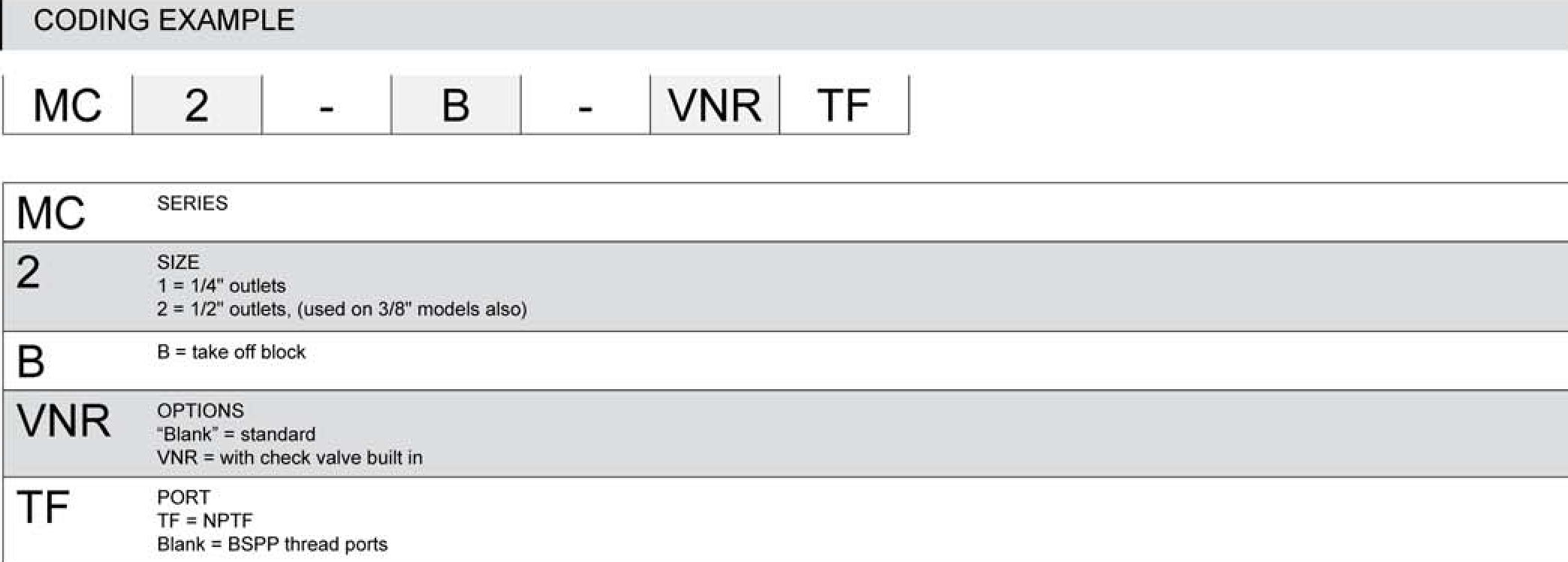

Coding Example
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction modular, compact, diaphragm type with or without internal VNR check-valve
Materials Body - Aluminum, Seals - Buna-N, internals in brass
Ports NPTF 1/4" 1/2" (3/8" assemblies utilize the larger 1/2" model)
Weight lbs .511 .836
Outlet ports NPTF 1/4" 1/2", (Threaded outlet ports only, along vertical axis. Horizontal flow-path ports are un-threaded and require assembly within an existing assembly or terminal end-plates kits.)
Mounting in-line wall or panel mounting (in any position)
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Finish enameled
Pneumatic Data
Operating pressure 0 - 16 bar (0 - 235 psi)
Nominal flow (determined at
87 psi with a pressure drop of
14.5 psi)
MC1-B = 144 SCFM; MC1-B-VNR = 83 SCFM, (with VNR check-valve)
MC2-B = 297 SCFM; MC2-B-VNR = 198 SCFM, (with VNR check-valve)
