FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

Download & Save as PDF File PDF Download

Coalescing Filters Series MC

Port 1/4", 3/8" & 1/2" NPTF
Modular with metal bowl guard and bayonet-type mounting
The Series MC coalescing filters are available with 1/4", 3/8", 1/2" NPTF port.
The bowls of these filters are made of Nylon-Grilamid with an aluminum bowl guard and have a condensate drain valve in five (5) different options.

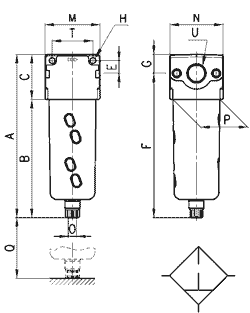

Coalescing Filters Series MC Technical Drawing
Part Number A B C E F G H M N Drain
NPTF
O
P Q T NPTF
Ports
U
MC104-FB0TF 5.630 4.016 1.614 .433 4.980 .650 .157 1.772 1.772 1/8 1.457 2.126 1.378 1/4"
MC238-FB0TF 7.244 5.236 2.008 .551 6.417 .827 2.441 2.441 2.362 1/8 2.087 2.874 1.811 3/8"
MC202-FB0TF 7.244 5.236 2.008 .551 6.417 .827 2.441 2.441 2.362 1/8 2.087 2.874 1.811 1/2"

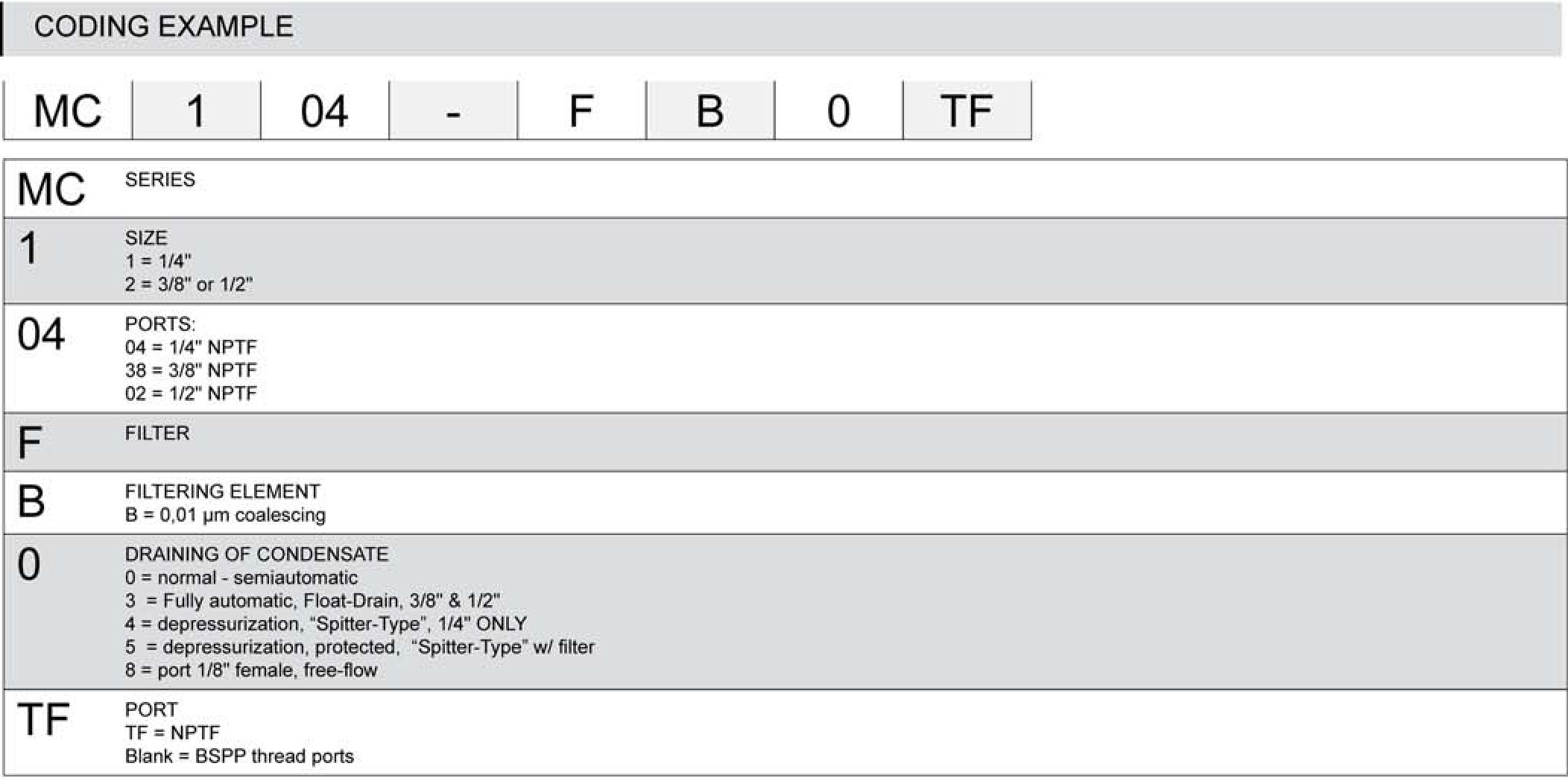

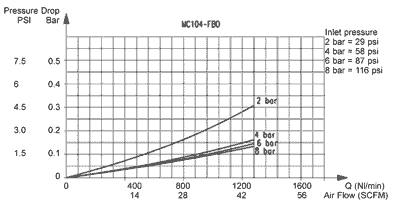

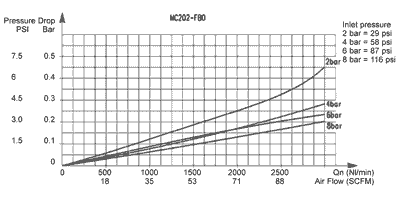

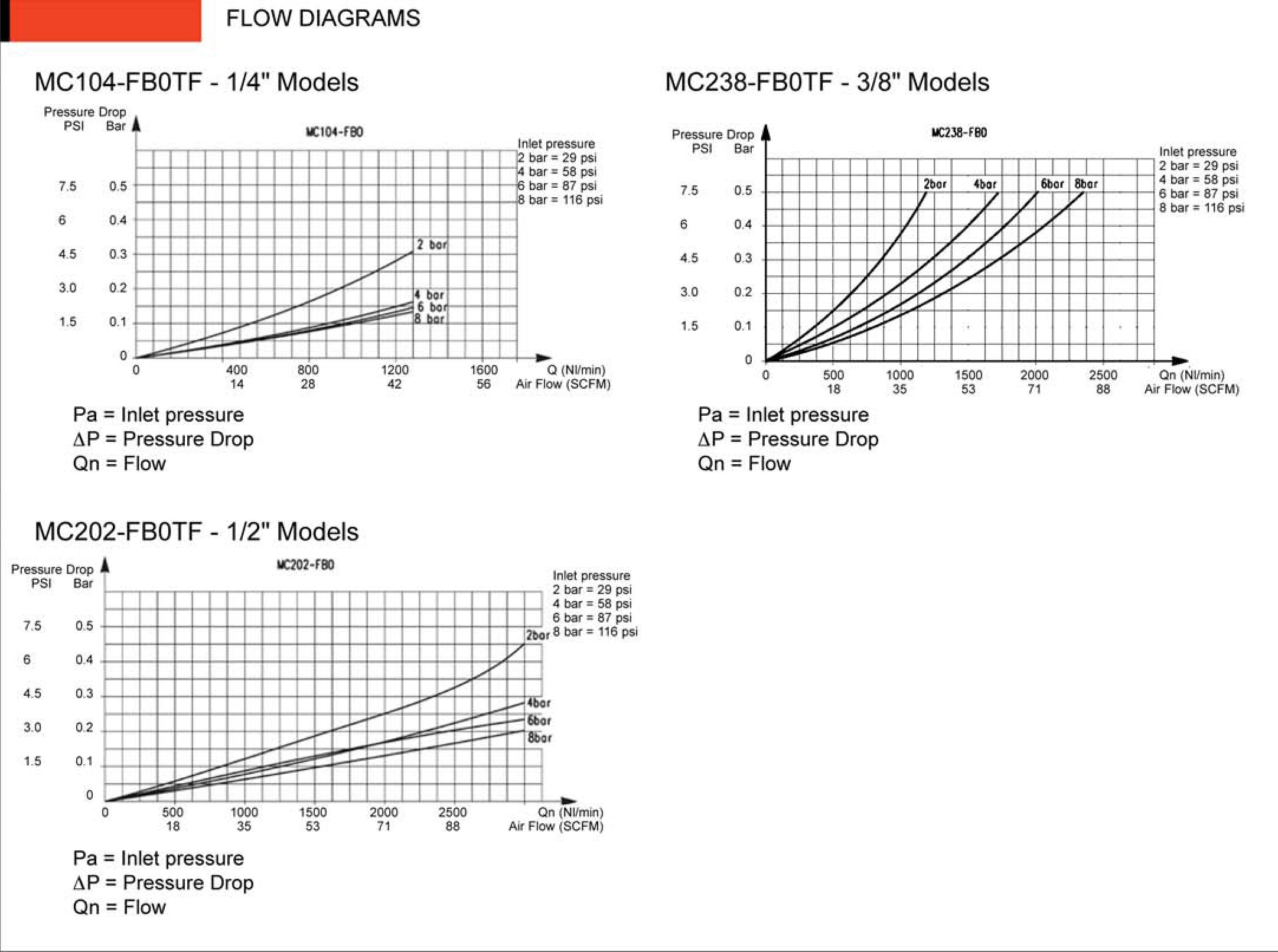

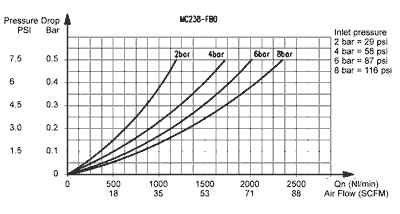

Coding Example & Flow Diagrams
Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction modular, coalescing elements
Materials Body - Aluminum alloy, Bowl - Grilamid TR 55 (Nylon compound), Seals - Buna-N, internals in brass
Port NPTF 1/4" 3/8" 1/2"
Max. condensate capacity oz .95 2.64 2.64
Weight lbs .75 1.52 1.52
Mounting vertical in line or wall-mounting
Operating temperature -5° C - 50° C, (23° F - 122° F), with Dew Point of air at least 2° C (4° F) below the min working temperature
Porosity of filtering element 0,01µm, standard (other options available on request)
Draining of condensate manual - semi-automatic standard (other options available in code Key)
Finishing enameled
Pneumatic Data
Operating pressure 0.3 - 16 bar, (with depressurizing drain P Max. of 10 bar) : 4.35 - 232 psi, (P Max 145 psi w/ depressurizing drain) - "Spitter-Type"
1.5 - 15 bar for Full Automatic float drain, (22 - 220 psi), 3/8" & 1/2" models only
Nominal flow See graph
