camozzi Index|FRL Units|Series MC

camozzi

FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

Download & Save as PDF File PDF Download

Electropneumatic/Pneumatic Isolation Valve Series MC (Shut-off)

Port 1/4", 3/8", 1/2" NPTF: Model '-V16' has Solenoid Pilot
Model '-V36' has Air Pilot, Modular
These 3/2 way valves are designed to block the air at the inlet of the FRL group to pressurize or depressurize the equipment. The valves can either be electropneumatically or pneumatically operated and can be supplied with port 1/4", 3/8", 1/2" NPTF.
In case of a solenoid valve use coil type U7... or G7... and the coil is ordered as a separate item.
Electropneumatic/Pneumatic Isolation Valve Series MC (Shut-off) Technical Drawing
Part Number A B E F G H L M N T Port
U (NPTF)
Exhaust
V
MC104-V16TF 4.724 - .433 1.515 3.208 .157 1.259 1.771 1.771 1.377 1/4" 1/8"
MC238-V16TF 5.610 - .551 1.830 3.779 .196 2.007 2.440 2.362 1.811 3/8" 1/4"
MC202-V16TF 5.610 - .551 1.830 3.779 .196 2.007 2.440 2.362 1.811 1/2" 1/4"
MC104-V36TF - 3.05 .433 1.515 - .157 1.259 1.771 1.771 1.377 1/4" 1/8"
MC238-V36TF - 3.68 .551 1.830 - .196 2.007 2.440 2.362 1.811 3/8" 1/4"
MC202-V36TF - 3.68 .551 1.830 - .196 2.007 2.440 2.362 1.811 1/2" 1/4"

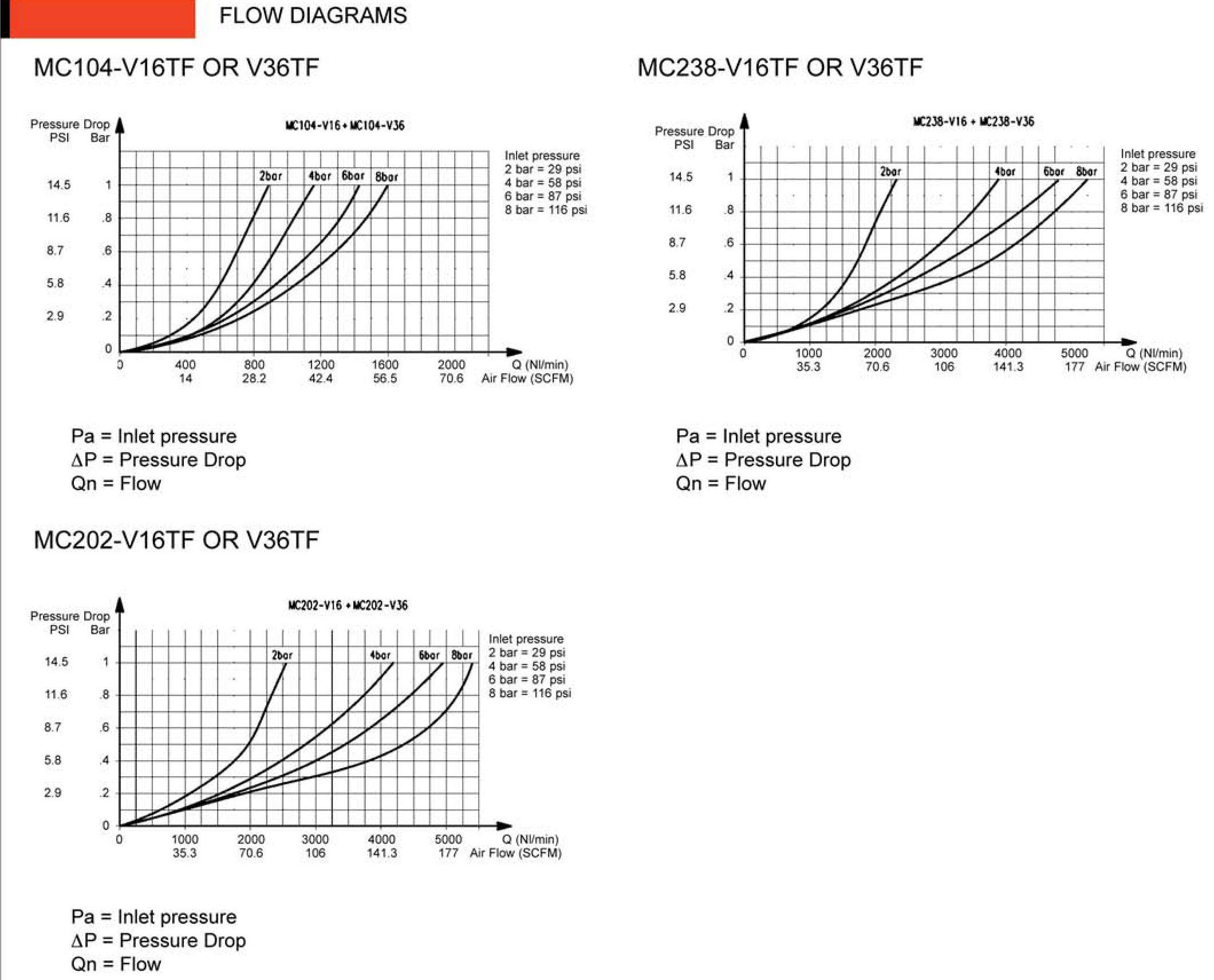

Coding Example & Flow Diagrams

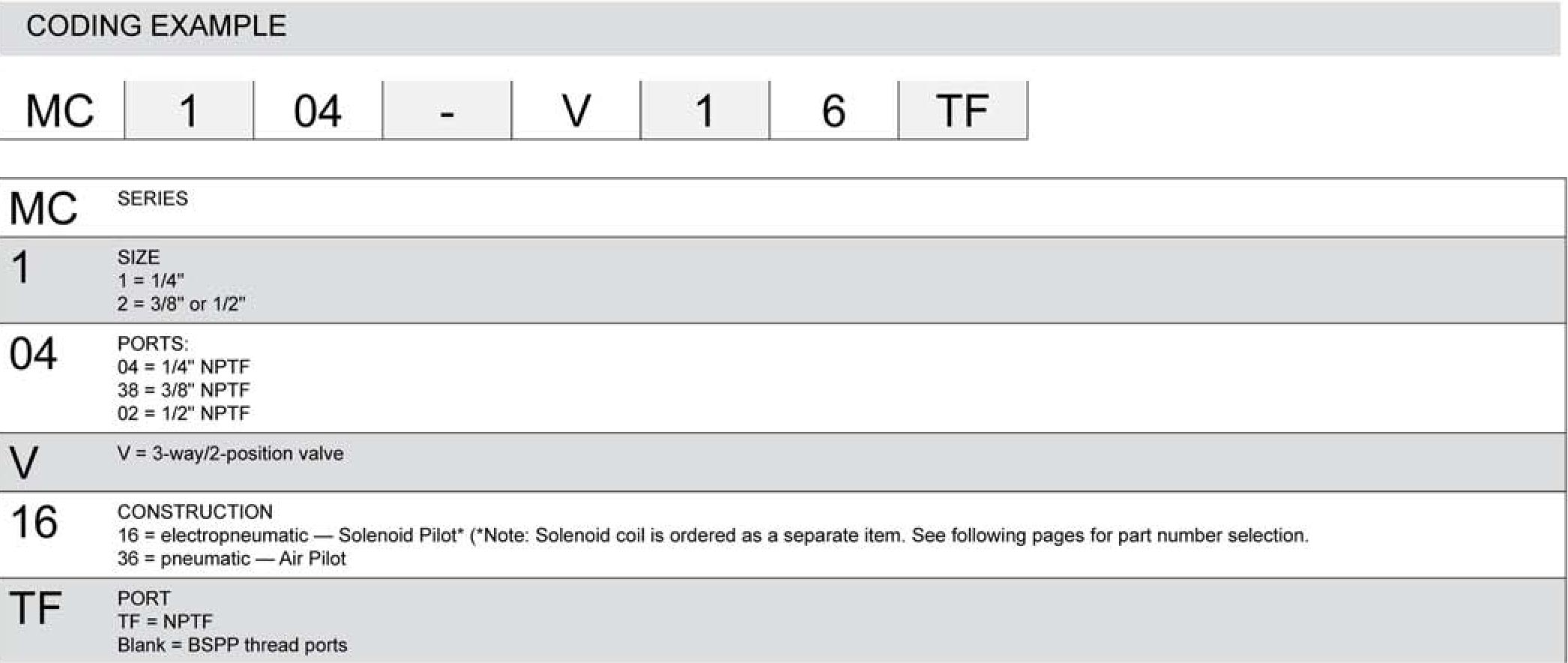

Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction compact, poppet-type
Materials Body - Aluminum alloy, Bowl - Grilamid TR 55 (Nylon compound), Seals - Buna-N
Port NPTF: 1/4" 3/8" 1/2"
Weight lbs .69 1.53 1.48
Mounting in-line wall or panel mounting (in any position)
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Finish enameled
Pneumatic Data
Operating pressure 2 - 10 bar (29 -145 psi)

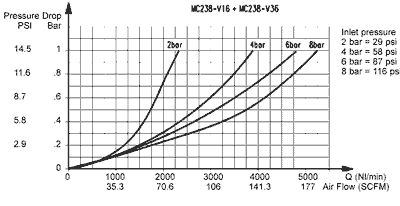

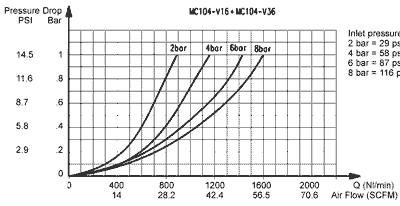

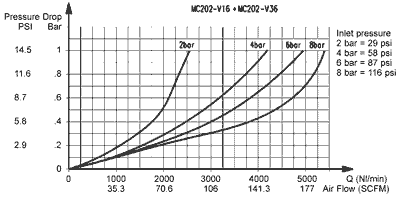

Nominal flow see graph
Outlet flow Nominal Flow in the Exhausting Direction, 1/4" NPTF - 1080 Nl/min, (38 SCFM, 3/8" & 1/2" - 2380 Nl/min ( 83 SCFM))
Flows determined at 6 bar with DP = 1 bar (Flow at 87 psi with pressure drop of 14.5 psi)
