camozzi Index|FRL Units|Series MC

camozzi

FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

Download & Save as PDF File PDF Download

Filters Series MC

Port 1/4", 3/8", 1/2" NPTF
Modular with metal bowl guard and bayonet-type mounting
The Series MC filters are available with port 1/4", 3/8" or 1/2" NPTF. The bowls of these filters are made of Nylon - Grilamid with an aluminum bowl guard and have a condensate drain valve in five (5) different options.
On request it is possible to order filters with filtering elements in different filtration ranges than those listed standard in the code key.

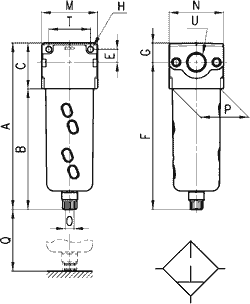

Filters Series MC Technical Drawing
Part Number A B C E F G H M N Drain
NPTF
O
P Q T NPTF
Ports
U
MC104-F00TF 5.630 4.016 1.614 .433 4.980 .650 .157 1.772 1.772 1/8 1.457 2.23 1.378 1/4
MC238-F00TF 7.244 5.236 2.008 .551 6.417 .827 .197 2.441 2.362 1/8 2.087 2.835 1.811 3/8
MC202-F00TF 7.244 5.236 2.008 .551 6.417 .827 .197 2.441 2.362 1/8 2.087 2.835 1.811 1/2

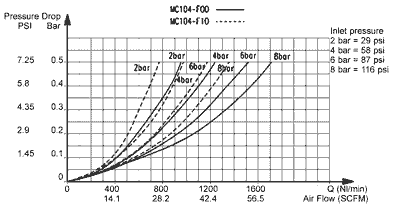

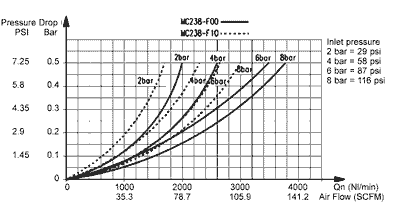

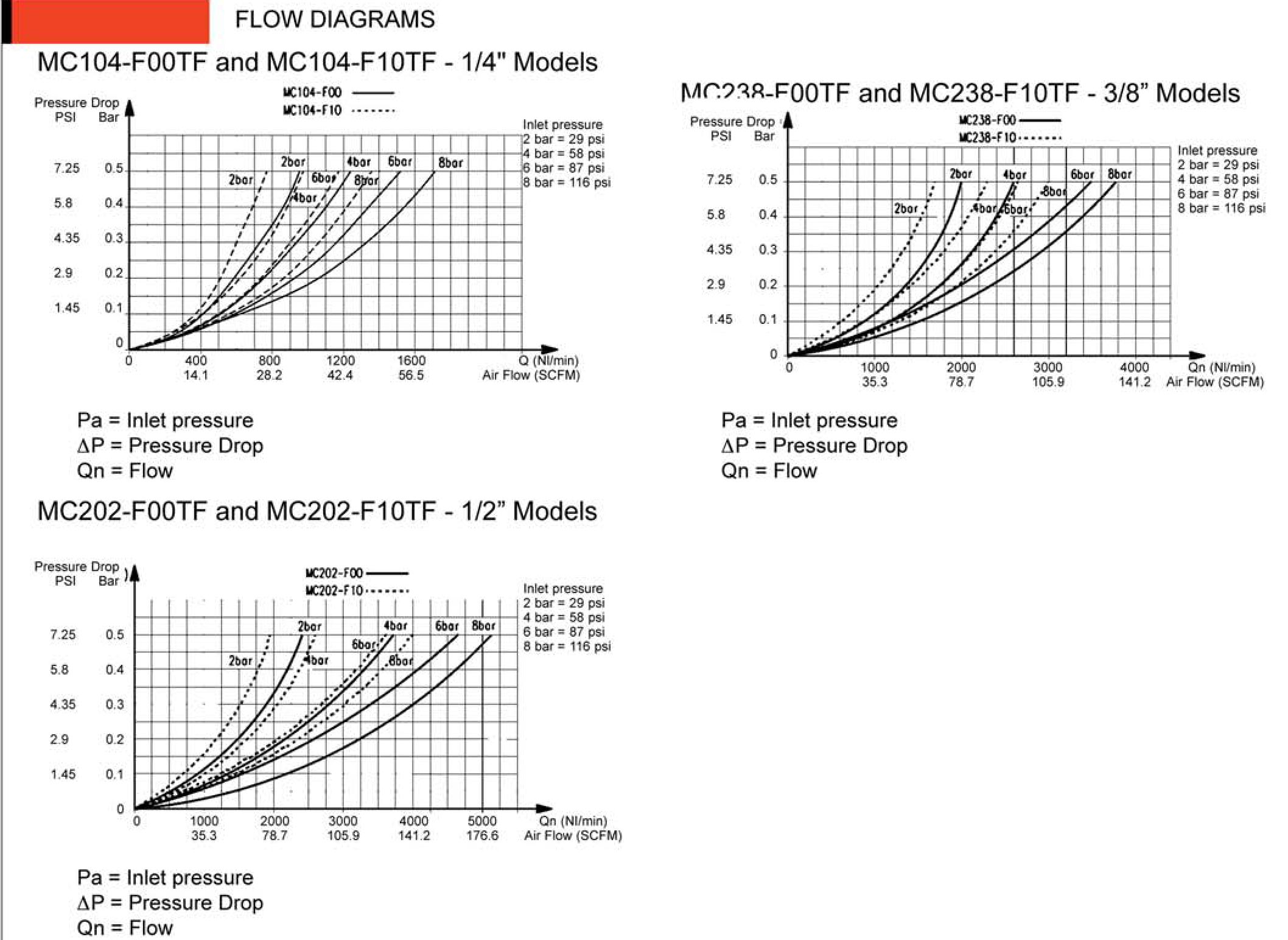

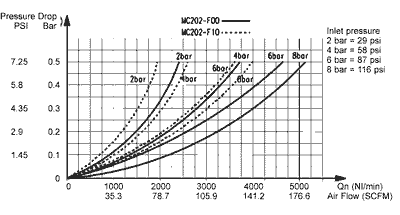

Coding Example & Flow Diagrams

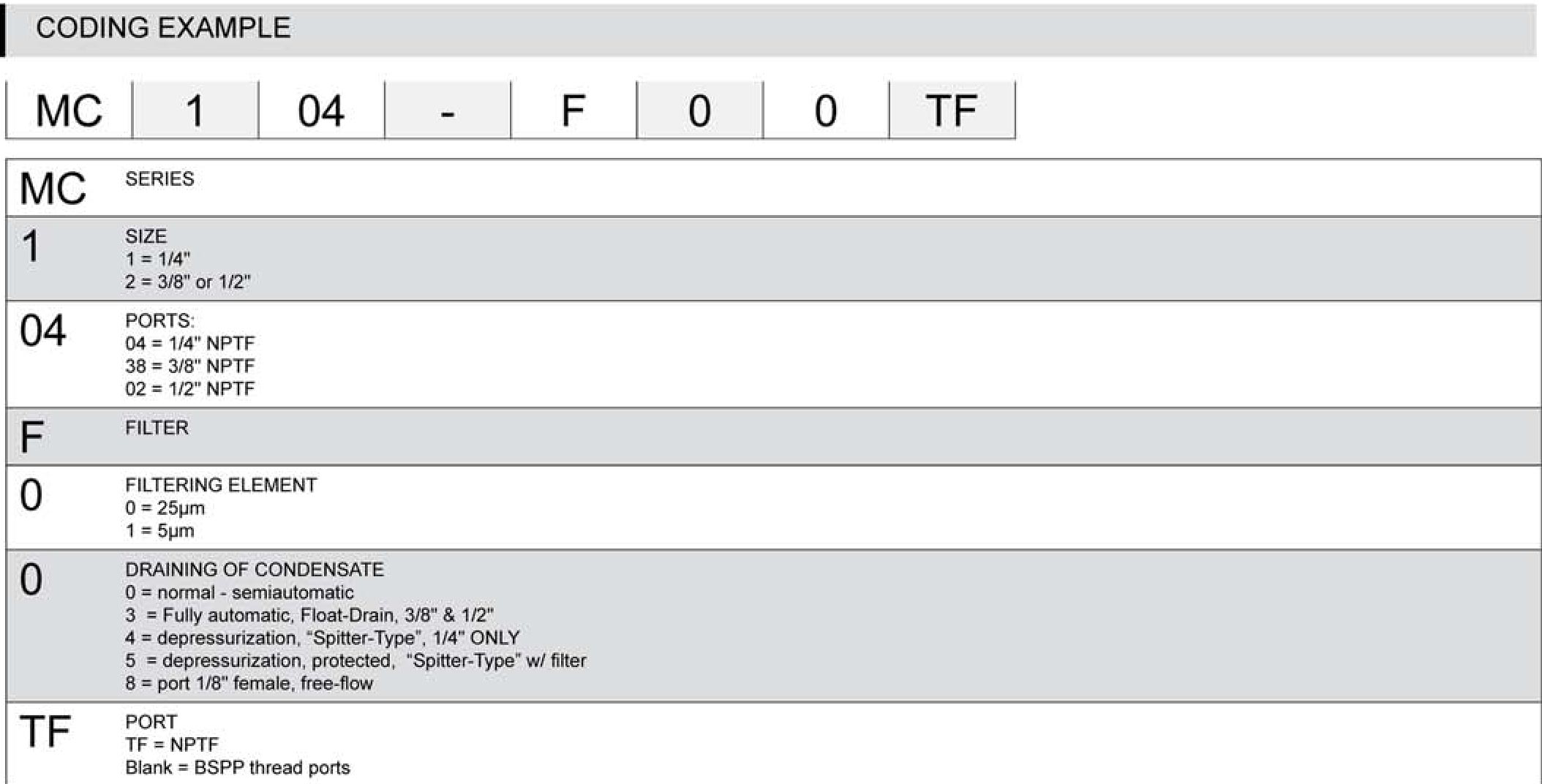

Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction compact modular with filtering element in HDPE
Materials Body - Aluminum alloy, Bowl - Grilamid TR 55 (Nylon compound), Seals - Buna-N, internals in brass
Port NPTF 1/4" 3/8" 1/2"
Max condensate capacity oz 1 2.43 2.43
Weight lbs .75 1.58 1.52
Mounting vertical in-line or wall-mounting
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Porosity of filtering element 25 µm & 5 µm upon request
Draining of condensate manual - semi automatic standard, other options available in code key
Finishing enameled
Pneumatic Data
Operating pressure 0.3 - 16 bar, (with depressurizing drain P Max. of 10 bar) : 4.25 - 232 psi, (P Max 145 psi w/ depressurizing drain) - "Spitter-Type" 1.5 - 15 bar for Full Automatic float drain, (22 - 220 psi), 3/8" & 1/2" models only
Nominal flow See graph
