FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

Download & Save as PDF File PDF Download

Manifold Pressure Regulators Series MC

Inlet port 1/4" NPTF, full Inlet pressure (non-cascading), 2 outlets per unit.
Modular
The manifold pressure regulators are available with port 1/4" NPTF.
Normally they are available with relieving diaphragm as standard and can be panel mounted.
See also: Manifold Regulators - Assembly Hardware Kits (1/4" only - MC1)

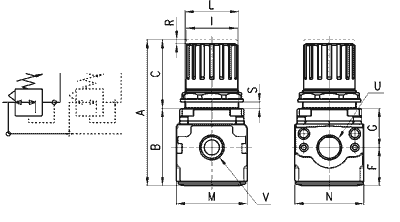

Manifold Pressure Regulators Series MC Technical Drawing
Part Number A B C F G I L M N R S T U (NPTF) V (NPTF)
MC104-M00TF 3.700 2.165 1.535 1.102 1.102 1.102 M30x1.5 1.772 1.772 .118 0-.236 1.378 1/4" 1/8"

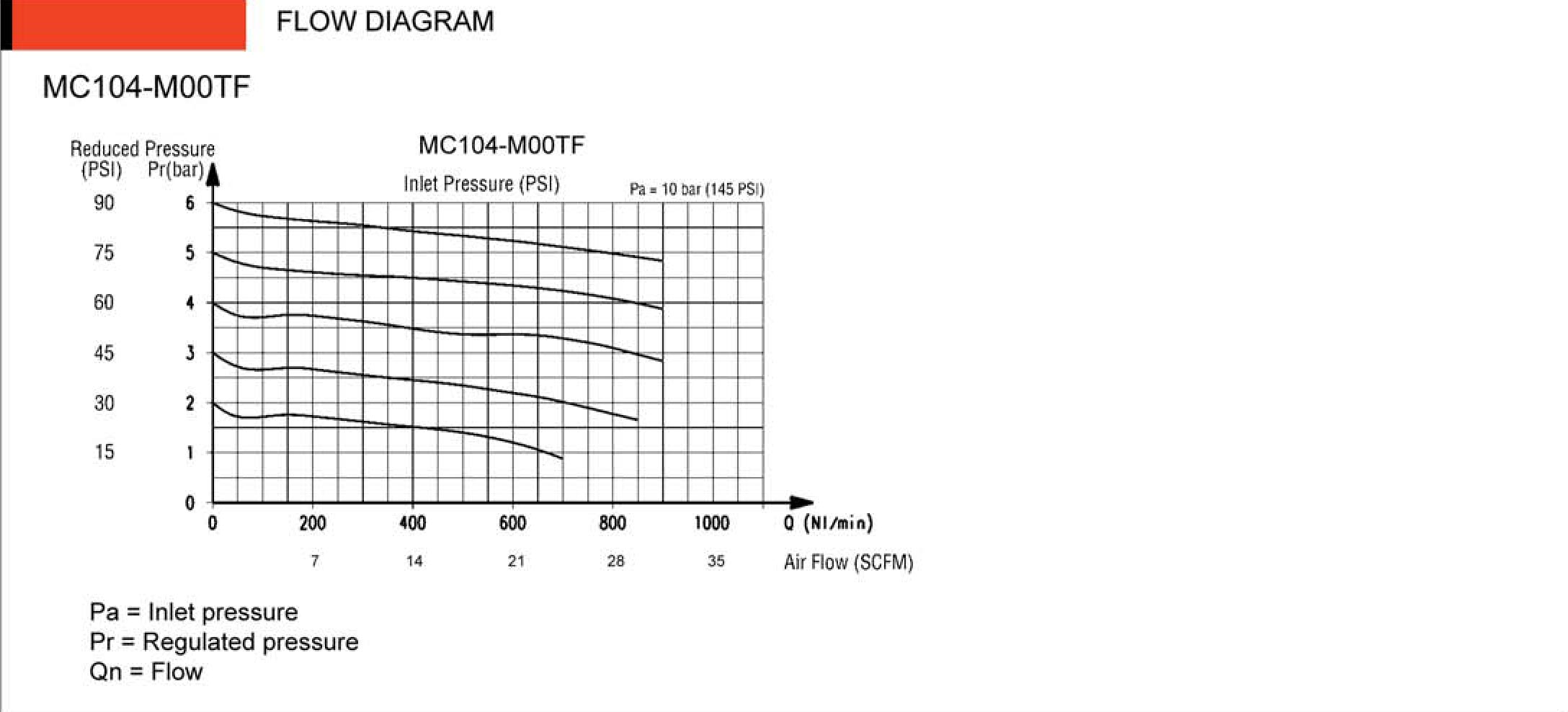

Coding Example & Flow Diagrams

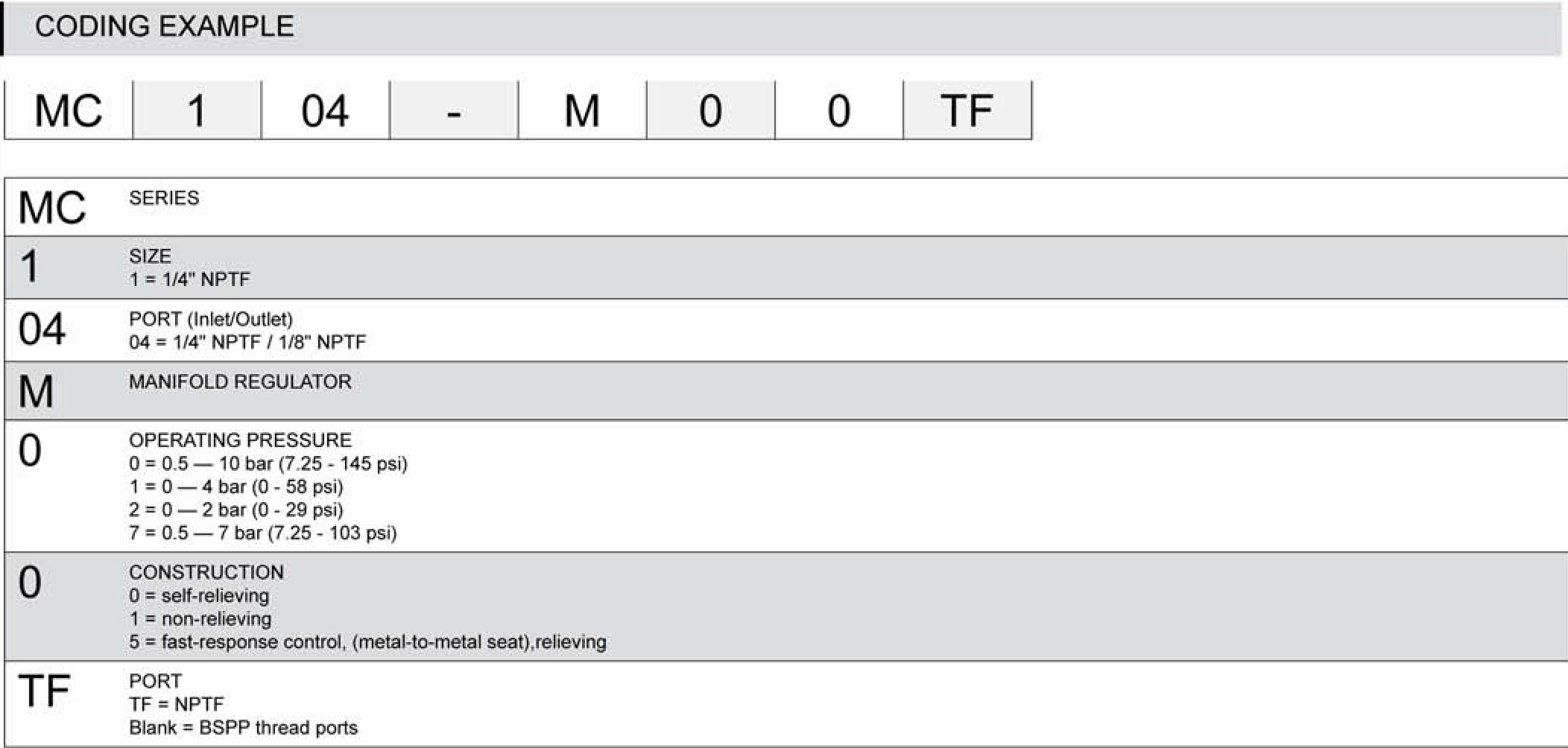

Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction modular, compact, diaphragm type
Materials Body - Aluminum alloy, Cover/Head - Grilamid TR 55 (Nylon compound), Seals - Buna-N, internals in brass
Port (Inlet/Outlet) 1/4" NPTF / 1/8" NPTF
Weight kg 0,320 = .70 lbs
Pressure gauge port/ outlet 1/8" NPTF
Mounting In-line wall or panel mounting (in any position)
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Finishing enameled
Pneumatic Data
Inlet pressure 0 - 16 bar (0 - 232 psi)
Outlet pressure 0.5 - 10 bar or 0 - 4 bar (7.25 - 145 psi or 0 - 58 psi)

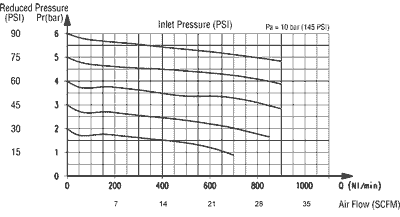

Nominal flow See graph
Secondary pressure relieving Standard
