FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

Download & Save as PDF File PDF Download

Lockable Isolation 3/2-Way Valve Series MC (Lock-out/Tag-out)

Port 1/4", 3/8", 1/2" NPTF
Modular
The valves are designed so that the downstream air pressure can be vented and the valve locked in the non passing condition to allow work to be carried out with greater safety on pneumatically actuated equipment.
Positioning of these valves is often before the FRL unit. Pulling Manual handle in the "UP" direction shuts off inlet flow and exhausts all downstream pressure via the threaded port in the bottom of the unit. (Silencers can be installed to minimize noise). With handle extended "UP", lock-out hole (0.315" OD), is exposed in handle spool for locks or hasps. ( Valve shown in illustration in "DOWN" position for normal inlet flow to pass.)

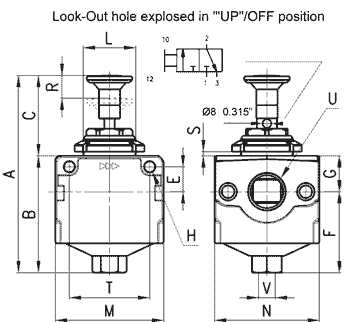

Lockable Isolation 3/2-Way Valve Series MC (Lock-out/Tag-out) Technical Drawing
Part Number A B C E F G H L M N R S T U V Actuation Force
(at 85 psi)
MC104-V01TF 3.866 2.14 1.713 .43 1.51 .629 .217 M30x1.5 1.77 1.77 .354 -.236 1.377 1/4" 1/8" 6.5 lbs
MC238-V01TF 4.44 2.63 1.81 .55 1.83 .807 .217 M30x1.5 2.44 2.36 .518 -.236 1.81 3/8" 1/4" 7.0 lbs
MC202-V01TF 4.44 2.63 1.81 .55 1.83 .807 .217 M30x1.5 2.44 2.36 .518 -.236 1.81 1/2" 1/4" 7.0 lbs

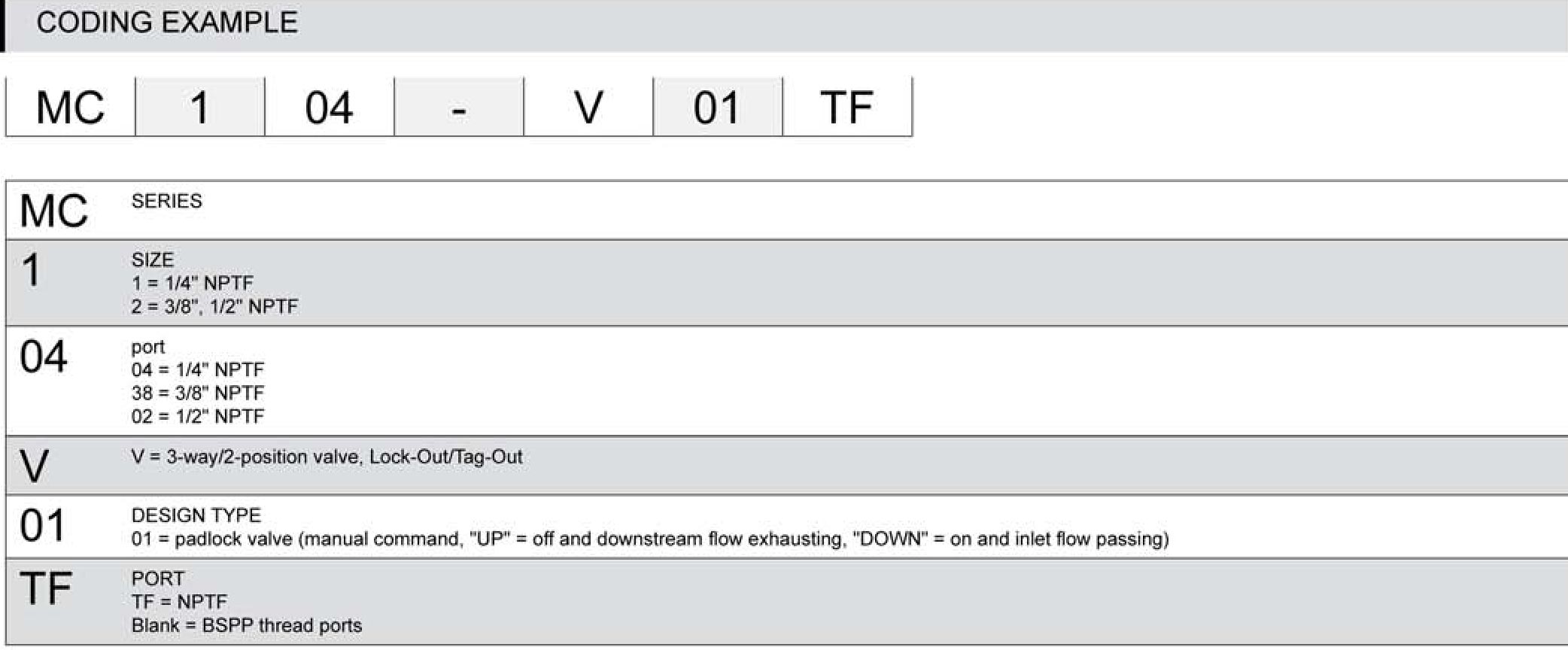

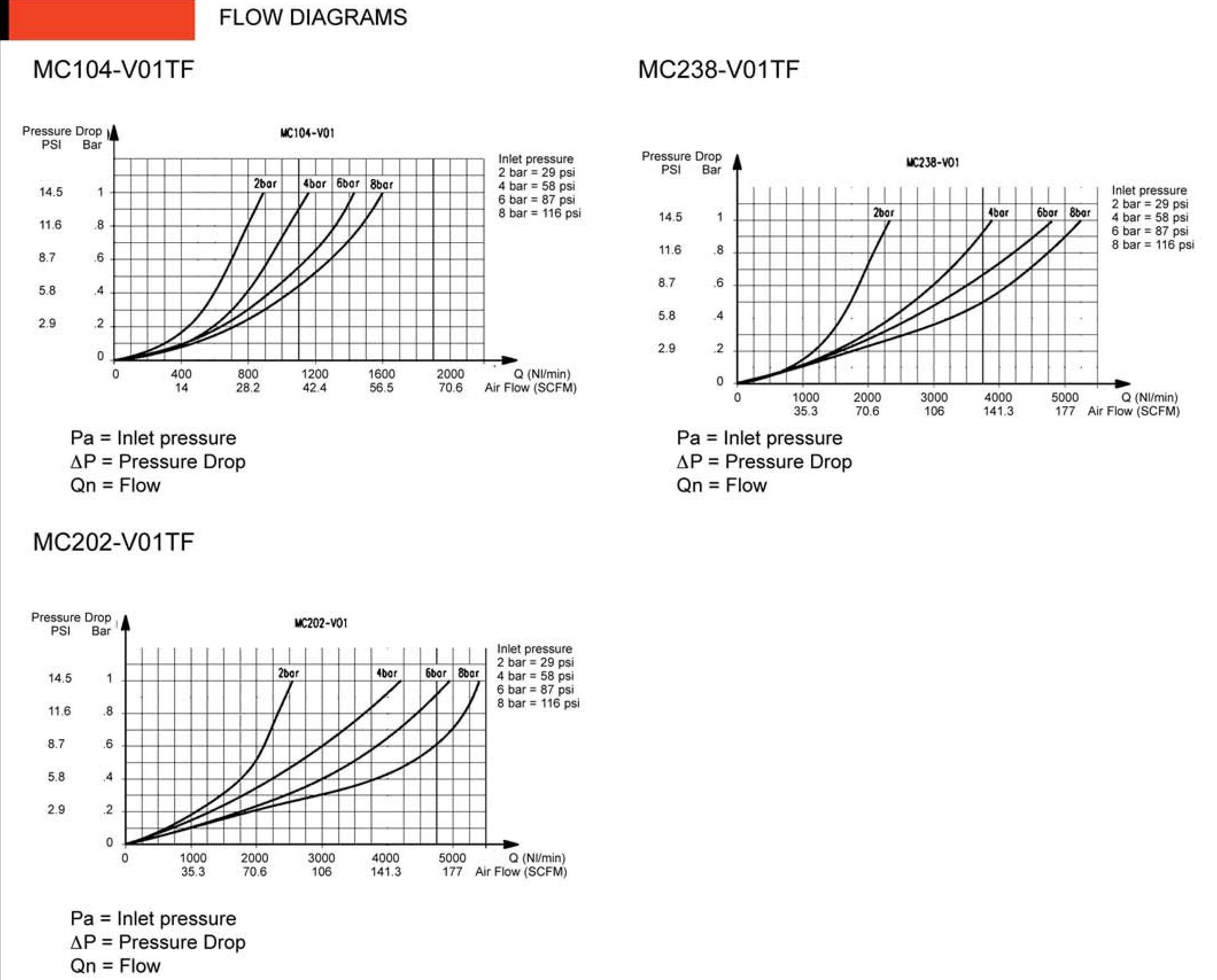

Coding Example & Flow Diagrams
Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction modular assembly, compact, poppet type
Materials Body - Aluminum alloy, Bowl - Grilamid TR 55 (Nylon compound), Seals - Buna-N
Port NPTF: 1/4" 3/8" 1/2"
Weight lbs .61 1.2 1.13
Mounting in-line, wall or panel mounting (in any position)
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Finish enameled
Pneumatic Data
Operating pressure 0 - 16 bar (0 - 232 psi)

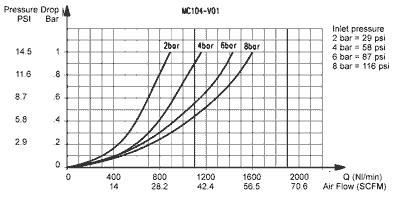

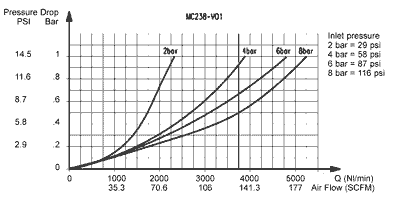

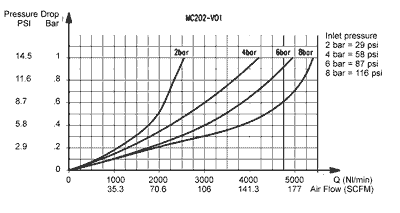

Nominal flow see graph
Nominal flow in the exhausted
direction
Nominal Flow in the Exhausting Direction, 1/4" NPTF - 1080 Nl/min, (38 SCFM, 3/8" & 1/2" - 2380 Nl/min ( 83 SCFM))
  Flow determined at 6 bar with DP= 1 bar (Flow at 87 psi with Pressure Drop of 14.5 psi)
