camozzi Index|FRL Units|Series MC

camozzi

FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

Download & Save as PDF File PDF Download

Lubricators Series MC

Port 1/4", 3/8", 1/2" NPTF
Modular with metal bowl guard and bayonet-type mounting
The Series MC lubricators are available with port 1/4", 3/8", 1/2" NPTF. The bowls of these lubricators are made of metal and are equipped with a transparent viewer. The oil flow can be monitored via the small transparent cap and regulated by means of the special adjusting screw.
Lubricators Series MC Technical Drawing
Part Number A B C E F G H M N O P Q T U (NPTF)
MC104-L00TF 5.827 3.268 1.575 .984 .433 4.213 1.614 .157 1.772 1.772 1.457 3.307 1.378 1/4
MC238-L00TF 7.362 4.528 1.969 .866 .551 5.670 1.693 .197 2.441 2.362 2.087 4.606 1.811 3/8
MC202-L00TF 7.362 4.528 1.969 .866 .551 5.670 1.693 .197 2.441 2.362 2.087 4.606 1.811 1/2

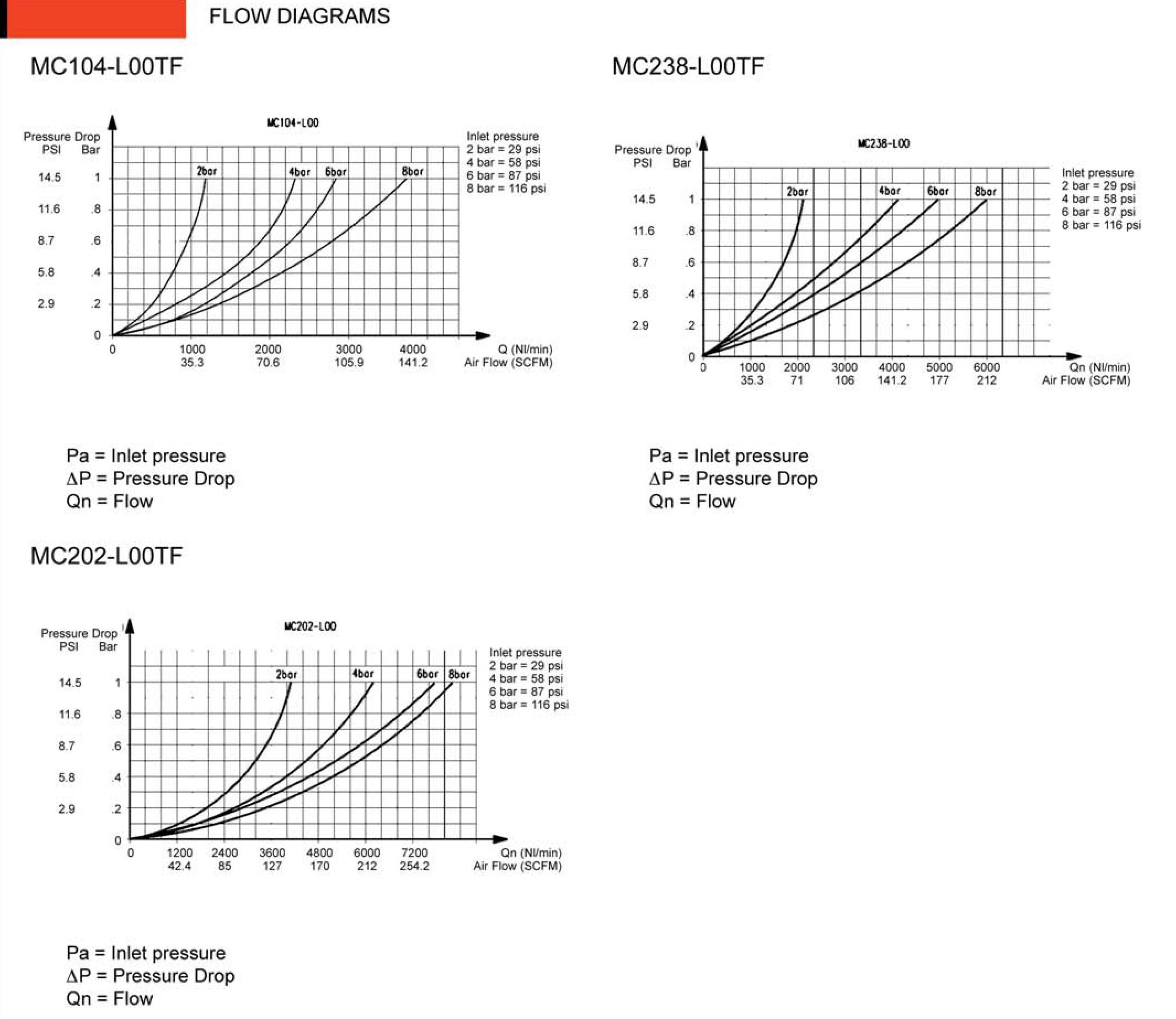

Coding Example & Flow Diagrams

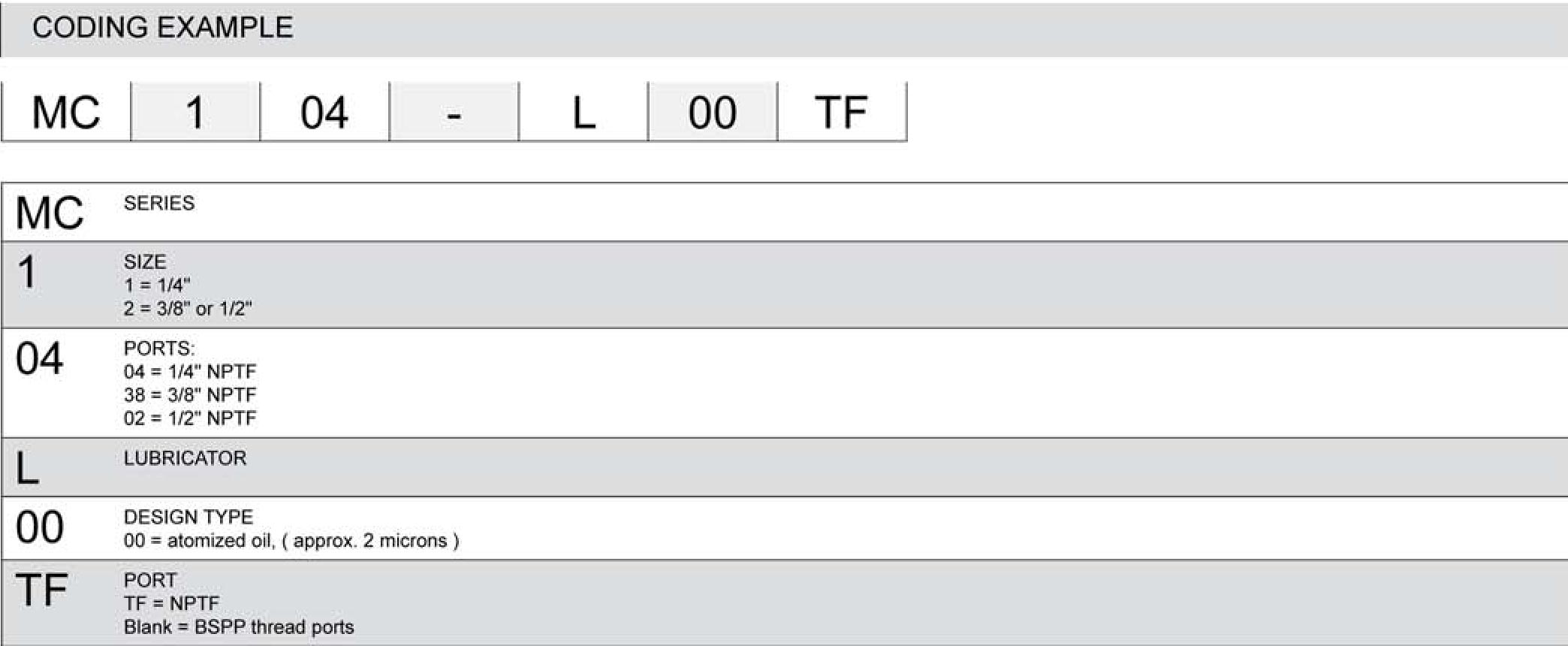

Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction modular compact
Materials Body - Aluminum alloy, Bowl - Grilamid TR 55 (Nylon compound), Seals - Buna-N
Port NPTF: 1/4" 3/8" 1/2"
Oil capacity oz 1.25 5.75 5.75
Weight lbs .75 1.65 1.49
Mounting vertical in-line or wall-mounting
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Oil refilling without pressure only in 1/4" Size : While pressurized for 3/8" & 1/2"
Oil for lubrication from 3°- 10°E (ask our engineers for types) (approx. 32 centistrokes)
Oil consumption recommendation 2 - 5 drops every 1000 Nl of air consumed (35 SCFM)
Droplet size > 2µm (10 drops = 1cm3³)
Finish enameled
Pneumatic Data
Operating pressure 0 - 16 bar (0 - 232 psi)

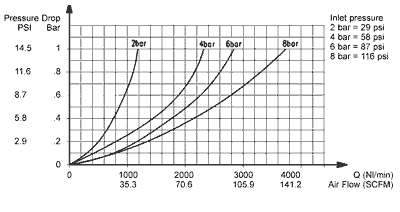

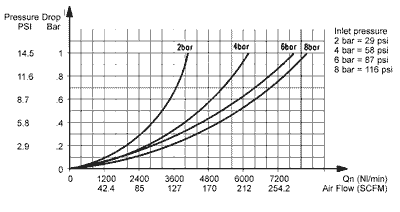

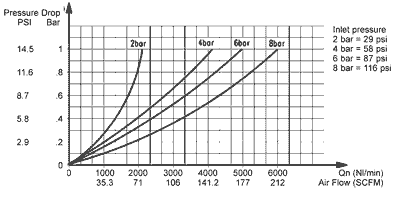

Nominal flow see graphs
Min. air consumption for lubr.
(Nl/min)
1/4", 3/8", 1/2" NPTF
at 1 bar (14.5 psi) 8 (.28 SCFM)
at 6 bar (87 psi) 15 (.53 SCFM)
