FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

Download & Save as PDF File PDF Download

Soft Start Valve Series MC

Innovative modular clamping system
Ports 1/4", 3/8", 1/2" NPTF
The Series MC sort start valve is used to avoid damaging people or equipment when pressurizing pneumatic systems containing cylinders.
The features of these components allows one to pressurize equipment up to 50% of the set outlet
reduced pressure, after which 100% is reached rapidly.
The usual location of the soft start valve is after the FRL. The modular design allows for perfect adaptability with all Series MC. A pressure switch can be mounted into the upper part of the unit after removal of the S2610 1/8 plug.
An electrical or pneumatic 3 way Shut-Off valve may or may not be installed before the unit to allow Depressurization. The brass adjustment screw in the head cap varies the timing constant and the pressure ramp-up rate.

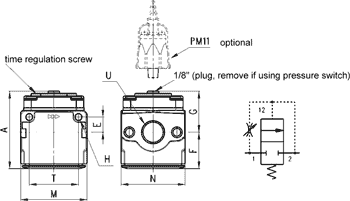

Soft Start Valve Series MC Technical Drawing
Part Number A E F G H M N T U (NPTF)
MC104-AVTF 2.343 .433 1.122 1.220 .157 1.772 1.772 1.378 1/4
MC238-AVTF 2.854 .551 1.339 1.516 .197 2.441 2.362 1.811 3/8
MC202-AVTF 2.854 .551 1.339 1.516 .197 2.441 2.362 1.811 1/2

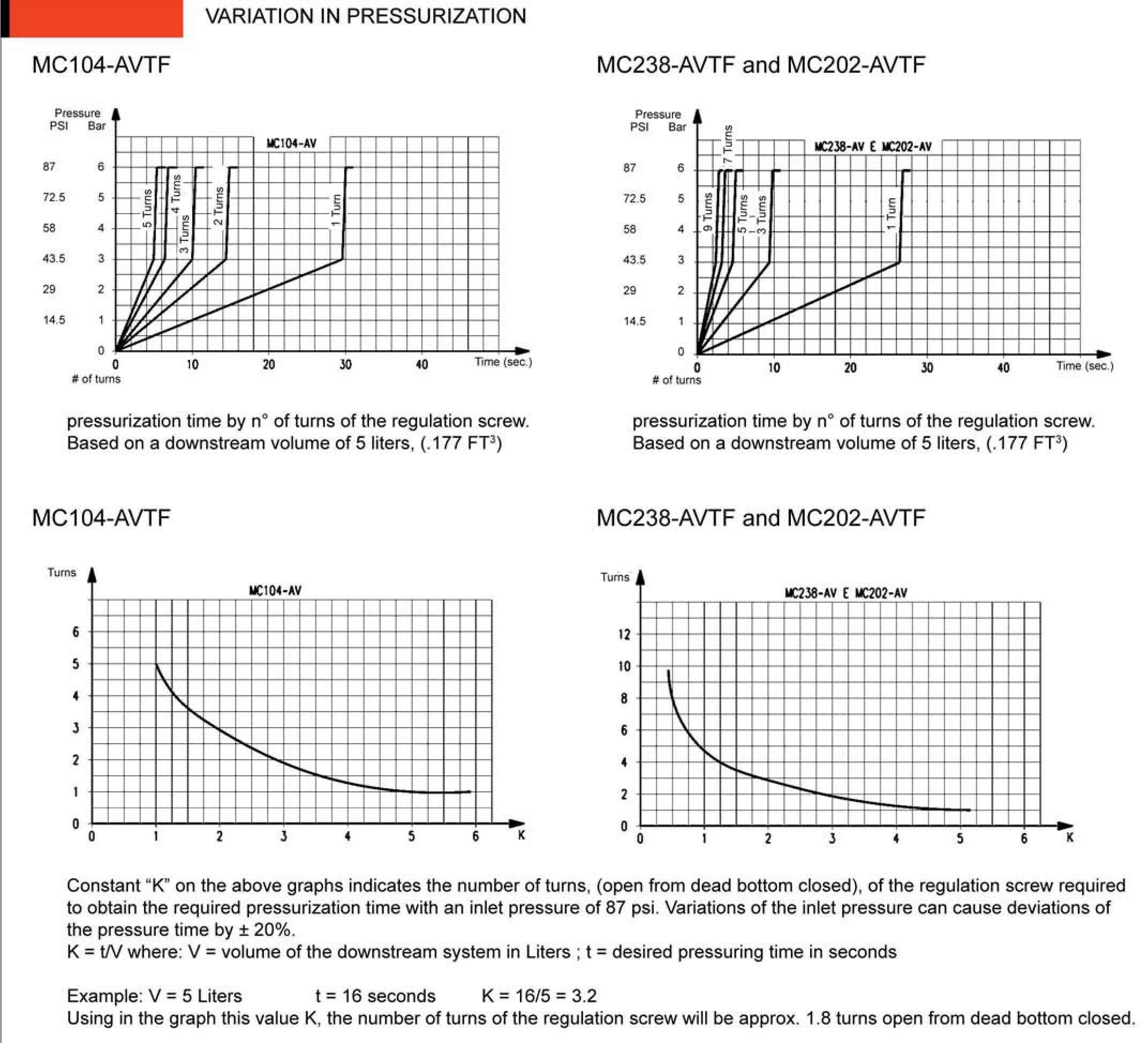

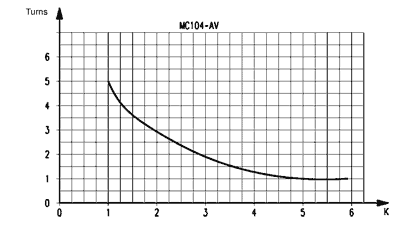

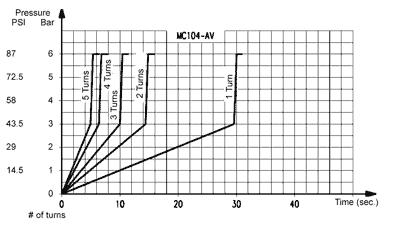

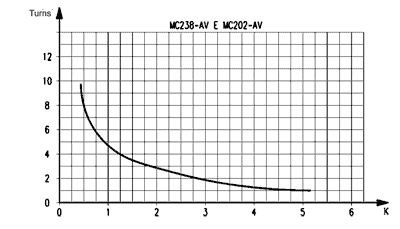

Coding Example & Flow Diagrams
Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction modular, compact, poppet type
Materials Body - Aluminum, Cover - Nylon, Seals - Buna-N, internals in brass
Ports NPTF 1/4" 3/8" 1/2"
Weight lbs .06 1.250 1.25
Mounting in-line wall or panel mounting (in any position)
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Finish enameled
Pneumatic Data
Operating pressure 2 - 10 bar (29 - 145 psi)
Nominal flow (determined at 6
bar with DP1)
1/4" - 1850 Nl/min (64.7 SCFM), 3/8" - 4000 Nl/min (140 SCFM), 1/2" - 4350 Nl/min (152 SCFM)
