FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

Download & Save as PDF File PDF Download

FRL Series MC - Completed Assemblies - Assembly Group TN
(coils sold separately, not included in assemblies).
Shown with PM11 - not included, only for illustration purposes

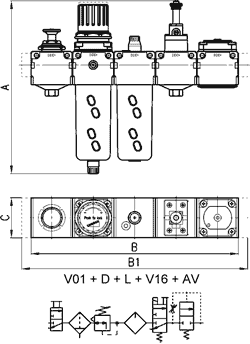

FRL Series MC - Completed Assemblies - Assembly Group TN Technical Drawing
Dimensions (in Inches)
Model A B C Flow Nl/min SCFM
MC104-TN-5TF 8.189 8.858 1.772 1450 51.2
MC238-TN-5TF 10.197 12.205 2.362 4800 169.5
MC202-TN-5TF 10.197 12.205 2.362 4950 175

Dimensions (in Inches)
Model A B1 C Flow Nl/min SCFM
MC104-TN-5-FLTF 8.189 8.858 1.772 1450 51.2
MC238-TN-5-FLTF 10.197 12.205 2.362 4800 169.5
MC202-TN-5-FLTF 10.197 12.205 2.362 4950 175
Coding Example
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction modular, compact, either with or without end-plate flange kits.
Materials Body - Aluminum, Heads/Covers - Nylon, Bowls - Nylon (Grilamid), Bowl Guard - Aluminum, Seals - Buna-N, internals in brass
Ports 1/4" - 3/8" - 1/2" NPTF
Mounting vertical, in-line or wall-mounting
Finish enameled
Pneumatic Data
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Flow determined at 87 psi inlet supply with pressure drop of 14.5 psi (Pressure drop of 7.25 for FRL assembly group utilizing "R00", instead of "D00" models.)
