CAMOZZI Valves
Manual, Mechanical & Air-Pilot

Series 2 - Mechanically Operated Minivalves

Download & Save as PDF File PDF Download

Minivalves Mod. 235-985 and Mod 234-985 (Cv = .06)

Poppet Type, 3-way/2-position normally closed, Plunger - Bulkhead panel mount
Minivalves Mod. 235-985 and Mod 234-985
Actuating force at 6 bar (87 psi) = 6N (1.35 lbs.)

Operating phases:
A = total stroke
B = pre-stroke
C = effective stroke

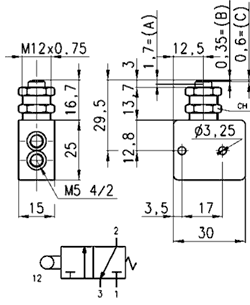

Technical Drawing
Part Number Ports
235-985 10-32 UNF
234-985 5/32" O.D.
Coding Example
Coding Example
(Click Image to Enlarge)
Technical Specifications
Valve group 3-way/2-position
Construction Poppet type
Mounting On consoles
Material Anodized body, Brass poppet gate, Buna-N seals, nickel-plated brass plungers
Threaded port sizes M5 (10-32 UNF) thread, or 4 mm O.D. cartridge (5/32" O.D. tube connect)
Installation Bulkhead, or single panel mount
Operating temperature 32°F - 175°F, (dry air necessary down to -4°F)
Fluid Filtered air (25 micron or less recommended)
Lubricant Not required; otherwise, only oil compatible with Buna-N, (3° - 10°E), (ISOVG 32 grade; 32 centistrokes)
Pneumatic Data
Operating pressure 2 - 10 bar (30 - 145 psi)
Nominal pressure 6 bar (87 psi)
Nominal flow *Qn = 60 NL/min. (2.12 SCFM)
Nominal diameter 2.5 mm
Cv Rating 0.06
*Qn flowrate (SCFM) determined with a supply pressure of 6 bar, (87 psi), and with a pressure drop of 1 bar, (14.5 psi).
**Dimensions are in millimeters
