Camozzi Index|Valves|Manual Valves


camozzi

CAMOZZI Valves
Manual, Mechanical & Air-Pilot

Ball Valves - Full Flow Design - NPTF/Inch

Download & Save as PDF File PDF Download

Ball Valve, Series 2960 L-Passage, 3-way/2-position, Lockable

These valves are constructed of a brass body, a steel handle, a hardened chrome-plated brass ball, and a teflon seat. These valves are suitable for industrial, pneumatic, hydraulic, and various domestic installations. Among the various types of compounds which can be transported through these valves are steam, gasoline, fuel, oils, kerosene, acids, and compressed air.
Ball Valve, Series 2960 L-Passage, 3-way/2-position, LockableSeries 2960 L-Passage
Technical Drawing
Size Ø P Ø H l1 L m CH R h Ø a Ø b Ø c d e f g Ø n CV psi Lbs in-Lbs
1/4" .39 1.34 .39 2.64 1.32 .86 4.72 2.44 .87 .23 1.42
(ISO F03)
.77 .20 1.20 .35 1.49 .35 3.26 400 1.22 53.1
3/8" .43 1.34 .40 2.64 1.32 .86 4.72 2.44 .87 .23 1.42
(ISO F03)
.77 .20 1.20 .35 1.49 .35 3.50 400 1.16 53.1
1/2" .43 1.34 .53 2.87 1.44 1.06 4.72 2.44 .87 .23 1.42
(ISO F03)
.77 .20 1.20 .35 1.49 .35 4.20 400 1.21 53.1
3/4" .59 1.53 .55 3.19 1.60 1.25 4.72 2.52 .87 .23 1.42
(ISO F03)
.87 .20 1.29 .35 1.49 .35 7.00 400 1.44 53.1
1" .79 1.89 .66 3.74 1.87 1.61 6.69 2.95 .94 .27 1.97
(ISO F05)
1.00 .28 1.63 .43 1.97 .43 12.83 400 2.64 150.46
1-1/4" .98 2.36 .68 4.39 2.20 1.96 6.69 3.17 .94 .27 1.97
(ISO F05)
1.22 .28 1.85 .43 1.97 .43 18.67 400 4.15 150.46
1-1/2" 1.26 2.83 .68 4.86 2.43 2.16 6.69 3.66 1.26 .27 1.97
(ISO F05)
1.79 .28 2.34 .43 1.97 .43 29.75 400 6.02 150.46
2" 1.57 3.38 .70 5.73 2.87 2.75 9.05 4.43 1.46 .35 2.76
(ISO F057)
1.75 .32 2.90 .59 2.75 .55 43.76 400 9.08 274.37
2-1/2" 1.95 4.37 .93 6.93 3.47 3.34 9.05 4.86 1.46 .35 2.76
(ISO F057)
2.20 .32 3.35 .59 2.75 .55 70.00 400 16.33 380.58
3" 1.95 4.45 1.01 7.08 3.54 4.13 9.05 4.86 1.46 .35 2.76
(ISO F057)
2.20 .32 3.35 .59 2.75 .55 70.00 400 19.55 380.58

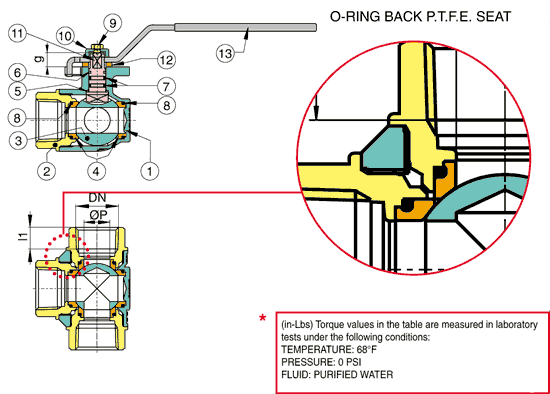

Technical Drawing
Number Part Name Material N. Pcs
1 Body Brass CW 617 NUNI EN 12165 1
2 End Connection Brass CW 617 NUNI EN 12165 3
3 Ball Brass CW 617 NUNI EN 12165 1
4 Ball Seat PTFE 4
5 Thrust Washer PTFE 1
6 Stem Seal PTFE 1
7 O-Ring Stem FKM (Viton®) 1
8 O-Rings Body FKM (Viton®) 4
9 Screw Steel 6/S 1
10 Bush Brass CW 617 NUNI EN 12165 1
11 Stem Brass CW 617 NUNI EN 12165 1
12 Washer Nylon 1
13 Handle Fe DD 11 UNI EN 10111 1
Technical Specifications
Valve group 2/2, (way/positions)
Construction Ball valve
Mounting In-line
Materials Brass body (2930 and 2960), Nickel-Plated brass body (2940), Chrome-Plated Brass Body (2930N)
Zinc-plated steel handles (2940 and 2960), all others nylon
Plastic handles (2930), Hardened chrome-plated brass ball
Teflon seat (P.T.F.E.)
Threaded port sizes 1/8", 1/4", 3/8", 1/2" NPTF (2930)
1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" NPTF (2940)
Installation In-line
Operating temperature Series 2940 - 4°F to 300°F
Series 2960 - 4°F to 340°F
Series 2930 5° to 200°F
Fluid Filtered air (for others, check with factory)
Pneumatic Data
Working pressure Series 2940: 1/4", 3/8", 1/2" 710 psi 2-1/2" - 260 psi
3/4", 1" 570 psi 3" - 230 psi
1-1/4", 1-1/2" 430 psi 4" - 200 psi
2" - 360 psi
Series 2930: 1/4", 3/8", 1/2" 220 psi
Series 2960: All sizes 400 psi
Nominal flow Full flow design
