Camozzi Index|Valves|Air-Pilot Valves


camozzi

CAMOZZI Valves - Manual, Mechanical & Air-Pilot

Air-Pilot Valves - Series 7

Download & Save as PDF File PDF Download

Series 7 - VDMA 24563 (ISO 15407-1)
Regulator Plate ISO Size 01 (P-regulation) 26mm
For 26mm-ISO 01 size valves only.

Series 7 - VDMA 24563 (ISO 15407-1) Regulator Plate ISO Size 01 (P-regulation) 26mm
Gauges supplied separately,
shown only for installation
Part Number ISO.1 P
Port size VDMA 24563
Description air line regulator with diaphragm and relieving feature
Mounting arbitrary
Supply pressure Pe max. 16 bar (not to exceed max. pressure of valve)
Reduced pressure Pa 0.5-10 bar
Media and ambient temperature max. 50°C (other temperature ranges available upon request)
Fixing with connection board
Weight 0.340 kg

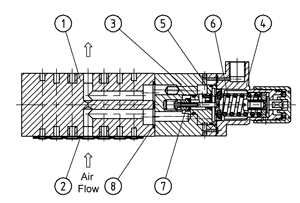

Technical Drawing
Replacement Parts
No. Description Material Part Number
1 intermediate plate Al ---
2 sealing frame ISO.01-6 NBR 5.1801.06.000
3 body Al ---
4 spring cage ISO.01-9 PBTP - Ms 8.1801.09.000
5 diaphragm NBR - Ms *
6 regulating spring 0-10 bar St. - galvanized 5.1801.11.000
7 valve cone NBR - Ms *
8 spring DR.00-70 niro 5.1500.70.000
* (repair kit: ESA-ISO.01)

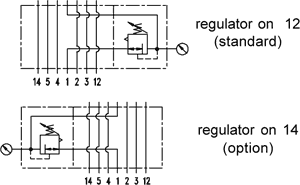

Technical Drawing - Regulator

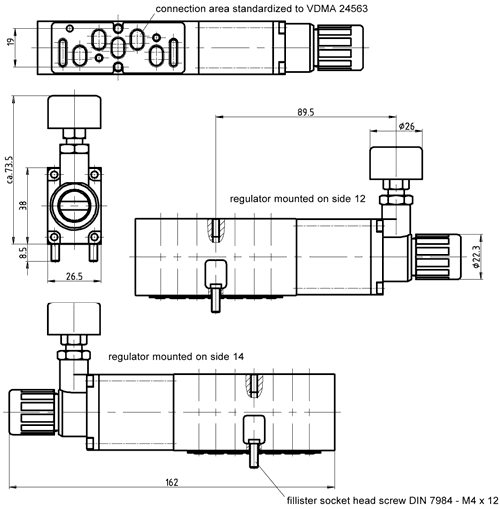

Dimensions
Technical Drawing - Dimensions
Flow Characteristics
Technical Drawing - Flow Diagram
Pressure Characteristics
Technical Drawing - Pressure Diagram
