CAMOZZI Valves
Manual, Mechanical & Air-Pilot

Air-Pilot Valves - Series 4

Download & Save as PDF File PDF Download

Series 4 Air-Pilot operated valves

5-way/2-position valve, 1/8" port, Air Pilot, Spring Return Cv = .73
Series 4 Air-Pilot operated valves
Valve with pneumatic actuation and spring.
Minimum pilot pressure: 2.5 bar. (36 psi)

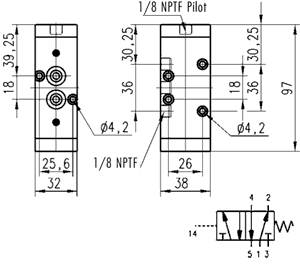

Technical Drawing
Part Number Mounting Function Flow Rate
NL/min
Min. pil P
438-35 in line/manifold 5/2 700 2.5 bar (36 psi)
(Part Listed Is BSP - For NPT Sizes Add TF to Order Code)
Coding Example
Coding Example
(Click Image to Enlarge)
Technical Specifications
Valve group 3-way/2-position, 5-way/2-position, 5-way/3-position
Construction Air-Pilot, in-line ported
Mounting through holes in valve body
Materials Anodized body, stainless steel spool, Buna-N seals
Threaded port sizes 1/8", 1/4", 1/2" NPTF
Installation in any position
Operating temperature 0 - 80°C (with dry air at -20°C), 32°F - 176°F (with dry air at -4°F)
Fluid Filtered air (32 micron or less recommended)
Lubricant Not required; otherwise, oil compatible with Buna-N, (3° - 10° E) ISOVG32 grade (32 centistrokes)
Pneumatic Data
Operating pressure P = -0.9 -10 bar, 0-145 psi (down to 28" Hg vacuum rated)
Control pressure min. press. (see valve description)
Nominal pressure 6 bar - 87 psi
Nominal flow *Qn Series 4: 1/8" = 700 NL/min. (24.72 SCFM), Cv = .73
1/4" = 1250 NL/min (43.7 SCFM), Cv= 1.3
1/2" = 1900 NL/min (67.1 SCFM), Cv= 2.00
Fluid filtered air, without lubrication** (25 micon recommended)
