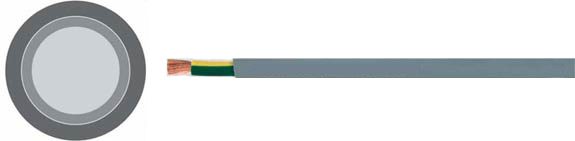

Special Cables: TOPFLEX® 303 X07V-K-YÖ

Double Insulation, 0.6/1 kV, Flexible PVC Single Conductor, Oil Resistant
Special Cables, TOPFLEX® 303 X07V-K-YÖ, Double insulation, 0.6/1 kV, Flexible PVC single conductor, oil resistant, Hi-Tech Controls, European
Conductor/Jacket Color Black/Gray Conductor/Jacket Color Black/Gray
Conductor/Jacket Color Green-yellow/Gray Conductor/Jacket Color Green-yellow/Gray

Conductor/jacket color: black/gray
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
75460  TOPFLEX© 303 1X6 8.5 58.0 94.0 10
75461  TOPFLEX© 303 1X10 9.5 96.0 143.0 8
75462  TOPFLEX© 303 1X16 11.5 154.0 209.0 6
75463  TOPFLEX© 303 1X25 14.0 240.0 308.0 4
75464  TOPFLEX© 303 1X35 15.0 336.0 440.0 2
75465  TOPFLEX© 303 1X50 17.5 480.0 572.0 1
75466  TOPFLEX© 303 1X70 20.0 672.0 792.0 2/0
75467  TOPFLEX© 303 1X95 22.0 912.0 1155.0 3/0
72184  TOPFLEX© 303 1X120 23.5 1152.0 1267.0 4/0
72185  TOPFLEX© 303 1X150 26.5 1440.0 1650.0 300 kcmil
75468  TOPFLEX© 303 1X185 29.0 1776.0 2134.0 350 kcmil
74221  TOPFLEX© 303 1X240 31.0 2304.0 2943.0 500 kcmil
72082  TOPFLEX© 303 1X300 35.0 2880.0 3600.0 600 kcmil

Conductor/jacket color: green-yellow/gray
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
75449  TOPFLEX© 303 1X6 8.5 57.6 94.0 10
75469  TOPFLEX© 303 1X10 9.5 96.0 143.0 8
73859  TOPFLEX© 303 1X16 11.5 154.0 209.0 6
75470  TOPFLEX© 303 1X25 14.0 240.0 308.0 4
75471  TOPFLEX© 303 1X35 15.0 336.0 440.0 2
75472  TOPFLEX© 303 1X50 17.5 480.0 572.0 1
75473  TOPFLEX© 303 1X70 20.0 672.0 792.0 2/0
75474  TOPFLEX© 303 1X95 22.0 912.0 1155.0 3/0
75475  TOPFLEX© 303 1X120 23.5 1152.0 1267.0 4/0
75476  TOPFLEX© 303 1X150 26.5 1440.0 1650.0 300 kcmil
75477  TOPFLEX© 303 1X185 29.0 1776.0 2134.0 350 kcmil
75478  TOPFLEX© 303 1X240 31.0 2304.0 2943.0 500 kcmil
75479  TOPFLEX© 303 1X300 35.0 2880.0 3600.0 600 kcmil
Technical Data European
  • Special PVC single-conductor cable with double insulation and oil-resistant jacket
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 600/1000 V
  • A.C. Test Voltage, 50 Hz
    3000 V
  • Insulation Resistance
    Min. 20 MOhm/km
  • Minimum Bending Radius
    For flexible installation
    Approx. 12 cable Ø
Approvals
RoHSCE
Cable Construction
  • Bare copper, fine wire conductor to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation, cold-resistant color black / green-yellow
  • Special PVC jacket, TM5 acc. to HD 21.1S2/A16
  • Jacket color gray
Application
This cable is used for conditions of increased mechanical stress. For flexible movement without tensile stress or forced movements in dry, moist and wet environments, but not suitable for outdoor use.
The cable may be installed in trays, troughs and channels.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • These cables have been tested according to VDE 207 and VDE 0473 and found to be totally oil resistant
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Improved mechanical protection due the double insulation
Note
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
