Special Cables: TOPFLEX® 300

Highly Flexible PVC Single Conductor, 0.6/1 kV, For Drag Chain (Track Cable) and Free Movement Application
Special Cables, TOPFLEX® 300 High flexible PVC single conductor, 0.6/1 kV, For drag chain (track cable) and free movement application, Hi-Tech Controls, European
TOPFLEX® 300 Black TOPFLEX® 300 Black
TOPFLEX® 300 Red TOPFLEX® 300 Red

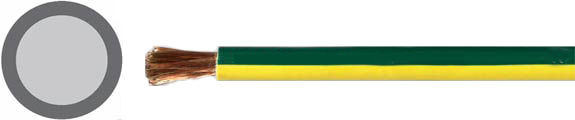

TOPFLEX® 300 Green-Yellow TOPFLEX® 300 Green-Yellow
TOPFLEX® 300 Blue TOPFLEX® 300 Blue

TOPFLEX® 300 Black
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
79623  TOPFLEX© 300 Black 1X2.5 4.2 24.0 42.0 14
79624  TOPFLEX© 300 Black 1X4 5.1 38.4 58.0 12
79625  TOPFLEX© 300 Black 1X6 6.0 57.6 85.0 10
79626  TOPFLEX© 300 Black 1X10 7.4 96.0 130.0 8
75431  TOPFLEX© 300 Black 1X16 8.8 154.0 210.0 6
75432  TOPFLEX© 300 Black 1X25 10.7 240.0 300.0 4
75433  TOPFLEX© 300 Black 1X35 12.1 336.0 420.0 2
70519  TOPFLEX© 300 Black 1X50 14.0 480.0 580.0 1
75434  TOPFLEX© 300 Black 1X70 16.3 672.0 780.0 2/0
73714  TOPFLEX© 300 Black 1X95 18.3 912.0 1010.0 3/0
75435  TOPFLEX© 300 Black 1X120 20.0 1152.0 1200.0 4/0
75436  TOPFLEX© 300 Black 1X150 23.0 1440.0 1600.0 300 kcmil
72872  TOPFLEX© 300 Black 1X185 24.8 1776.0 2030.0 350 kcmil
75437  TOPFLEX© 300 Black 1X240 28.7 2304.0 2600.0 500 kcmil

TOPFLEX® 300 Red
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
79631  TOPFLEX© 300 Red 1X2.5 4.2 24.0 42.0 14
79632  TOPFLEX© 300 Red 1X4 5.1 38.4 58.0 12
79633  TOPFLEX© 300 Red 1X6 6.0 57.6 85.0 10
79634  TOPFLEX© 300 Red 1X10 7.4 96.0 130.0 8
78106  TOPFLEX© 300 Red 1X16 8.8 154.0 210.0 6
78107  TOPFLEX© 300 Red 1X25 10.7 240.0 300.0 4
78108  TOPFLEX© 300 Red 1X35 12.1 336.0 420.0 2
70518  TOPFLEX© 300 Red 1X50 14.0 480.0 580.0 1
78109  TOPFLEX© 300 Red 1X70 16.3 672.0 780.0 2/0
78110  TOPFLEX© 300 Red 1X95 18.3 912.0 1010.0 3/0
78111  TOPFLEX© 300 Red 1X120 20.0 1152.0 1200.0 4/0
to top up arrow
TOPFLEX® 300 Green-Yellow
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
79627  TOPFLEX© 300 Green-Yellow 1X2.5 4.2 24.0 42.0 14
79628  TOPFLEX© 300 Green-Yellow 1X4 5.1 38.4 58.0 12
79629  TOPFLEX© 300 Green-Yellow 1X6 6.0 57.6 85.0 10
79630  TOPFLEX© 300 Green-Yellow 1X10 7.4 96.0 130.0 8
75438  TOPFLEX© 300 Green-Yellow 1X16 8.8 154.0 210.0 6
75439  TOPFLEX© 300 Green-Yellow 1X25 10.7 240.0 300.0 4
75440  TOPFLEX© 300 Green-Yellow 1X35 12.1 336.0 420.0 2
70536  TOPFLEX© 300 Green-Yellow 1X50 14.0 480.0 580.0 1
75441  TOPFLEX© 300 Green-Yellow 1X70 16.3 672.0 780.0 2/0
75442  TOPFLEX© 300 Green-Yellow 1X95 18.3 912.0 1010.0 3/0
73885  TOPFLEX© 300 Green-Yellow 1X120 20.0 1152.0 1200.0 4/0
75443  TOPFLEX© 300 Green-Yellow 1X150 23.0 1440.0 1600.0 300 kcmil
75444  TOPFLEX© 300 Green-Yellow 1X185 24.8 1776.0 2030.0 350 kcmil
75445  TOPFLEX© 300 Green-Yellow 1X240 28.7 2304.0 2600.0 500 kcmil

TOPFLEX® 300 Blue
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
79635  TOPFLEX© 300 Blue 1X2.5 4.2 24.0 42.0 14
79636  TOPFLEX© 300 Blue 1X4 5.1 38.4 58.0 12
79637  TOPFLEX© 300 Blue 1X6 6.0 57.6 85.0 10
79638  TOPFLEX© 300 Blue 1X10 7.4 96.0 130.0 8
78112  TOPFLEX© 300 Blue 1X16 8.8 154.0 210.0 6
78113  TOPFLEX© 300 Blue 1X25 10.7 240.0 300.0 4
78114  TOPFLEX© 300 Blue 1X35 12.1 336.0 420.0 2
78115  TOPFLEX© 300 Blue 1X50 14.0 480.0 580.0 1
78116  TOPFLEX© 300 Blue 1X70 16.3 672.0 780.0 2/0
78117  TOPFLEX© 300 Blue 1X95 18.3 912.0 1010.0 3/0
73884  TOPFLEX© 300 Blue 1X120 20.0 1152.0 1200.0 4/0
Technical Data European
  • Special PVC single-conductor cable with oil-resistant insulation based on DIN VDE 0281 part 13 and in accordance with HD 21.13 S1
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to 176°F)
  • Nominal Voltage U0/U 600/1000 V
  • A.C. Test Voltage, 50 Hz
    3000 V
  • Insulation Resistance
    Min. 20 MOhm/km
  • Minimum Bending Radius
    For flexible installation
    Approx. 7.5 cable Ø

Approvals
RoHS CE
Cable Construction
  • Bare copper, extra fine wire conductor to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
  • Oil-resistant special PVC insulation
  • Color see table, or as desired
  • If this cable is to be double-insulated, then its external diameter and weight must be adapted
  • Caution with existing cables
Application
Thanks to their outstanding alternating bending stress characteristics, these cables are ideally suited for use in drag chains, and also for use in handling devices, robots, and nearly any area requiring flexible used and free motion. Due to its resistance to mineral oils, these cables are well suited for use in mechanical engineering, tool making, and systems engineering, and in steel mills and rolling mills in particularly critical areas.
Suitable for installation in dry, damp and wet environments. With the black jacket, can also be used outdoors.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PVC self-extinguishing and flame retardant, test method B according to VDE 0472 part 804 and IEC 60332-1
  • Chemical resistance see table Technical Information
Note
  • The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Cable Accessories
  • Coming Soon!
