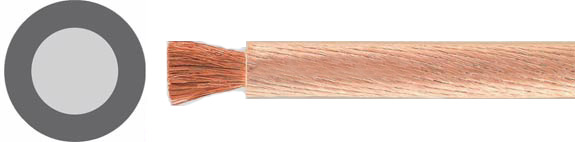

High Voltage Cable, High Flexibility, Halogen-Free
European Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer
Diameter
mm
Copper
weight
kg/km
Weight
ca. kg/km
AWG
700768
GALVANICABLE 1X35
17.2
336.0
548.0
2
75497
GALVANICABLE 1X50
19.0
480.0
686.0
1
75498
GALVANICABLE 1X70
21.5
672.0
950.0
2/0
75499
GALVANICABLE 1X95
24.0
912.0
1386.0
3/0
74749
GALVANICABLE 1X120
27.0
1152.0
1520.0
4/0
700769
GALVANICABLE 1X150
28.0
1440.0
2002.0
300 kcmil
700770
GALVANICABLE 1X185
30.5
1776.0
2610.0
350 kcmil
700771
GALVANICABLE 1X240
36.0
2304.0
3820.0
500 kcmil
Technical
Data
European
Temperature Range Flexing
-40°C to +80°C (-40°F to +176°F)
Fixed Installation
-50°C to +80°C (-58°F to +176°F)
Operating Voltage U0/U 600/1000 V
Test Voltage 3500 V
Insulation Resistance Min. 20 MOhm/km
Minimum Bending Radius Approx. 15x cable Ø
Approvals
Cable
Construction
Bare copper, ultra-fine wire conductors acc. to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
Extremely thick PUR wearing jacket
Natural color, smooth, glossy
Application
This cable is employed as a highly flexible high-current cathode cable for electroplating drum systems and as a wearing cable in the chemical industry. Special feature:
Despite the extremely thick wearing jacket, the highly flexible conductor enables good contact when installing the pear push. Good flexibility is likewise ensured when the pear push comes into contact with the parts to be electroplated. =
The product is conformed
with the EC Low-Voltage
Directive 2006/95/EG.
Properties
PUR wearing jacket: extremely abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack
Chemical resistance:
PUR demonstrates significantly better chemical resistance when compared with other materials, e.g. rubber or PVC
The extremely thick PUR jacket means longer service life
Note
The product is conformed
with the EC Low-Voltage
Directive 2006/95/EG.
