European Servo, Feedback & Motor Cable:

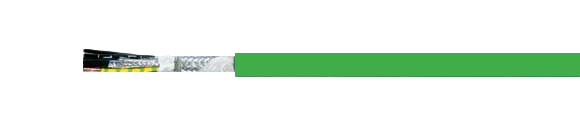

TOPSERV® 110/120/Feedback-Cable

Drag Chain Cable, 0.6/1 kV, EMC Preferred Type, Servo/Feedback Cable, Highly Flexible

Hi-Tech Controls, Inc, European wires and cables

TOPSERV 110/120/Feedback Cable, drag chain cable, 0.6/1 kV, EMI preferred type, servo/feedback cable, high flexible, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
TOPSERV 110
TOPSERV Feedback-Cable

TOPSERV® 110 (I pair shielded and overall shielding)
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
71491 TOPSERV® 110 (4G1.5 + (2X1)) 11.5 139.0 211.0 16
71493 TOPSERV® 110 (4G2.5 + (2X1)) 13.6 188.0 273.0 14
71705 TOPSERV® 110 (4G4 + (2X1)) 14.6 260.0 352.0 12
71706 TOPSERV® 110 (4G6 + (2X1)) 16.0 360.0 500.0 10
71707 TOPSERV® 110 (4G10 + (2X1)) 20.2 590.0 753.0 8
71708 TOPSERV® 110 (4G16 + (2X1)) 23.8 845.0 1061.0 6
71709 TOPSERV® 110 (4G25 + (2X1)) 27.0 1320.0 1499.0 4
71710 TOPSERV® 110 (4G35 + (2X1)) 31.9 1840.0 1992.0 2
71711 TOPSERV® 110 (4G50 + (2X1)) 36.7 2530.0 2880.0 1

TOPSERV® 120 (2 pairs individually shielded and overall shielding)
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
71990 TOPSERV® 120 (4G1.5 + 2X (2X1)) 12.6 186.0 242.0 16
71991 TOPSERV® 120 (4G2.5 + 2X (2X1)) 15.0 231.0 316.0 14
71992 TOPSERV® 120 (4G4 + 2X (2X1)) 16.0 308.0 415.0 12
71993 TOPSERV® 120 (4G6 + 2X (2X1)) 18.2 420.0 574.0 10
71994 TOPSERV® 120 (4G10 + 2X (2X1)) 22.8 647.0 805.0 8
71995 TOPSERV® 120 (4G16 + 2X (2X1)) 25.0 918.0 1122.0 6
71996 TOPSERV® 120 (4G25 + 2X (2X1)) 27.7 1400.0 1584.0 4
72106 TOPSERV® 120 (4G35 + 2X (2X1)) 32.0 1882.0 2185.0 2
71997 TOPSERV® 120 (4G50 + 2X (2X1)) 37.0 2574.0 2977.0 1

TOPSERV® Feedback Cable (Overall Braid-Shielded)
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
72042 Feedback Cable (12X0.25) 7.5 49.0 90.0 24
71492 Feedback Cable
(3X2X0.14 + 4X0.14 + 4X0.25 + 2X0.5)
10.7 92.0 145.0 -
72043 Feedback Cable (4X2X0.34 + 4X0.5) 9.5 77.0 144.0 22
Technical Data European
  • Special PUR drag chain cable based on DIN VDE 0295, 0250, 0281
  • Temperature Range
    Flexing
    -40°C to +90°C (-40°F to +194°F)
    Fixed Installation
    -40°C to +90°C (-40°F to +194°F)
  • Nominal Voltage
    Power supply conductors U0/U 600/1000 V
    Control conductors U0/U 300/500 V
  • Test Voltage
    Power supply conductors 4000 V
    Control conductors 1000 V
  • Power Rating
    To DIN VDE 0298 part 4
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing approx. 7.5x cable Ø
    Fixed Installation approx. 4x cable Ø
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE VDE PCT
Cable Construction
  • Plain copper conductor, ultra-fine wire
    for TOPSERV® 110:
    1 mm² = 19x0.25 mm
  • TPE-E conductor insulation, halogen-free
  • Conductor identification:
    Power supply conductors black with imprint U1, V2, W3 and grounding green-yellow,
    Control conductors black with imprint BR1, BR2 or no. 5-6 and 7-8 for the 2-pair-version
  • Shielding of the control conductors in pairs with Al film, tinned drain wire and tinned copper braid; single pair with tinned copper braid only
  • Control conductors stranded in pairs and laid up in layers together with the power supply conductors
  • Fleece wrapping
  • Overall shielding of tinned copper braid, visible coverage min. 80%
  • PUR-outer jacket, flame-resistant
  • Color: Petrol (RAL 5018)

TOPSERV Feedback Cable:

    Part # 72042:
  • PVC-conductor insulation
  • Conductors color coded
  • Foil taped
  • PUR jacket
    Part # 71492:
  • TPE-conductor insulation
  • Conductors color coded
  • Fleece wrapping
  • PUR jacket



    Part # 72043:
  • PVC-conductor insulation
  • Conductors color coded
  • Foil taped
  • PUR jacket
Application
The combination of feeder conductors with the control conductors for the braking function and the thermal protection in these cables is ideal. Precision servomotors, as used today in many areas of highly-automated manufacturing processes, call for high-quality, reliable and long-lasting cables. These requirements are met to a high degree as is the electromagnetic interference (EMI).
These cables can also be used as drag chain cables.
Manufacturing is based on specifications from renowned manufacturers of servo-actuators and servo-controls as well as in accordance with diverse VDE standards. Application for system SIMODRIVE.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PUR outer jacket flame retardant, low adhesion, resistant to hydrolysis and microbial attack, halogen-free
  • These highly flexible cables are fitted with an additional overall shielding to assure EMI compatibility, i. e. the protection against electromagnetic interference
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding;
    x = without green-yellow grounding
  • For extreme applications extending beyond standard solutions we recommend that you request our questionnaire, which has been especially designed for energy supply systems
  • Please observe applicable installation regulations for use in energy supply chains
Cable Accessories
  • Coming Soon!
