European Servo, Feedback & Motor Cable:

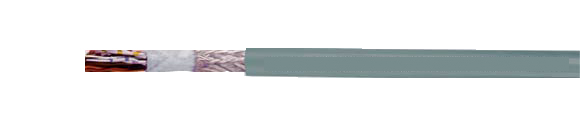

TOPFLEX® 228-10-14

EMI Preferred Type

Hi-Tech Controls, Inc, European wires and cables

TOPFLEX® 228-10-14, used as data transfer cable, EMI preferred type, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
22810 TOPFLEX® 228-10-14, 8X2X0.18 8.5 56.0 66.0 -
22819 TOPFLEX® 228-10-14, 10X2X0.18 9.7 70.0 79.0 -
22811 TOPFLEX® 228-10-14, 13X2X0.18 10.5 83.0 102.0 -
22812 TOPFLEX® 228-10-14, 21X2X0.18 12.6 120.0 152.0 -
22814 TOPFLEX® 228-10-14, 50X0.18 12.0 140.0 191.0 -
Technical Data European
  • Special conductor and jacket compound from PVC
  • Conductor Resistance at +20°C/+68°F
    Max. 98 Ohm/km
  • Temperature Range
    Flexing
    -10°C to +70°C (+14°F to +158°F)
    Fixed Installation
    -30°C to +70°C (-22°F to +158°F)
  • Nominal Voltage
    350 V
  • Test Voltage
    Conductor/conductor 2000 V
    Conductor/shielding 1000 V
  • Breakdown Voltage
    Min. 4000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Approx. 10x cable Ø
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE VDE
Cable Construction
  • Tinned copper conductor
  • 7-strands, suitable for clamp-and-cut system
  • Special PVC conductor insulation
  • Color coded acc. to table shown below
  • Conductors laid up in pairs, alt. longitudinally
  • Film wrap
  • Tinned copper braided shielding, approx. 85% coverage
  • Special PVC outer jacket
  • Jacket color: Gray (RAL 7000)
Application
These cables are installed in machinery and industrial plants as a data transfer cable.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Largely oil-resistant
  • For chemical resistance, see technical information table
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • Conductor twisting starting with the outer layer
    Color Code:
    Type 50x0.18
    Conductor/Color:
    • 1/white, 2/brown, 3/green, 4/yellow, 5/gray, 6/pink, 7/blue, 8/red, 9/black, 10/violet, 11/gray-violet, 12/red-black, 13/white-green, 14/brown-green, 15/white-yellow, 16/yellow-brown, 17/white-gray, 18/gray-brown, 19/white-pink, 20/pink-brown, 21/white-blue, 22/white-black, 23/brown-red, 24/white-red, 25/brown-blue, 26/yellow-black, 27/green-black, 28/yellow-red, 29/green-red, 30/yellow-blue, 31/green-blue, 32/yellow-pink, 33/pink-green, 34/yellow-gray, 35/gray-green, 36/brown-black, 37/gray-blue, 38/pink-blue, 39/gray-red, 40/pink-red, 41/gray-black, 42/pink-black, 43/blue-black, 44/red-black, 45/white, 46/brown, 47/green, 48/gray, 49/yellow, 50/pink
  • Paired twisting starting with the outer layer
    Color Code: Type 8 to 21x2x0.18
    Pair No./Color:
    • 1/black-brown, 2/red-orange, 3/yellow-green, 4/blue-violet, 5/gray-white, 6/white-black-white-brown, 7/white-red-white-orange, 8/white-gray-white-green, 9/white-blue-white-violet, 10/white-gray-brown-black, 11/brown-red-brown-orange, 12/brown-gray-brown-green, 13/brown-blue-brown-violet, 14/brown-gray-brown-white, 15/green-white-green-brown, 16/green-red-green-orange, 17/green-blue-green-violet, 18/green-gray-green-white, 19/yellow-black-yellow-brown, 20/yellow-red-yellow-orange, 21/yellow-blue-yellow-violet
Cable Accessories
  • Coming Soon!
