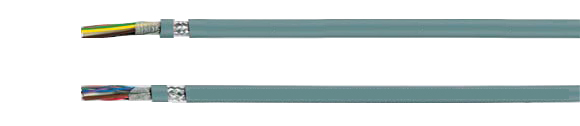

European Servo, Feedback & Motor Cable: Tachofeedback-Cable-C-PVC, Incremental Feedback-Cable-C-PVC

Track Cable, EMC Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Tachofeedback-Cable-C-PVC, Incremental feedback-Cable-C-PVC EMI preferred type, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
22824 Tachofeedback Cable (9X0.5) 8.8 81.0 150.0 20
22825 Incremental Feedback Cable (4X2X0.25 + 2X1) 8.8 66.0 110.0 24
Technical Data European
  • Special conductor and jacket compound from PVC
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Nominal Voltage
    Tachofeedback-cable-C-PVC
    450 V
    Incremental feedback-cable-C-PVC
    250 V
  • Test Voltage
    Conductor/conductor 2000 V
    Conductor/shielding 1000 V
  • Breakdown Voltage
    min. 4000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    10x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, fine wire conductor to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and/or IEC 60228 cl. 5
  • Special PVC conductor insulation
  • Color code
    Tachofeedback-cable:
    blue, white, red, pink, green, yellow, brown, black, gray
    Incremental feedback-cable:
    brown, black/red, green/light-brown, white, pink/gray, violet/blue
  • Single conductors or pairs stranded in layer with optimal lay-length pairs (part no. 22825)
  • Conductor wrapping with film
  • Drain wire
  • Tinned copper braided shielding, coverage approx. 85%
  • Special PVC outer jacket
  • Color: Gray (RAL 7001)
Application
Both cables fulfill differing tasks for the control of servo-motors. The tachofeedback-cable or response cable serves the regulation of the motor speed and measurement of the actual values. The Incremental Feedback-Cable or position response cable transfers the control signals for positioning and engineering characteristics and is used as the flexible connecting cable for tachometer, brakes, pulse transmitter in system and mechanical engineering, in dry, damp and wet environments.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For Chemical Resistance see technical information table
  • PVC self-extinguishing and flame resistant to VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1 (equivalent to DIN VDE 0472 part 804 test type B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
Cable Accessories
  • Coming Soon!
