European Servo, Feedback & Motor Cable:

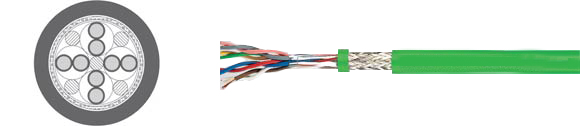

TOPGEBER 504/511

Low Capacitance (Approx. 70 nF/km), Flexible Feedback Cable, Low Capacitance (Approx. 40 nF/km), PVC
According to Siemens Standard 6FX 5008

Hi-Tech Controls, Inc, European & Domestic cable

TOPGEBER 504/511, low capacitance (approx. 70 nF/km), flexible feedback cable, low capacitance (approx. 40 nF/km), PVC , RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
74450 TOPGEBER 504 (5X0.22) 5.3 24.0 51.0 24
74405 TOPGEBER 504 (3X2X0.22) 6.6 35.0 62.0 24
74406 TOPGEBER 504 (4X2X0.22) 7.1 38.0 77.0 24
700241 TOPGEBER 504 (4X2X0.22) 7.8 41.0 85.0 24
74407 TOPGEBER 504 (5X2X0.22) 7.5 49.0 95.0 24
700601 TOPGEBER 504 (6X2X0.22) 8.5 66.0 112.0 24
700602 TOPGEBER 504 (8X2X0.22) 8.9 64.0 121.0 24
700603 TOPGEBER 504 (10X2X0.22) 10.5 96.0 143.0 24
700604 TOPGEBER 504 (12X2X0.22) 11.0 115.0 197.0 24
700605 TOPGEBER 504 (18X2X0.22) 13.3 172.0 285.0 24
700606 TOPGEBER 504 (25X2X0.22) 14.9 255.0 345.0 24
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
700639 TOPGEBER 511 (4X2X0.25) 8.4 43.2 89.0 24
700643 TOPGEBER 511
(3X2X0.14 + 4X0.14 + 4X0.23 + 2X0.5)
9.5 690.0 250.0 26
700640 TOPGEBER 511 (3X2X0.14 + 2X0.5) 7.2 35.0 80.0 26
700642 TOPGEBER 511
(3X2X0.14 + 4X0.14 + 2X0.5)
8.9 63.0 190.0 26
700644 TOPGEBER 511 (12X0.22) 7.5 65.0 90.0 24
700641 TOPGEBER 511 (4X2X0.38 + 4X0.5) 9.0 76.4 150.0 21
Technical Data European
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage 350 V
  • A.C. Test Voltage, 50 Hz
    Conductor/conductor 1200 V
    Conductor/shielding 800 V
  • Insulation Resistance
    Min. 5 MOhm x km
  • Mutual Capacitance
    Conductor/conductor approx. 40 nF/km
    Conductor/shielding approx. 80 nF/km
  • Coupling Resistance
    Max. 250 Ohm/km
  • Characteristic Impedance
    Approx. 110 Ohm
  • Cross-Talk Attenuation
    Up to 1 MHz min. 50 dB
    Up to 10 MHz min. 40 dB
  • Minimum Bending Radius
    For flexible installation approx. 20x cable Ø
Approvals
RoHSUL CSA CE
Cable Construction
  • Bare copper, fine wire conductors in acc. with DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
  • Special polypropylene conductor insulation
  • Color codes acc. to DIN 47100
  • Conductors twisted in pairs
  • Shield of aluminum-coated polyester film
  • Braided shielding of tinned copper wire, approx. coverage 85%, tinned drain wire
  • Special PVC jacket
  • Jacket color: Green (RAL 6018) acc. to DESINA® or Gray upon request
Part No. 74450
  • Construction as above, except
  • Conductors stranded in layers
Part No. 700241 (TOPGEBER 504)
  • Construction as above, except
  • with UL/CSA approval
Part No. 700639-700644
(TOPGEBER 511)
  • Construction as above, except
  • with polypropylene conductor insulation
  • with UL/CSA approval
Application
This low-loss, paired, double-shielded data cable is extremely suitable for interference-free transmission of data signals in the fields of electrical engineering, metrology and control technology. Can be used in process control, as a signal cable in machining centers, or as a signal cable for connecting data systems. Good cross-talk attention due to twisted pairs with short lay-lengths. Particularly suitable for RS 422 and RS 485 interfaces. This particularly low capacitance cable type is used as a measuring and signal cable for transmission rates up to 10 megabits per second.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Special PVC jacket, largely oil resistant, self-extinguishing and flame retardant, test method B acc. to VDE 0472 part 804 and IEC 60332-1, chemical resistance see table Technical Information
  • These cables are produced to high quality specifications and conform to the DESINA®-standard
  • The twisted-pair stranding results in good cross talk attenuation properties
  • Optimum compliance with requirements forelectromagnetic interference (EMI) by approx. 85% coverage from the braided shielding
Note
  • Brackets () indicate shielding
  • For extreme applications extending beyond standard solutions we recommend that you request our questionnaire, which has been especially designed for energy supply systems
  • Please observe applicable installation regulations for use in energy supply chains
  • SIEMENS product designations 6FX 5008... are registered trademarks of Siemens AG, and are to be used only for purposes of comparison
  • DESINA®: Explanation: see introduction
