European Servo, Feedback & Motor Cable:

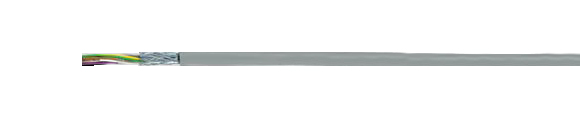

TOPFLEX®-PVC

Feedback Cable, EMC Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

TOPFLEX®-PVC feedback cable, EMI preferred type, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
22845 TOPFLEX®-PVC, 10X0.14 + 2X0.5 8.0 46.2 70.0 26
22846 TOPFLEX®-PVC, 10X0.14 + 4X0.5 8.2 56.3 86.0 26
22820 TOPFLEX®-PVC, 15X0.14 + 4X0.5 8.7 59.0 123.0 26
Technical Data European
  • Special conductor and jacket compound from PVC
  • Temperature Range
    Flexing
    -5°C to +70°C (-23°F to +158°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Nominal Voltage 350 V
  • Test Voltage
    Conductor/conductor 2000 V
    Conductor/shielding 1000 V
  • Breakdown Voltage
    Min. 4000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    10x cable Ø
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE
Cable Construction
  • Bare copper, fine and/or ultra-fine wire conductors acc. to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and/or IEC 60228
  • PVC conductor insulation
  • Conductors color coded according to DIN 47100
  • Conductors stranded in layers with optimal lay-length
  • Conductor wrapping with film
  • Tinned copper braided shielding, coverage approx. 85%
  • Special PVC outer jacket
  • Color: Gray (RAL 7001)
Application
These feedback-cables are used in machinery and control construction as well as in plant engineering as these enable an excellent transmission of data and signals.
Additional conductors for the power supply to individual components are available.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Largely oil-resistant
  • For chemical resistance, see technical information table
  • PVC self-extinguishing and flame resistant to VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1 (equivalent to DIN VDE 0472 part 804 test type B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
