European Servo, Feedback & Motor Cable:
TOPFLEX®-PUR

Drag Chain (Track) Feedback Cable, EMC Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

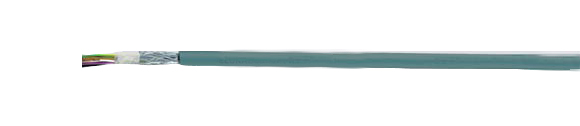

TOPFLEX®-PUR drag chain feedback cable, EMI preferred type, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
22849 TOPFLEX®-PUR, 10X0.14 + 2X0.5 7.2 39.0 83.0 26
22848 TOPFLEX®-PUR, 10X0.14 + 4X0.5 7.7 54.3 96.0 26
22834 TOPFLEX®-PUR, 15X0.14 + 4X0.5 7.9 58.0 120.0 26
Technical Data European
  • Special conductor and jacket compound from PUR
  • Temperature Range
    Flexing
    -30°C to +80°C (-22°F to +176°F)
  • Nominal Voltage 350 V
  • Test Voltage
    Conductor/conductor 2000 V
    Conductor/shielding 1000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing approx. 10x cable Ø
    Fixed Installation approx. 5x cable Ø
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE
Cable Construction
  • Bare copper, fine and/or ultra-fine wire conductors acc. to DIN VDE 0295, BS 6360 and/or IEC 60228
  • TPE conductor insulation
  • Conductors color coded according to DIN 47100
  • Conductors stranded in layers with optimal lay-length
  • Common fleece wrapping
  • Tinned copper braided shielding, coverage approx. 85%
  • Special PUR outer jacket
  • Jacket color: Gray (RAL 7001)
Application
These feedback-cables are used in machinery and control construction as well as in plant engineering as these enable an excellent transmission of data and signals.
Particularly suitable in power drag chains, robotics and handling equipment. Additional conductors for the power supply to individual components are available. The braided shielding guarantees reliable signal transmission.
EMC = Electromagnetic Interference
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PUR outer jacket, low adhesion, notch resistant
  • The outer jacket on the basis of PUR is adhesion-free, flame retardant and resistant to hydrolysis and microbial attack
  • The high abrasion resistance and notch resistance meet the highest requirements
Note
  • For extreme applications extending beyond standard solutions we recommend that you request our questionnaire, which has been especially designed for energy supply systems.
  • Please observe applicable installation regulations for use in energy supply chains.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
