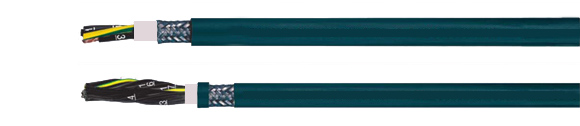

Control Cable: MULTISPEED® 500-C-TPE

Safety Against High Bending in Drag Chain Systems, Low Torsion, Halogen-Free, EMI Preferred Type

Sealcon, Inc, European & Domestic cable

Sealcon,  - MULTISPEED 500-C-TPE, Highly Flexible, Halogen-Free, Safety Against High Bending in Drag Chain Systems, Low Torsion, Halogen-Free, EMC (EMI Preferred Type), A Special Cables for Drag Chains, Control Cable for Drag Chain
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
24236 MULTISPEED 500-C-TPE 2X0.5 6.5 30.0 85.0 20
24237 MULTISPEED 500-C-TPE 3G0.5 6.7 36.0 99.0 20
24238 MULTISPEED 500-C-TPE 4G0.5 7.2 42.0 107.0 20
24239 MULTISPEED 500-C-TPE 5G0.5 7.6 48.0 140.0 20
24240 MULTISPEED 500-C-TPE 7G0.5 11.4 64.0 176.0 20
24241 MULTISPEED 500-C-TPE 10G0.5 11.4 80.0 204.0 20
24242 MULTISPEED 500-C-TPE 12G0.5 12.4 105.0 261.0 20
24243 MULTISPEED 500-C-TPE 18G0.5 14.7 137.0 360.0 20
24244 MULTISPEED 500-C-TPE 25G0.5 17.1 320.0 530.0 20
24245 MULTISPEED 500-C-TPE 2X0.75 7.0 40.0 97.0 18
24246 MULTISPEED 500-C-TPE 3G0.75 7.3 48.0 110.0 18
24247 MULTISPEED 500-C-TPE 4G0.75 7.8 55.0 139.0 18
24248 MULTISPEED 500-C-TPE 5G0.75 8.3 66.0 160.0 18
24249 MULTISPEED 500-C-TPE 7G0.75 12.7 85.0 219.0 18
24250 MULTISPEED 500-C-TPE 12G0.75 13.7 135.0 307.0 18
24251 MULTISPEED 500-C-TPE 18G0.75 17.1 190.0 490.0 18
24252 MULTISPEED 500-C-TPE 25G0.75 19.5 275.0 640.0 18
24253 MULTISPEED 500-C-TPE 2X1 7.3 50.0 115.0 17
24254 MULTISPEED 500-C-TPE 3G1 7.6 59.0 131.0 17
24255 MULTISPEED 500-C-TPE 4G1 8.1 70.0 160.0 17
24256 MULTISPEED 500-C-TPE 5G1 8.9 84.0 195.0 17
24257 MULTISPEED 500-C-TPE 7G1 13.6 106.0 247.0 17
24258 MULTISPEED 500-C-TPE 12G1 14.8 174.0 411.0 17
24259 MULTISPEED 500-C-TPE 18G1 18.4 240.0 547.0 17
24260 MULTISPEED 500-C-TPE 25G1 21.0 332.0 754.0 17
24261 MULTISPEED 500-C-TPE 3G1.5 8.4 75.0 160.0 16
24262 MULTISPEED 500-C-TPE 4G1.5 9.2 90.0 194.0 16
24263 MULTISPEED 500-C-TPE 5G1.5 10.2 108.0 220.0 16
24264 MULTISPEED 500-C-TPE 7G1.5 15.7 157.0 294.0 16
24265 MULTISPEED 500-C-TPE 12G1.5 17.4 240.0 490.0 16
24266 MULTISPEED 500-C-TPE 18G1.5 21.3 355.0 704.0 16
24267 MULTISPEED 500-C-TPE 25G1.5 24.3 448.0 930.0 16
24268 MULTISPEED 500-C-TPE 4G2.5 11.2 134.0 260.0 14
24269 MULTISPEED 500-C-TPE 5G2.5 12.2 175.0 330.0 14
24270 MULTISPEED 500-C-TPE 7G2.5 19.5 229.0 406.0 14
24271 MULTISPEED 500-C-TPE 12G2.5 21.7 390.0 990.0 14
24272 MULTISPEED 500-C-TPE 4G4 13.6 194.0 355.0 12
Technical Data
  • Special drag chain cables for high mechanical stress adapted to DIN VDE 0281 part 13 and E DIN VDE 0245
  • Temperature Range
    Flexing
    -30°C to +80°C (-22°F to +176°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 5x cable Ø
    Fixed Installation 3x cable Ø
  • Coupling Resistance
    Max. 250 Ohm x km
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS IPA
Cable Construction
  • Tinned copper, fine wire conductors with short pitch length
  • Special TPE conductor insulation
  • Black conductors with continuous white numbering
  • Green-yellow grounding (3 conductors and above)
  • Stranding:
    <7 conductors: conductors stranded in a layer with optimal lay-length around a filler as per construction
    > 7 conductors: conductors stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
  • Special-TPE inner jacket, extruded as filler with pressure, natural color
  • Shield of copper braid tinned, coverage 85% max., with optimal pitch
  • Fleece separator, ensures good dismantling ability
  • Special-TPE-O outer jacket, extruded as filler with pressure
  • Jacket color: Ocean Blue (RAL 5020)
  • TPE: The selected tinned copper wire conductor and tinned copper wire braid permit the installation in aggressive environments as well as hydrogen sulfide, ammonia and sulfur dioxide
Application

For permanent application in drag chains for long distances, high and low speeds. These cables are installed in dry, moist and wet rooms and in open air with free movement without tensile stress or forced movements. These robust and abrasion resistant special control cables are installed where the problems appear for the application in permanent stresses e.g. in energy drag chains. These cables are installed everywhere, where high requirements for the flexibility, abrasion, oxygen and chemical resistance are necessary.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Microbe - resistant - TPE
  • High property of alternating bending strength
  • High resistance to mechanical strain
  • Long life durability due to low friction-resistance
  • High tensile strength, abrasion and impact resistance at low temperatures
  • High continuous bending loads
  • Low adhesion
  • Halogen-free
  • Abrasion resistance
  • Tear resistance
  • High stability
  • Oil resistance
  • Better chemical resistance
  • UV and ozone resistance
  • Higher economical solution
  • Reduced Ø, results low weight of moving materials
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding;
    x = without green-yellow earth conductor (OZ).
  • Please note the clean room qualification when ordering
  • Unshielded type: MULTISPEED® 500-TPE
Cable Accessories
  • Coming Soon!
