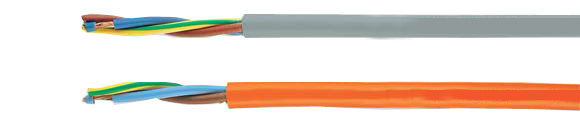

European Installation Cable: (H)03 Z1Z1-F

Control Cable, Halogen-Free, VDE Approved

Hi-Tech Controls, Inc, European & Domestic cable

(H)03 Z1Z1-F halogen-free, Installation Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Ø (mm) Copper Weight
kg/km
Weight
kg/km
AWG
3233_  (H)03 Z1Z1-F 2x0.5 5.0 9.6 39.0 20
3234_  (H)03 Z1Z1-F 3G0.5 5.3 14.4 46.0 20
3235_  (H)03 Z1Z1-F 4G0.5 5.8 19.2 56.0 20
3236_  (H)03 Z1Z1-F 2x0.75 5.4 14.4 47.0 18
3237_  (H)03 Z1Z1-F 3G0.75 5.7 21.6 55.0 18
3238_  (H)03 Z1Z1-F 4G0.75 6.3 29.0 69.0 18
Color Code
  • 0 = RAL 9005, black
  • 1 = RAL 9003, white
  • 2 = RAL 5015, blue
  • 3 = RAL 6018, green
  • 4 = RAL 8003, brown
  • 5 = RAL 1021, yellow
  • 6 = RAL 3000, red
  • 7 = RAL 2003, orange
  • 8 = RAL 4005, violet
  • 9 = RAL 7001/7032, gray
Please add the individual identification color code to the part numbers below. Further colors on request.
Technical Data European
  • flexible halogen-free control cable according E DIN VDE 0281 part 14 pr HD 21.14 S1
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Nominal Voltage
    U0/U 300/300 V
  • Test Voltage 2000 V
  • Breakdown Voltage min. 4000 V
  • Minimum Bending Radius
    7.5x cable Ø
  • Radiation Resistance
    up to 20x106 cJ/kg (up to 20 Mrad)
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, fine wire conductor bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5, HD 383
  • Insulating jacket thermoplastic compound, TI6 according to DIN VDE 0281 part 14, appendix A
  • Conductor identification according to DIN VDE 0293-308
  • Green-yellow grounding (3 conductors and above)
  • Conductor stranded with optimal lay-length
  • Outer jacket, thermoplastic compound, TM7 according DIN VDE 0281 part 14, appendix B
  • Jacket color by request
Application
These cables may be used when halogen-free, low smoke and corrosive gas properties are required in case of fire. For low mechanical demands in the house, kitchen and office, for small equipment such as, for example, office machines, radios, table and stranded lamps.
Not suitable for:
Cooking and heating equipment, use in high temperature areas (for example, in lighting equipment), outside use, industrial use or industrial electrical tools, cables with a nominal cross-section of 0.75 mm² comply with the same recommendations as for cable (H)05 Z1Z1-F.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Tests
    Tested for flame retardation to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Smoke density to VDE 0482 part 268-2
  • Halogen-free to HD 21.14 appendix C
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
