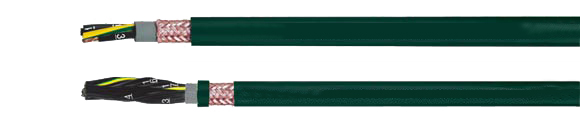

Control Cable: MULTISPEED® 500-C-PUR

Safety Against High Bending in Drag Chain / Track Cable Systems, Low Torsion, Halogen-Free, EMI Preferred Type

Sealcon, Inc, European & Domestic cable

Sealcon,  - MULTISPEED 500-C-PUR, Highly Flexible, Safety Against High Bending in Drag Chain Systems, Low Torsion, Halogen-Free, EMC(EMI Preferred Type), A Special Cables for Drag Chains, Control Cable for Drag Chain, Control Cable
AWG Selection
20
20
18
18
17
17
16
16
14
14
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
24156 MULTISPEED 500-C-PUR 2X0.5   6.4 30.0 90.0 20
24157 MULTISPEED 500-C-PUR 3G0.5 6.7 36.0 104.0 20
24158 MULTISPEED 500-C-PUR 4G0.5 7.2 42.0 118.0 20
24159 MULTISPEED 500-C-PUR 5G0.5 7.6 48.0 148.0 20
24160 MULTISPEED 500-C-PUR 7G0.5 11.4 64.0 184.0 20
24161 MULTISPEED 500-C-PUR 9G0.5 11.4 80.0 219.0 20
24162 MULTISPEED 500-C-PUR 12G0.5 12.4 105.0 276.0 20
24163 MULTISPEED 500-C-PUR 18G0.5 14.7 137.0 378.0 20
24164 MULTISPEED 500-C-PUR 25G0.5 17.1 210.0 547.0 20
24165 MULTISPEED 500-C-PUR 2X0.75   6.8 40.0 100.0 18
24166 MULTISPEED 500-C-PUR 3G0.75 7.3 48.0 117.0 18
24167 MULTISPEED 500-C-PUR 4G0.75 7.8 55.0 143.0 18
24168 MULTISPEED 500-C-PUR 5G0.75 8.3 66.0 167.0 18
24169 MULTISPEED 500-C-PUR 7G0.75 12.7 85.0 229.0 18
24170 MULTISPEED 500-C-PUR 12G0.75 13.7 135.0 319.0 18
24171 MULTISPEED 500-C-PUR 18G0.75 17.1 190.0 492.0 18
24172 MULTISPEED 500-C-PUR 25G0.75 19.5 275.0 659.0 18
24173 MULTISPEED 500-C-PUR 2X1   7.1 50.0 120.0 17
24174 MULTISPEED 500-C-PUR 3G1 7.6 59.0 140.0 17
24175 MULTISPEED 500-C-PUR 4G1 8.1 70.0 167.0 17
24176 MULTISPEED 500-C-PUR 5G1 8.9 84.0 201.0 17
24177 MULTISPEED 500-C-PUR 7G1 13.6 106.0 256.0 17
24178 MULTISPEED 500-C-PUR 12G1 14.6 174.0 417.0 17
24179 MULTISPEED 500-C-PUR 18G1 18.4 240.0 557.0 17
24180 MULTISPEED 500-C-PUR 25G1 21.0 332.0 766.0 17
24181 MULTISPEED 500-C-PUR 3G1.5   8.4 75.0 170.0 16
24182 MULTISPEED 500-C-PUR 4G1.5 9.1 90.0 204.0 16
24183 MULTISPEED 500-C-PUR 5G1.5 10.2 108.0 236.0 16
24184 MULTISPEED 500-C-PUR 7G1.5 15.7 157.0 309.0 16
24185 MULTISPEED 500-C-PUR 12G1.5 17.4 240.0 509.0 16
24186 MULTISPEED 500-C-PUR 18G1.5 21.3 355.0 718.0 16
24187 MULTISPEED 500-C-PUR 25G1.5 24.3 448.0 944.0 16
24188 MULTISPEED 500-C-PUR 4G2.5   11.2 134.0 280.0 14
24189 MULTISPEED 500-C-PUR 5G2.5 12.2 175.0 346.0 14
24190 MULTISPEED 500-C-PUR 7G2.5 14.0 229.0 410.0 14
Technical Data
  • Special drag chain cables for high mechanical stress adapted to DIN VDE 0281 part 13, DIN VDE 0282 part 10 and E DIN VDE 0245
  • Temperature Range
    Flexing
    -30°C to +105°C (-22°F to +221°F)
    Fixed Installation
    -50°C to +105°C (-90°F to +221°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Coupling Resistant
    Max. 250 Ohm/km
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS
Cable Construction
  • Bare copper, fine wire conductors with short pitch length
  • Special TPE conductor insulation
  • Black conductors with continuous white numbering
  • Green-yellow grounding (3 conductors and above)
  • Stranding:
    > 7 conductors: conductors stranded in a layer with optimal lay-length around a filler as per construction
    = 7 conductors: conductors stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
  • Special-TPE inner jacket, extruded as filler with pressure, gray RAL 7001
  • Shield of Cu braid bare, coverage 85% max., with optimal pitch
  • Fleece separator ensures good dismantling ability
  • Special-PUR outer jacket
  • Jacket Color: Pine Green (RAL 6028)
Application

For permanent application in drag chains for long distances and high and low speeds. These cables are installed in dry, moist and wet rooms and in open air with free movement without tensile stress or forced movements. These robust and abrasion resistant special control cables are installed where the problems appear for the application in permanent stresses e.g. in energy drag chains, industry robotics, production lines, automatic control systems and permanent movable machinery parts for multi-shift operation. These cables are installed everywhere, where high requirements for flexibility, abrasion, oxygen and chemical resistance are necessary.
For applications which go beyond standard solutions, we recommend for our specially developed inquiry sheet for energy guiding systems.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • PUR-jacket flame retardant according to VDE 0482-221-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Low adhesion
  • High property of alternating bending strength
  • High resistance to mechanical strain
  • Long life durability due to low friction-resistance
  • High tensile strength, abrasion and impact resistant at low temperatures
  • Tear resistance
  • High stability and oil resistance
  • Better chemical resistance
  • UV and ozone resistance
  • Higher economical solution
  • Reduced Ø results low weight of moving materials
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • Unshielded type: MULTISPEED® 500-PUR
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
