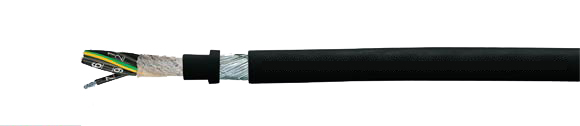

Control Cable: KOMPOSPEED® JZ-HF-500-C

Halogen-Free, Microbes Resistant, Cables for Drag Chains / Track Cables, Copper Shielded, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European  , KOMOSPEED JZ-HF-500-C, Halogen-Free, Microbes Resistant, Copper Shielded, Cables for Drag Chain, EMI Preferred Type
AWG Selection
20
20
18
18
17
17
16
16
14
14
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
26347 KOMPOSPEED OZ-HF-500-C 2X0.5   6.9 47.0 90.0 20
26348 KOMPOSPEED JZ-HF-500-C 3G0.5 7.2 52.0 101.0 20
26349 KOMPOSPEED JZ-HF-500-C 4G0.5 7.8 55.0 119.0 20
26350 KOMPOSPEED JZ-HF-500-C 5G0.5 8.3 65.0 121.0 20
26351 KOMPOSPEED JZ-HF-500-C 6G0.5 9.1 70.0 144.0 20
26352 KOMPOSPEED JZ-HF-500-C 7G0.5 9.6 84.0 169.0 20
26353 KOMPOSPEED JZ-HF-500-C 12G0.5 11.3 117.0 250.0 20
26354 KOMPOSPEED JZ-HF-500-C 18G0.5 13.5 157.0 321.0 20
26355 KOMPOSPEED JZ-HF-500-C 25X0.5 15.8 227.0 445.0 20
26356 KOMPOSPEED OZ-HF-500-C 2X0.75  7.3 53.0 106.0 18
26357 KOMPOSPEED JZ-HF-500-C 3G0.75 7.8 62.0 116.0 18
26358 KOMPOSPEED JZ-HF-500-C 4G0.75 8.3 77.0 140.0 18
26359 KOMPOSPEED JZ-HF-500-C 5G0.75 9.1 86.0 148.0 18
26360 KOMPOSPEED JZ-HF-500-C 7G0.75 10.2 107.0 198.0 18
26361 KOMPOSPEED JZ-HF-500-C 12G0.75 12.6 156.0 294.0 18
26362 KOMPOSPEED JZ-HF-500-C 18G0.75 14.5 235.0 391.0 18
26363 KOMPOSPEED JZ-HF-500-C 25G0.75 17.3 313.0 562.0 18
26364 KOMPOSPEED OZ-HF-500-C 2X1   7.8 60.0 110.0 17
26365 KOMPOSPEED JZ-HF-500-C 3G1 8.1 70.0 131.0 17
26366 KOMPOSPEED JZ-HF-500-C 4G1 8.7 86.0 171.0 17
26367 KOMPOSPEED JZ-HF-500-C 5G1 9.5 99.0 179.0 17
26368 KOMPOSPEED JZ-HF-500-C 7G1 10.9 125.0 229.0 17
26369 KOMPOSPEED JZ-HF-500-C 12G1 13.1 186.0 348.0 17
26370 KOMPOSPEED JZ-HF-500-C 18G1 15.4 280.0 498.0 17
26371 KOMPOSPEED JZ-HF-500-C 25G1 18.6 378.0 669.0 17
26372 KOMPOSPEED OZ-HF-500-C 2X1.5   8.3 79.0 141.0 16
26373 KOMPOSPEED JZ-HF-500-C 3G1.5 8.7 94.0 162.0 16
26374 KOMPOSPEED JZ-HF-500-C 4G1.5 9.5 113.0 210.0 16
26375 KOMPOSPEED JZ-HF-500-C 5G1.5 10.2 129.0 233.0 16
26376 KOMPOSPEED JZ-HF-500-C 7G1.5 12.2 170.0 317.0 16
26377 KOMPOSPEED JZ-HF-500-C 12G1.5 14.5 280.0 471.0 16
26378 KOMPOSPEED JZ-HF-500-C 18G1.5 16.9 395.0 664.0 16
26379 KOMPOSPEED JZ-HF-500-C 25G1.5 20.6 533.0 914.0 16
26380 KOMPOSPEED OZ-HF-500-C 2X2.5   9.8 96.0 182.0 14
26381 KOMPOSPEED JZ-HF-500-C 3G2.5 10.5 150.0 264.0 14
26382 KOMPOSPEED JZ-HF-500-C 4G2.5 11.5 174.0 350.0 14
26383 KOMPOSPEED JZ-HF-500-C 5G2.5 12.6 200.0 394.0 14
26384 KOMPOSPEED JZ-HF-500-C 7G2.5 14.8 240.0 450.0 14
26385 KOMPOSPEED JZ-HF-500-C 12G2.5 18.0 410.0 712.0 14
Technical Data
  • Shielded microbes resistant, halogen-free special control cable adapted to DIN VDE 0281 part 13 and E DIN VDE 0245
  • Temperature Range
    Flexing
    -30°C to +90°C (-22°F to +194°F)
    Fixed Installation
    -40°C to +100°C (-40°F to +212°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage
    Conductor/conductor 4000 V
    Conductor/shielding 2000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
  • Coupling Resistance
    Max. 250 Ohm/km
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS
Cable Construction
  • Tinned copper, extra fine wire conductors bunch stranded to DIN VDE 0295 cl. 6, BS 6360 cl. 6 and IEC 60228 cl. 6
  • Special thermoplastic polymer conductor insulation, for better sliding abilities
  • Black conductors with continuous white numbering according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal selected lay-length
  • Conductor wrapping with fleece
  • Inner-jacket to special thermoplastic polymer
  • Shield of tinned copper braid, coverage approx. 85%
  • Fleece separator, ensures good dismantling ability
  • Outer jacket, special thermoplastic polymer
  • Color: Black (RAL 9005)
Application

European KOMPOSPEED® JZ-HF-500-C control cable is significant due to its resistance to microbes. This cable is especially installed in rubbish, sewage-treatment plants, composting works, animal stalls and greenhouses. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist or wet rooms as well as outside. The high flexibility of these cable types makes it easy and quick to install.
This shielded cable is ideal for use in data signal transmission, free from interference for measurement and control engineering technology.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.), we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables.
EMI = Electromagnetic Interference
To optimize the EMI features, we recommend a large round contact of the cooper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Resistant to UV-radiation, oxygen, ozone, microbes, hydrofluoric acid, hydrochloric acid and diluted sulfuric acid
  • Low adhesion
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
