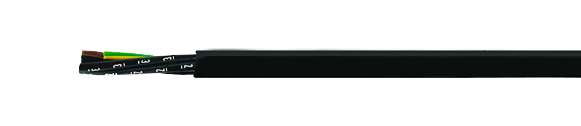

Control Cable: MEGAFLEX® 600-C

Halogen-Free, Flame Retardant, Oil Resistant, UV Resistant, Flexible

Sealcon, Inc, European & Domestic cable

Sealcon,  - MULTIFLEX 512�-PUR, Special Cables for Drag Chains, Halogen Free, Control Cable for Drag Chain, Control Cable
AWG Selection
20 20 18 18 16 17 16 16 14 14 12 12 10 10 10 8
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
15217 MEGAFLEX 600-C 2X0.5  6.9 35.0 46.0 20
15218 MEGAFLEX 600-C 3G0.5 7.3 42.0 56.0 20
15219 MEGAFLEX 600-C 3X0.5 7.3 42.0 56.0 20
15220 MEGAFLEX 600-C 4G0.5 8.1 47.0 62.0 20
15221 MEGAFLEX 600-C 4X0.5 8.1 47.0 62.0 20
15222 MEGAFLEX 600-C 5G0.5 8.7 56.0 75.0 20
15223 MEGAFLEX 600-C 5X0.5 8.7 56.0 75.0 20
15224 MEGAFLEX 600-C 7G0.5 10.3 69.0 98.0 20
15225 MEGAFLEX 600-C 10G0.5 12.1 94.0 135.0 20
15226 MEGAFLEX 600-C 12G0.5 12.7 108.0 158. 20
15227 MEGAFLEX 600-C 18G0.5 14.9 145.0 216.0 20
15228 MEGAFLEX 600-C 20G0.5 15.8 172.0 240.0 20
15229 MEGAFLEX 600-C 25G0.5 17.7 240.0 315.0 20
15230 MEGAFLEX 600-C 2X0.75   7.3 40.0 60.0 18
15231 MEGAFLEX 600-C 3G0.75 7.7 52.0 68.0 18
15232 MEGAFLEX 600-C 3X0.75 7.7 52.0 68.0 18
15233 MEGAFLEX 600-C 4G0.75 8.5 60.0 78.0 18
15234 MEGAFLEX 600-C 4X0.75 8.5 60.0 78.0 18
15235 MEGAFLEX 600-C 5G0.75 9.3 71.0 95.0 18
15236 MEGAFLEX 600-C 5X0.75 9.3 71.0

95.0

18
15237 MEGAFLEX 600-C 7G0.75 10.7 91.0 130.0 18
15238 MEGAFLEX 600-C 7X0.75 10.7 91.0 130.0 18
15239 MEGAFLEX 600-C 12G0.75 13.1 142.0 203.0 18
15240 MEGAFLEX 600-C 18G0.75 16.2 212.0 290.0 18
15241 MEGAFLEX 600-C 20G0.75 17.2 238.0 320.0 18
15242 MEGAFLEX 600-C 25G0.75 19.5 281.1 4130 18
15243 MEGAFLEX 600-C 2X1  8.0 50.0 66.0 17
15244 MEGAFLEX 600-C 3G1 8.6 60.0 80.0 17
15245 MEGAFLEX 600-C 3X1 8.6 60.0 80.0 17
15246 MEGAFLEX 600-C 4G1 9.4 71.0 100.0 17
15247 MEGAFLEX 600-C 4G1 9.4 71.0 100.0 17
15248 MEGAFLEX 600-C 5G1 10.4 88.0 130.0 17
15249 MEGAFLEX 600-C 10G1 14.9 150.0 232.0 17
15250 MEGAFLEX 600-C 12G1 14.5

184.0

260.0 17
15251 MEGAFLEX 600-C 18G1 17.9 260.0 382.0 17
15252 MEGAFLEX 600-C 20G1 19.0 317.0 440.0 17
15253 MEGAFLEX 600-C 25G1 21.7 349.0 540.0 17
15254 MEGAFLEX 600-C 2X1.5  9.0 63.0 88.0 16
15255 MEGAFLEX 600-C 3G1.5 9.7 80.0 100.0 16
15256 MEGAFLEX 600-C 3X1.5 9.7 80.0 100.0 16
15257 MEGAFLEX 600-C 4G1.5 10.5 97.0 125.0 16
15258 MEGAFLEX 600-C 5G1.5 11.6 119.0 158.0 16
15259 MEGAFLEX 600-C 7G1.5 13.9 147.0 210.0 16
15260 MEGAFLEX 600-C 10G1.5 16.7 193.0 315.0 16
15261 MEGAFLEX 600-C 12G1.5 17.2 267.0 340.0 16
15262 MEGAFLEX 600-C 18G1.5 20.5 374.0 480.0 16
15263 MEGAFLEX 600-C 20G1.5 21.7 396.0 545.0 16
15264 MEGAFLEX 600-C 25G1.5 24.7 526.0 702.0 16
15265 MEGAFLEX 600-C 2X2.5  10.2 96.0 132.0 14
15266 MEGAFLEX 600-C 3G2.5 10.7 144.0 168.0 14
15267 MEGAFLEX 600-C 45G2.5 11.9 148.0 195.0 14
15268 MEGAFLEX 600-C 5G2.5 13.2 181.0 256.0 14
15269 MEGAFLEX 600-C 7G2.5 15.8 255.0 345.0 14
15270 MEGAFLEX 600-C 10G2.5 17.0 340.0 482.0 14
15271 MEGAFLEX 600-C 12G2.5 19.2 441.0 572.0 14
15272 MEGAFLEX 600-C 3g4  13.1 174.0 251.0 12
15723 MEGAFLEX 600-C 4G4 14.6 230.0 305.0 12
15274 MEGAFLEX 600-C 5G4 16.1 273.0 388.0 12
15275 MEGAFLEX 600-C 7G4 17.6 316.0 504.0 12
15276 MEGAFLEX 600-C 3g6  14.9 240.0 351.0 10
15277 MEGAFLEX 600-C 4G6 16.4 305.0 464.0 10
15278 MEGAFLEX 600-C 5G6 18.1 439.0 546.0 10
15279 MEGAFLEX 600-C 7G6 20.1 505.0 670.0 10
15280 MEGAFLEX 600-C 3G10  16.6 350.0 574.0 8
15281 MEGAFLEX 600-C 4G10 18.1 535.0 785.0 8
15282 MEGAFLEX 600-C 5G10 20.6 592.0 914.0 8
15283 MEGAFLEX 600-C 7G10 22.6 810.0 1308.0 8
Technical Data
  • Halogen-free flexible control cable to UL-Style 20234, UL-Std. 758
  • Temperature Range
    Flexing
    -30°C to +80°C (-22°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 0.6/1 kV
  • Test Voltage 4000 V
  • Minimum Bending Radius
    Flexing approx. 10x cable Ø
    Fixed Installation approx 4x cable Ø
  • Flexible
    Alternate bending test according to DIN VDE 0281-2
  • Coupling resistance
    max. 250 Ohm/km
Approvals
RoHSUL CSA CE RoHS
Cable Construction
  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Core insulation of halogen-free special polymer
  • Black conductors with continuous white numbering to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Core stranded in layers with optimal selected lay length
  • Separating Foil
  • Tinned copper braided shielding coverage approx. 85%
  • Outer jacket, halogen-free special polymer
  • Outer jacket color black (RAL 9005)
  • The materials used in manufacture are cadmium-free, contain no silicone, and are free from substances harmful to the wetting properties of lacquers
Application

For fixed installation or flexible application, with occasional not permanently recurring free movement without forced motion
and without tensile stress, for high mechanical strain.
As a measuring and control cable in tool machinery, conveyor belts and production lines, plant engineering, climate engineering,
in foundries and steel mills. Especially suited for wind power plant, computer equipment, public buildings - such as airports and
train stations - where high damages in case of fire should be avoided.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Halogen-Free
  • Highly flame-retardant
  • Resistant to oils and greases
  • Resistant to UV and weathering
  • Hydrolysis resistant
  • Flexible, abrasion and wear-resistant
  • Ozone resistant
  • Recyclable
  • Flame test to DIN VDE 0482 part 266-2-4 / BS 4066 part 3 / EN 50266-2 / IEC 60332-3-24 (previously DIN VDE 0472 part 804 test method C)
  • Self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN/ IEC 60332-1 (previously DIN VDE 0472 part 804 test method B)
  • Corrosiveness of combustion gases according to NF X 10-702
  • Halogen-free according to VDE 0482 part 267 / EN 50267-2-1 / IEC 60754-1 (equivalent DIN VDE 0472 part 815)
  • Smoke density according to DIN VDE 0482 part 1034-1+2, DIN EN 61034-1+2 / IEC 61034-1+2, BS 7622 part 1+2 (previously DIN VDE 0472 part 816)
  • Oil-resistant to VDE 0473 part 811-2-1
  • Hydrolysis-resistant to DIN EN 61234-1
  • Ozone-resistant to DIN EN 60811-2-1 / DIN VDE 0281-2
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • Shielded anaglog type: MEGAFLEX® 600
Cable Accessories
  • Coming Soon!
