M5 (10-32 UNF) thread, or 4 mm O.D. cartridge (5/32" O.D. tube connect)
Bulkhead, or single panel mount
32°F - 175°F, (dry air necessary down to -4°F)
Filtered air (25 micron or less recommended)
Not required; otherwise, only oil compatible with Buna-N, (3° - 10° E), (ISOVG 32 grade; 32 centistrokes)
2 - 10 bar (30 - 145 psi)
6 bar (87 psi)
*Qn = 60 NL/min. (2.12 SCFM)
*Qn flowrate (SCFM) determined with a supply pressure of 6 bar, (87 psi), and with a pressure drop of 1 bar, (14.5 psi).

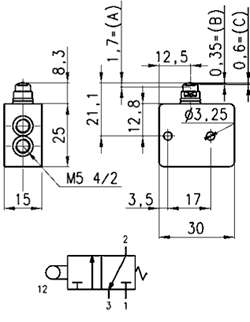

**Dimensions are in millimeters
