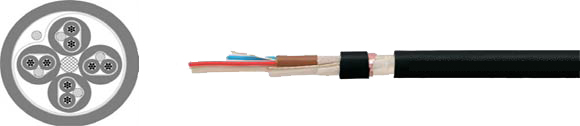

AES / EBU Digital Audio Cables, Multi-paired, Pairs with Foil Shielding and Overall Foil Shielding
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part-No.
Structure
Outer Diameter
ca. mm
Copper Weight
kg / km
Weight
ca. kg / km
400025
2 x 2 x 0.22
9.9
15.4
85
400026
2 x 2 x 0.22
11.8
29.0
119
400027
2 x 2 x 0.22
14.9
42.0
195
400028
2 x 2 x 0.22
16.1
55.0
232
400029
2 x 2 x 0.22
19.1
81.0
330
Type:
Digital Audio Cables
Helukabel
Cable
Structure
2 x 2 x 0.22
Conductor Material:
Copper, Tinned
Conductor Insulation:
Cell PE
Conductor Colors:
Red, Blue
Stranding Element:
2 conductors with 1 ground conductor
Drain Wire:
Yes
Jacket Material:
PVC
Cable External Diameter:
Approx. 9.9 mm
Jacket Color:
Black
Technical Data
Weight:
Approx. 85.0 kg/km
Min. Bending Radius for Laying:
100 mm
Operating Temperature Range Min.:
-25°C to -13°F
Operating Temperature Range Max.:
+70°C to +158°F
Copper Weight:
15.4 kg/km
Electrical
Characteristics
Characteristic Impedance:
110.0
Ohm/km
Conductor Resistance Max.:
86 Ohm x km
Insulation Resistance Min.:
1.0 GOhm x km
Norms
Halogen-Free acc. to EN 50267-2-3
Approvals
Type:
Digital Audio Cables
Helukabel
Cable
Structure
2 x 2 x 0.22
Conductor Material:
Copper, Tinned
Conductor Insulation:
Cell PE
Conductor Colors:
Red, Blue
Stranding Element:
2 conductors with 1 ground conductor
Drain Wire:
Yes
Jacket Material:
PVC
Cable External Diameter:
Approx. 9.9 mm
Jacket Color:
Black
Application
The multipaired, digital HELUSOUND® AES/EBU audio cable is characterized by its shielding in pairs, its element jackets and by the additional overall jacket. This cable is suitable for the transmission of digital audio signals.
