Helukabel Audio Cable: Light & Power Cables

HeluSound
DMX-POWER

Hi-Tech Controls, Inc, HELUKABEL wires and cables

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Hi-Tech Controls, Helukabel
Helukabel Part Number: 400081
Type: DMX Cable Helukabel

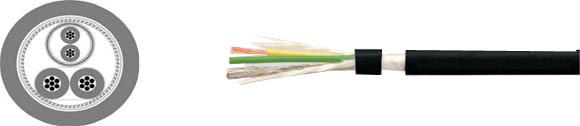

Cable Structure (1 x 2 x 0.24) + 2 x 1.0
Conductor Material: Copper, bare
Conductor Insulation: Foam-skin-PE
Stranding Element: Double conductor
Jacket Material: PVC
Cable External Diameter: Approx. 7.4 mm
Jacket Color: Black
Technical Data
Weight: Approx. 74.0 kg/km
Copper Weight: 35.0 kg/km
Electrical Characteristics
Characteristic Impedance: 110.0 Ohm/km
Approvals
RoHS
Type: DMX Cable Helukabel
Cable Structure (1 x 2 x 0.24) + 2 x 1.0
Conductor Material: Copper, bare
Conductor Insulation: Foam-skin-PE
Stranding Element: Double conductor
Jacket Material: PVC
Cable External Diameter: Approx. 7.4 mm
Jacket Color: Black
Application
The hybrid DMX Power cable is used in the professional DMX light controller. It transmits power for the light and control signals for the movement. The cable is compact, flexible and easy to process.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
